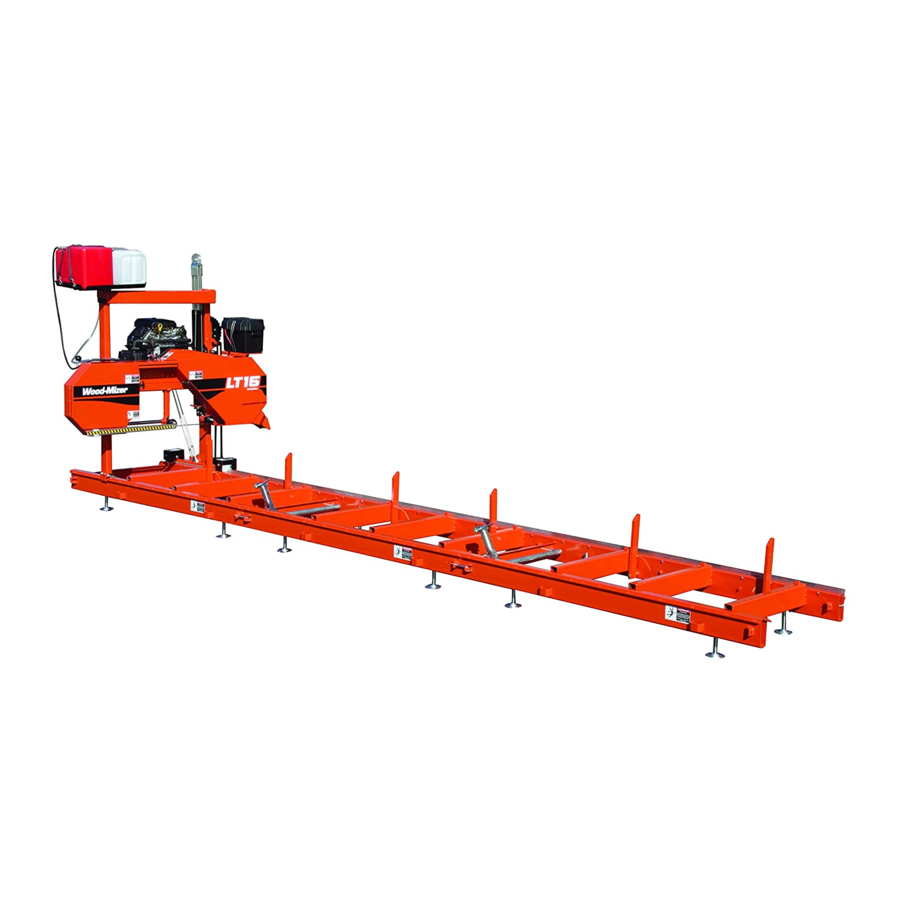

D10 Engine
Safety, Operation, Maintenance
& Parts Manual
LT15
rev. E1.00 - E8.13
Safety is our #1 concern! Read and understand
all safety information and instructions before oper-
ating, setting up or maintaining this machine.
April 2010
Form #1098

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wood-mizer LT15

Summary of Contents for Wood-mizer LT15

  • Page 1 D10 Engine Safety, Operation, Maintenance & Parts Manual LT15 rev. E1.00 - E8.13 Safety is our #1 concern! Read and understand all safety information and instructions before oper- ating, setting up or maintaining this machine. April 2010 Form #1098...
  • Page 2 Printed in the United States of America, all rights reserved. No part of this manual may be reproduced in any form by any photographic, electronic, mechanical or other means or used in any information storage and retrieval system without written permission from Wood-Mizer 8180 West 10th Street Indianapolis, Indiana 46214...

  • Page 3: Table Of Contents

    SECTION 2 OPERATION Starting The Engine................2-1 SECTION 3 MAINTENANCE Safety......................3-1 Cooling System ..................3-2 Air Filter & Pre-Cleaner.................3-2 Fuel Filter ....................3-2 RPM Adjustments ..................3-2 SECTION 4 REPLACEMENT PARTS Engine Assembly..................4-1 LT15 Rev. E1.00+ Throttle/Clutch Assembly ..............4-3 INDEX Table of Contents WMdoc072619...

  • Page 4: About This Manual

    SECTION 1 ABOUT THIS MANUAL This manual is provided as a supplement to the equipment manufacturer’s manuals. This manual provides information specific to the use of this equipment on the Wood-Mizer ® sawmill. Refer to the sawmill operator’s manual and manufacturer's manual before attempting to operate this equipment.

  • Page 5: Operation

    Operation Starting The Engine SECTION 2 OPERATION Starting The Engine DANGER! Ensure the blade is disengaged and all persons are out of the path of the blade before starting. Failure to do so will result in death or serious injury. DANGER! Operate your engine only in well ventilated areas.

  • Page 6: Maintenance

    Maintenance Safety SECTION 3 MAINTENANCE Refer to the manufacturer’s manual for maintenance intervals and procedures unless oth- erwise instructed in this manual. Follow the manufacturer’s recommendations for dusty conditions. IMPORTANT! This manual only provides information about additional procedures or procedures to be performed at different time intervals than found in the manufacturer's manuals.

  • Page 7: Cooling System

    Maintenance Cooling System Cooling System Wash the engine or brush off sawdust and debris every 50 hours of operation. Clean the grass screen, cooling fins, and external surfaces. Remove any dust, dirt or oil. See engine manual for further instructions. Air Filter &...
  • Page 8 Maintenance RPM Adjustments See Table 3-1. Engine High End RPM Low End RPM 3600 1000 TABLE 3-1 Before checking the RPM, make sure belt and brake strap tensions are correct (See Saw- mill Maintenance). Also check oil, fuel, and coolant levels. Make sure the throttle cable does not affect the engine RPM when the clutch handle is disengaged.

  • Page 9: Replacement Parts

    Replacement Parts Engine Assembly SECTION 4 REPLACEMENT PARTS Engine Assembly LT15 Rev. E1.00+ 150102C 19 20 DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. COVER, ENGINE P12393 ENGINE ASSEMBLY, 10 HP YANMAR W/CLUTCH 034630 Engine, D10 Yanmar...
  • Page 10 Starter, D10 Yanmar Engine 034032 Throttle and Clutch Parts (See Section 4.2) Hose, Oil Drain P10082 Cap, Oil Drain Hose P04332 Plate, LT15 Engine Guard 016493 Sheave, BK55QT 016512 Key, 1/4” X 1 11/16” S04124 Bushing, QT X 1 016513 BELT, BX87 DRIVE...

  • Page 11: Throttle/Clutch Assembly

    BOLT, 1/4-20 X 1 HEX HEAD GR5 F05005-101 NUT, 1/4-20 KEPS F05010-9 CABLE ASSEMBLY, LT15D10 THROTTLE 034809 KNOB, 5/8-11 BALL P04211 HANDLE, LT15 CLUTCH 016487 SCREW, 3/8-16 X 3/8SOCKET HEAD CUP PT SET F05007-68 ACTUATOR WELDMENT, THROTTLE LT15D&G 034815 Replacement Parts D1001doc072619...
  • Page 12 PIVOT WELDMENT, CLUTCH/BRAKE 034608 BUSHING, 1 X 1 1/4 X 3/4 FLG BRONZE P737 BRAKE/CLUTCH ASSEMBLY, LT15 065874 Arm Weldment, Clutch/Brake LT15 065873 Bolt, 3/8-16 x 2 Hex Head Gr5 F05007-124 Nut, 3/8-16 Hex Nylon Lock F05010-10 Block, LT15 Brake...

  • Page 13: Index

    INDEX maintenance air cooling system fuel filter RPM adjustments parts list engine assembly throttle/clutch starting Index D1001doc072619...
