- Page 1 Wood-Mizer 1996 Surge Brake Trailer Operator’s Manual Form #756...
-
Page 2: Table Of Contents
PARTS LISTS Trailer Hitch Assembly ..................... 4-2 Trailer Axle Assembly (Surge Brake)............... 4-4 Outrigger Assembly (Long) ..................4-6 Outrigger Assembly (LT25L/LT40 /LT40HD Rear) ..........4-8 Outrigger Assembly (Short Front)................4-10 Outrigger Assembly (Short Rear)................4-12 Log Loading Ramps (LT25/LT30/LT40)..............4-14 Trailer Lights ...................... -
Page 3: Safety & General Information
The word regarding the ownership, operation and towing DANGER refers to hazards that can cause of your Wood-Mizer sawmill. All Wood-Mizer death or serious, irreversible personal injury. mill owners are encouraged to become thor- The word WARNING suggests a safety hazard oughly familiar with these applicable laws and that can cause personal injury. -
Page 5: Surge Brake Hitch Operation
Surge Brake Hitch Operation SECTION 2 SURGE BRAKE HITCH OPERATION Pull the mill behind the towing vehicle and DANGER! Do not use eyebolts for safety chain place the hitch over a 2" ball on your vehicle. hook-up. Safety chains should be hooked to The hitch ball should be solid (not two-piece) bumper of vehicle so that each chain would pull with a rating of at least 3500 pounds (1588 kg). -
Page 7: Surge Brake Hitch Maintenance
Surge Brake Hitch Maintenance SECTION 3 SURGE BRAKE HITCH MAINTENANCE Clean and repack the trailer axle wheel bearings with lithium grease every 12 months or 12,000 miles (19,308 km), whichever comes first. Make sure that the trailer tires are correctly inflated to the pressure shown on the tire. -
Page 9: Parts Lists
Parts Lists SECTION 4 PARTS LISTS Parts Lists SB96doc102898... -
Page 10: Trailer Hitch Assembly

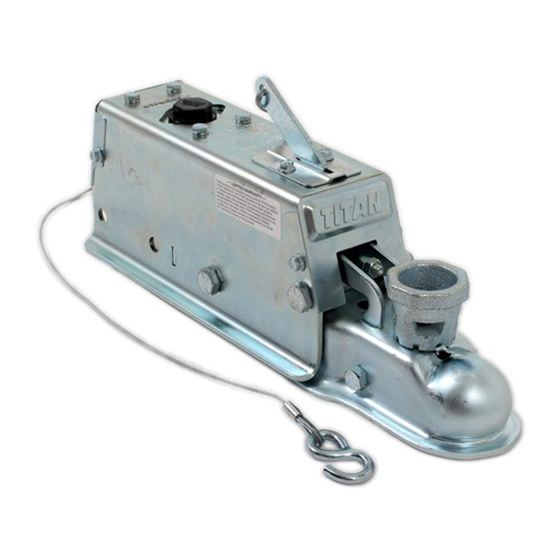

Parts Lists Trailer Hitch Assembly Trailer Hitch Assembly DESCRIPTION Indicates Parts Available In Assemblies Only) PART # QTY. HITCH ASSEMBLY,SURGE BRAKE TRAILER A10405 Hitch Mount (W/O Spacer Blocks), Surge Brake Trailer W09828 Actuator, Dico Surge Brake Hitch P09840 Bolt, Surge Brake Latch P10119 Bracket, Surge Bracke Latch (Lever Hitch) P12816... - Page 11 Parts Lists Trailer Hitch Assembly FIG. 4-1 Parts Lists SB96doc102898...
-
Page 12: Trailer Axle Assembly (Surge Brake)
Parts Lists Trailer Axle Assembly (Surge Brake) Trailer Axle Assembly (Surge Brake) DESCRIPTION Indicates Parts Available In Assemblies Only) PART # QTY. AXLE FRAME ASSEMBLY, SURGE BRAKE A09802 Frame, Trailer Axle W09751 Axle, 3500 Lb With Springs And Surge Brakes P09801 Spring, 2000 Lb. - Page 13 Parts Lists Trailer Axle Assembly (Surge Brake) SM0083C FIG. 4-2 Parts Lists SB96doc102898...
-
Page 14: Outrigger Assembly (Long)
Parts Lists Outrigger Assembly (Long) Outrigger Assembly (Long) DESCRIPTION Indicates Parts Available In Assemblies Only) PART # QTY. OUTRIGGER ASSEMBLY, LONG 012997 Guide, Long Outrigger Guide 012996 Leg, Outrigger W07537 Cap, Outrigger Leg P09926 Spring, Outrigger Pin P04282 Washer, 9/16" SAE Flat F05011-8 Pin Kit, Outrigger Pull A12232... - Page 15 Parts Lists Outrigger Assembly (Long) SM0136B FIG. 4-3 Parts Lists SB96doc102898...
-
Page 16: Outrigger Assembly (Lt25L/Lt40 /Lt40Hd Rear)
Parts Lists Outrigger Assembly (LT25L/LT40 /LT40HD Rear) Outrigger Assembly (LT25L/LT40 /LT40HD Rear) DESCRIPTION Indicates Parts Available In Assemblies Only) PART # QTY. OUTRIGGER ASSEMBLY, LT40 REAR A12083 Guide, Short Rear Outrigger Guide W12082 Leg, Outrigger W07537 Cap, Outrigger Leg P09926... - Page 17 Parts Lists Outrigger Assembly (LT25L/LT40 /LT40HD Rear) 3H0132 FIG. 4-4 Parts Lists SB96doc102898...
-
Page 18: Outrigger Assembly (Short Front)
Parts Lists Outrigger Assembly (Short Front) Outrigger Assembly (Short Front) DESCRIPTION Indicates Parts Available In Assemblies Only) PART # QTY. OUTRIGGER ASSEMBLY, SHORT FRONT A04278 Guide, Short Front Outrigger Guide W09012 Leg, Outrigger W07537 Cap, Outrigger Leg P09926 Spring, Outrigger Pin P04282 Washer, 9/16"... - Page 19 Parts Lists Outrigger Assembly (Short Front) SM0087B FIG. 4-5 Parts Lists SB96doc102898 4-11...
-
Page 20: Outrigger Assembly (Short Rear)
Parts Lists Outrigger Assembly (Short Rear) Outrigger Assembly (Short Rear) DESCRIPTION Indicates Parts Available In Assemblies Only) PART # QTY. OUTRIGGER ASSEMBLY, SHORT REAR A09475 Guide, Short Rear Outrigger Guide W09474 Leg, Outrigger W07537 Cap, Outrigger Leg P09926 Spring, Outrigger Pin P04282 Washer, 9/16"... - Page 21 Parts Lists Outrigger Assembly (Short Rear) SM0088B FIG. 4-6 Parts Lists SB96doc102898 4-13...
-
Page 22: Log Loading Ramps (Lt25/Lt30/Lt40)
Parts Lists Log Loading Ramps (LT25/LT30/LT40) Log Loading Ramps (LT25/LT30/LT40) DESCRIPTION Indicates Parts Available In Assemblies Only) PART # QTY. RAMP KIT, LOG LOADING WITH RETAINERS K09466 Ramp, Log Loading W09014 Retainer Kit, Log Ramp K09810 Retainer, Log Ramp W09413 Spring, Log Ram Retainer P09335 Washer, 5/8"... -
Page 23: Trailer Lights
Parts Lists Trailer Lights Trailer Lights DESCRIPTION Indicates Parts Available In Assemblies Only) PART # QTY. PLUG, TRAILER LIGHT MALE P04159 PLUG, TRAILER LIGHT FEMALE P04983 LIGHT ASSEMBLY, TRAILER TAIL P04294 Lens, Grote Tail Light #90012 P12509 Bulb, #1157 Trailer Light P04481 Clip, Grote Tail Light Retainer P12510... - Page 24 Parts Lists Outrigger Pin Hardware (3/4” Dia.) Outrigger Pin Hardware (3/4” Dia.) DESCRIPTION Indicates Parts Available In Assemblies Only) PART # QTY. SPRING, OUTRIGGER PIN 016145 WASHER, 3/4" SAE FLAT F05011-62 PIN KIT, 3/4” OUTRIGGER PULL 016148 Pin, 3/4” Outrigger Pull 016147 Pin, 5/16"...
