ACPL-337J Reference Manual
Fuji Electric PIM Module EP2 Package Evaluation Board
Chapter 2: Description of the Evaluation Board
2.1 Board Description

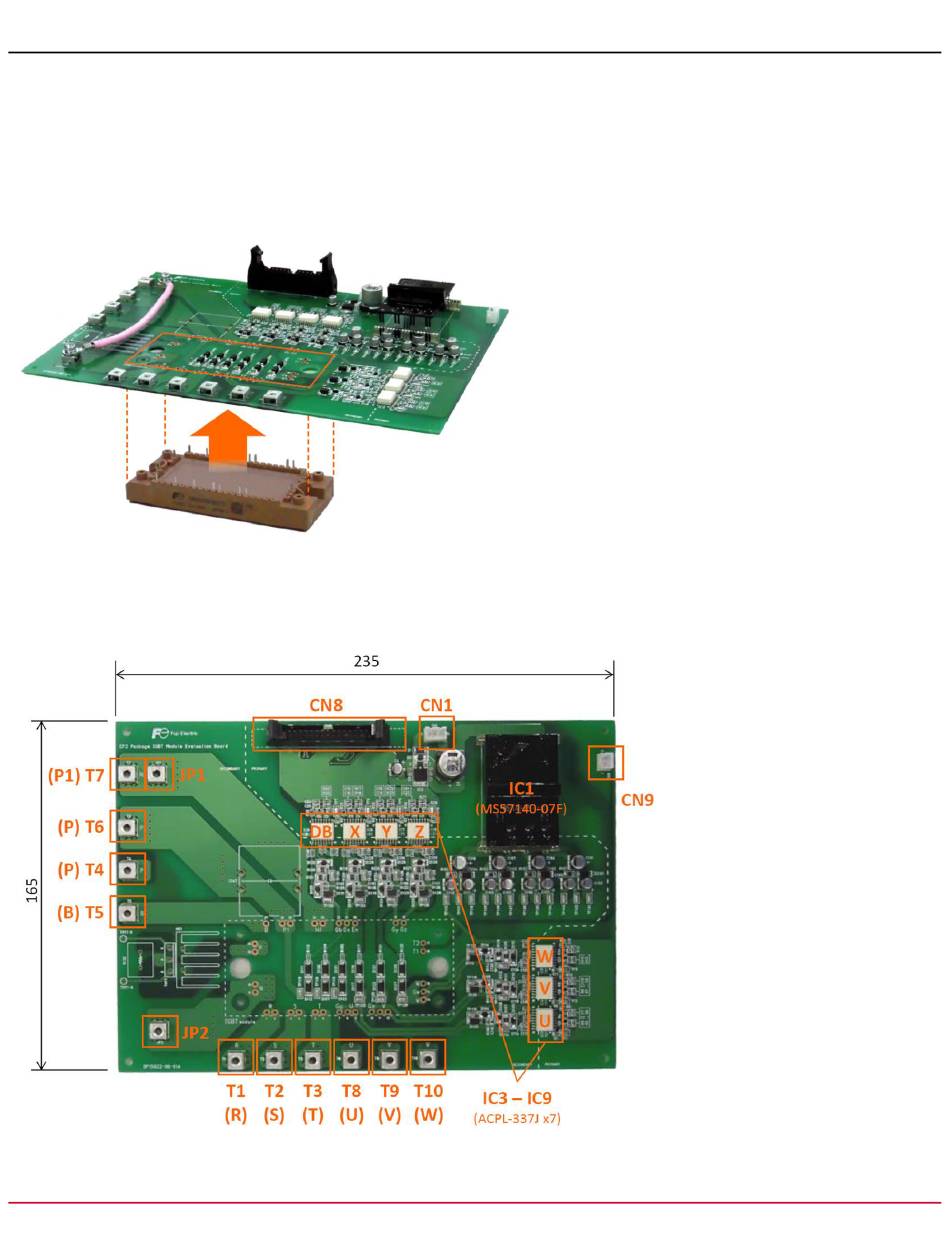

Figure 3: Evaluation Board for M719 "M" Type Module
Figure 4
and
Figure 5
show the layout of the evaluation board and the main circuit diagram.
Figure 4: Evaluation Board Layout
Broadcom
ACPL-337J-EP2-RM100
6
