ACPL-337J Reference Manual
Fuji Electric PIM Module EP2 Package Evaluation Board
Chapter 3: Evaluation Board Test and Result
3.1 Switching Waveform

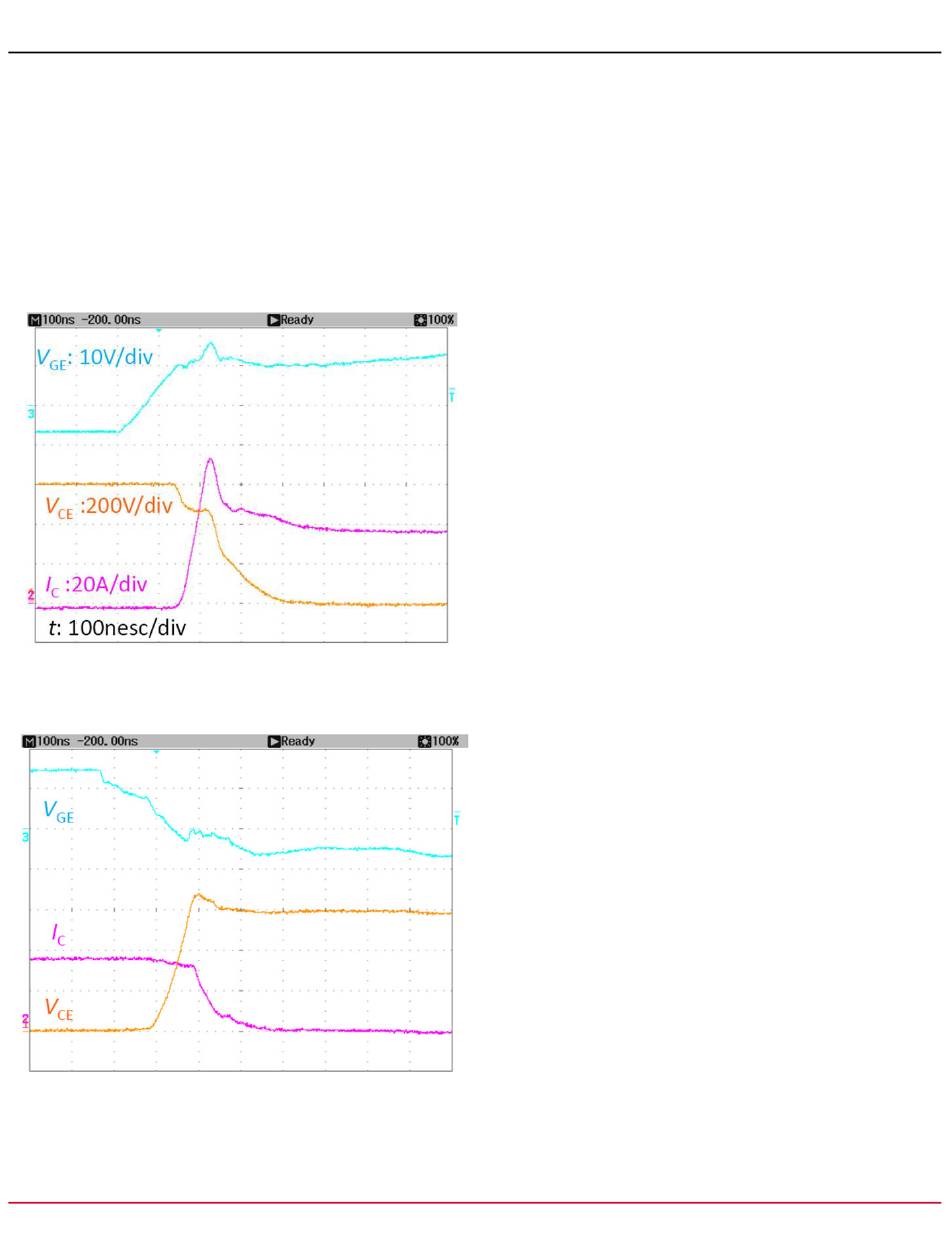

The following figures show the turn on, turn off, and reverse recovery switching waveforms of the evaluation board with PIM
7MBR35XMA120-50. The PIM was tested with 600V DC bus voltage with collector and reverse recovery current at 35A.
Figure 9: Turn On Switching Waveforms
Figure 10: Turn Off Switching Waveforms
Broadcom
ACPL-337J-EP2-RM100
11
