Installation with a Tiller
H
C
B
A

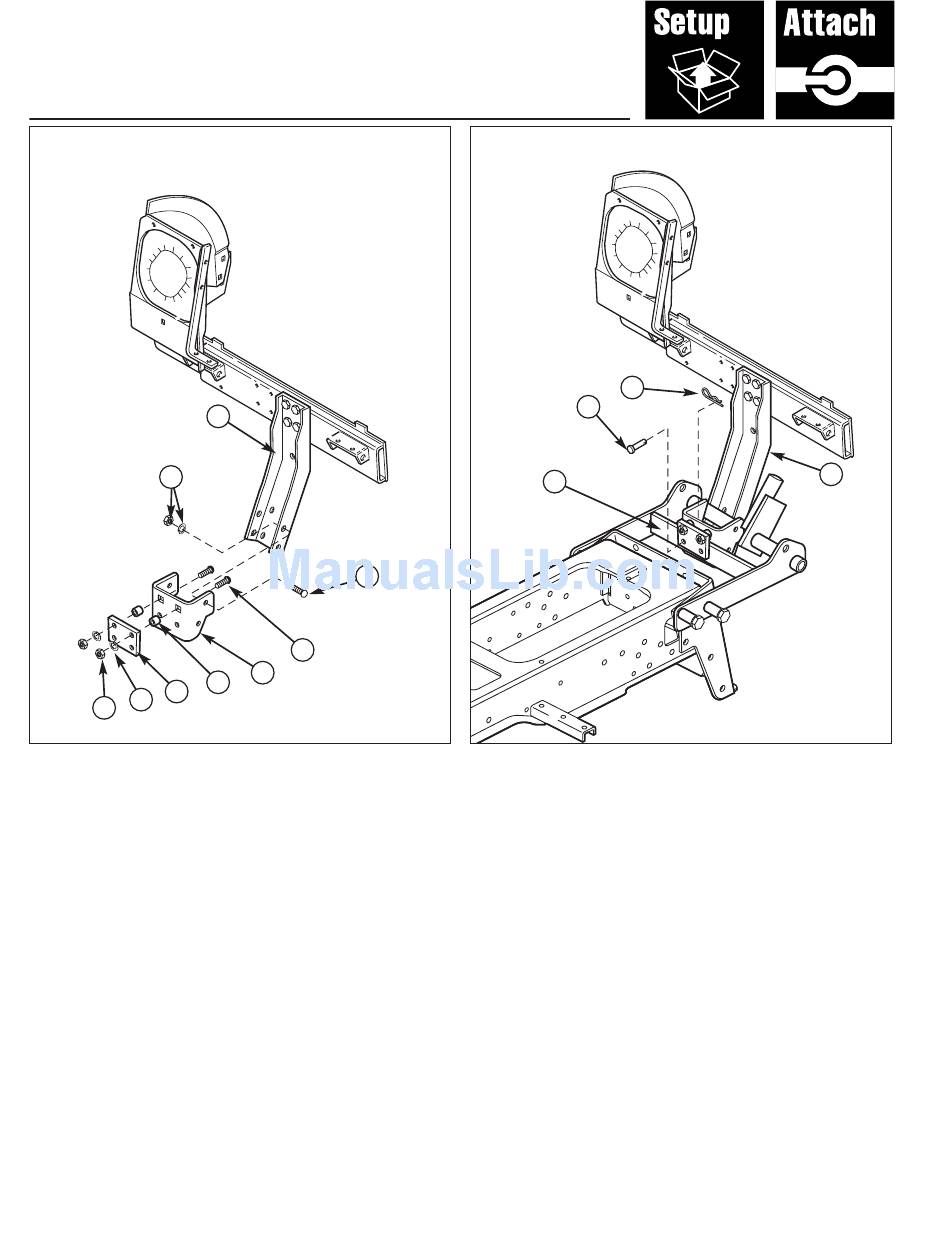

Figure 12. Initial Setup (Prestige Shown)
A. Nuts, 5/16-18
B. Lockwashers, 5/16
C. Plate
D. Spacers
E. Lower Support
F. Carriage Bolts,
5/16-18 x 1-1/4
INSTALLATION WITH A TILLER
Initial Setup
Note: Use the short upright bracket (refer to Figure 4).
1. Assemble the lower support (E, Figure 12), spacers
(D), and plate (C) as shown).
2. Bolt the lower plate assembly (E) to the upright sup-
port (I) using four 3/8-16 x 3/4 carriage bolts (G),
lockwashers, and 3/8-16 nuts (H).
I
G
F
E
D
G. Carriage Bolts,
3/8-16 x 3/4
H. Nuts & Lockwashers,
3/8
I. Upright Support
C
B
A
Figure 13. Installation (Prestige Shown)
A. Tiller Hitch
B. Clevis Pin
Installation & Removal
1. Rest the support assembly (D, Figure 13) on the tiller
hitch (A) cross-bar.
2. Secure the catcher to the tiller hitch using two clevis
pins (B) and hair pin clips (C).
3. See "Normal Removal & Installation" for remaining
procedures.
8
D
C. Hair Pin Clip
D. Support Assembly
