Catcher Assembly - All Models; Assemble Supports & Hitch - Simplicity 1694693 Operator's Manual

Use this
upright with
Broadmoor /
1600 / 2600 /
LT Series

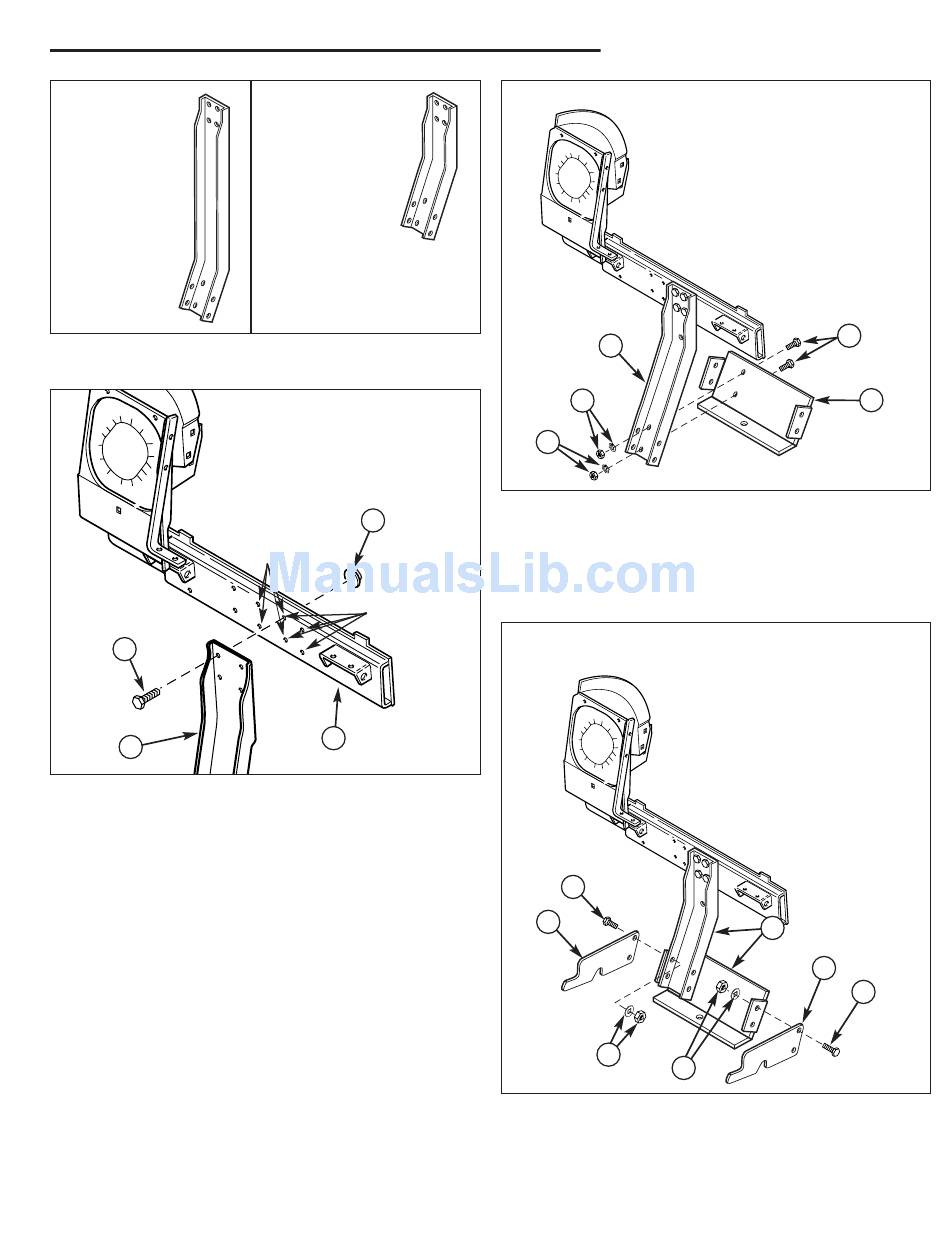

Figure 4. Upright Identification
B
A
Figure 5. Assemble Catcher Frame
A. Upright Support
B. 3/8-16 x 7/8 Capscrew

CATCHER ASSEMBLY - ALL MODELS

Assemble Supports and Hitch
1. Refer to Figure 4 to select the proper upright support
for your application.
2. Bolt the upright support (A, Figure 5) to the horizontal
support (C). Secure with 3/8-16 x 7/8 capscrews (B)
and 3/8-16 whizlock nuts (D).
3. Bolt the lower support plate (D, Figure 6) to the
upright support (B) using two 3/8-16 x 1 capscrews
(C), lockwashers, and 3/8-16 nuts (A).
4. Install the hitch side plates (B, Figure 7) and secure
with four 3/8-16 x 1-1/4 capscrews (C), lockwashers,
and 3/8-16 nuts (A).
Use this
upright with
Prestige /
1800 / 2800 /
YT &
Conquest /
1700 / 2700 /
GT Series
Conquest &
Broadmoor
D
Mounting
Holes
Prestige
Mounting
Holes
C
C. Horizontal Support
D. 3/8-16 Whizlock Nut
Initial Assembly & Installation
B
A
A
Figure 6. Assemble Catcher Frame (Prestige Shown)
A. 3/8-16 Nut & Lockwasher C. 3/8-16 x 1 Capscrews
B. Upright Support Assy.
C
B
A
Figure 7. Assemble Catcher Frame (Prestige Shown)
A. 3/8-16 Nuts &
Lockwashers
B. Side Plates
5
C
D. Lower Support
D
B
A
C. 3/8-16 x 1-1/4 Capscrews
D. Support Assembly
D
C
