ATTACHMENT
OPERATOR'S
MANUAL

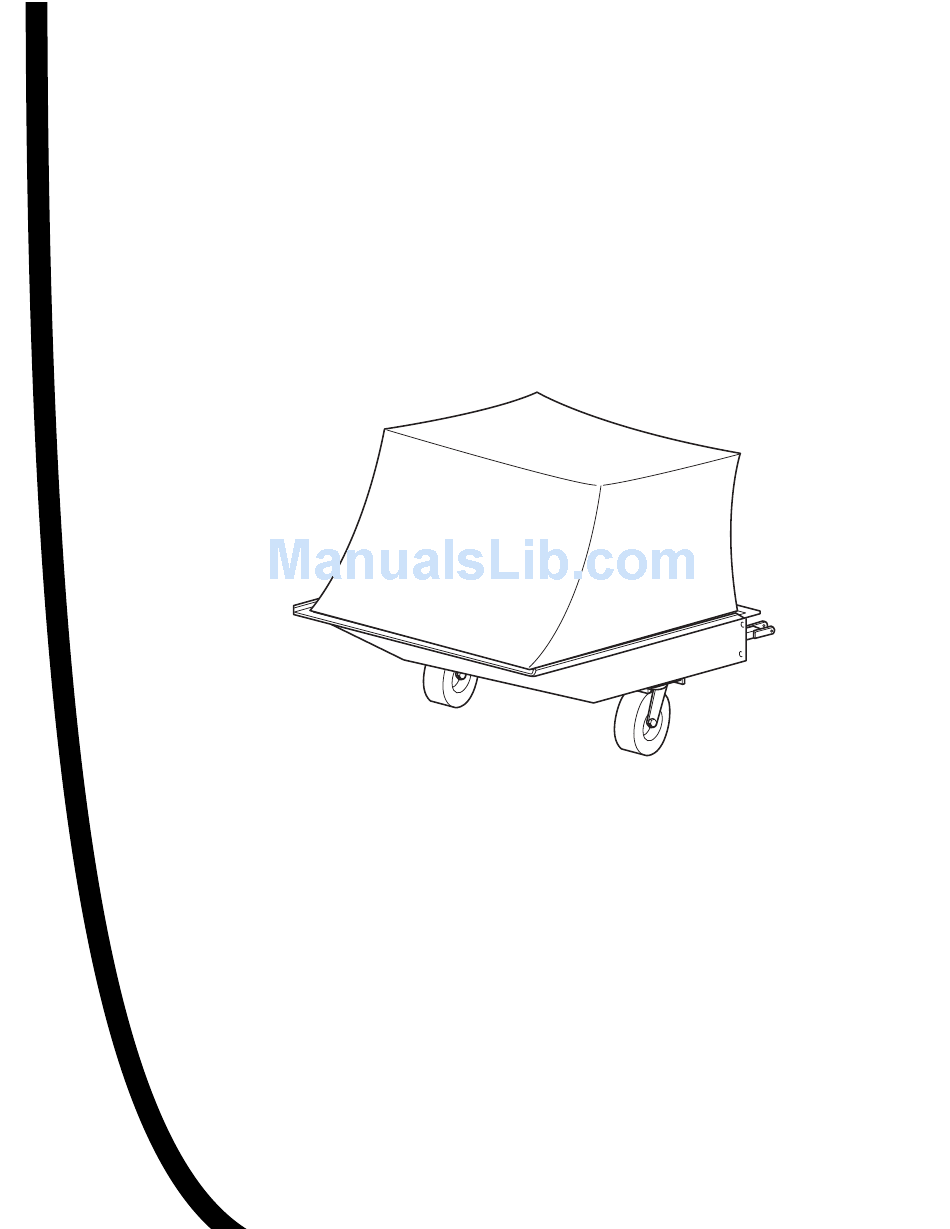

Wide Body Cart
Grass Catcher
Wide Body Cart Grass Catcher
Mfg. No.
Description
Wide Body Cart Grass Catcher (Multiple Applications)
1694542
1726564
Revision 01
Rev. Date 07/2004
TP 100-4002-01-AT-UV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1694542 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simplicity 1694542

Summary of Contents for Simplicity 1694542

  • Page 1 ATTACHMENT OPERATOR’S MANUAL Wide Body Cart Grass Catcher Wide Body Cart Grass Catcher Mfg. No. Description Wide Body Cart Grass Catcher (Multiple Applications) 1694542 1726564 Revision 01 Rev. Date 07/2004 TP 100-4002-01-AT-UV...

  • Page 2: Table Of Contents

    Contents, Accessories, & Specs Table of Contents...1 Recommended Accessories...1 Specifications ...1 Safety Rules & Information General Warnings...2 Safety Decals ...2 General Operating Information Mowing with the Catcher ...3 Before Operation ...3 Recommended Accessories...3 After Operation ...3 Storing the Grass Catcher ...3 Operation...4 Maintenance ...4 Exploded View Diagrams...

  • Page 3: Safety Rules & Information

    Safety Rules & Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The trian- in text signifies important cautions or warnings which must be followed.

  • Page 4: Mowing With The Catcher

    MOWING WITH THE CATCHER Always operate with throttle at full speed when mowing. Grass should be cut often, and not too short. If grass is too long or lush it may be necessary to keep ground speed to a minimum or to cut only half the width of the mower to prevent clogging.

  • Page 5: Operation

    Operation OPERATION Dumping Grass and Leaves 1. Back the tractor to the desired place for unloading. Shut the tractor's engine of before getting off the trac- tor's seat. WARNING Before opening the cover for any reason, engage the parking brake, shut off the engine, remove the key, and wait for all moving parts to stop.
  • Page 6 Notes...

  • Page 7: Exploded View Diagrams

    Exploded View Diagrams Figure 3. Wide Body Dump Cart 6 20 6 19 Qty. Description COVER PATCH, With Velcro NUT, Hex, 1/4-20 SLEEVE CLAMP TUBE, Support DECAL, Max Capacity SLEEVE, Connecting NUT, Hex, 1/4-20 LOCKWASHER, 1/4 LIFT HANDLE NUT, Hex, Jam, 5/16-18 NUT, Hex, 5/16-18 COTTER CIRCLE WASHER, Compression...

  • Page 8: Reversible Frame Orientation

    Reversible Frame Orientation For Left Side discharge locate the handle (A, Figure 4) on the right side of the cart. Use the U-bracket (B) with the hole located 1-1/2” from the edge. Rotate the frame (C) so that the offset is on the left hand side. For Right Side discharge locate the handle (A, Figure 5) on the left side of the cart.

  • Page 9: Initial Assembly & Installation

    Initial Assembly & Installation Figure 6. Wheel Assembly (RH Dishcarge Shown) A. Wheel Assembly B. Frame CART ASSEMBLY 1. Determine if you have a right side or left side dis- charge. Refer to Figures 4 & 5. 2. Install the wheel assemblies (A, Figure 6) to the frame (B).

  • Page 10: Cover Assembly

    Figure 10. Install Support Tube A. Support Tube 6. Install support tube (A, Figure 10) inside the box. Align each end of the support tube with the two holes at the front corner side of the box. Place one 5/16-18 x 1-1/2 hex bolt with a 5/16 flat washer and plastic spacer through the top, outside hole of the box and the support tube.
  • Page 11 Initial Assembly & Installation Figure 15. Install Connecting Sleeve A. Connecting Sleeve B. Support Tube C. Sleeve Clamp D. Truss Head Screw, 1/4-20 x 1/2 E. Nyloc Nut 6. Install the sleeve clamp (C, Figure 15) to the connect- ing sleeve (A) with 1/4-20 x 1/2 slotted truss head screw (D) and nyloc nut (E).

  • Page 12: Normal Installation & Removal Installation

    NORMAL INSTALLATION & REMOVAL Installation 1. Insert the upper end of the clear tube into the cart sleeve. Slide the flex hose (C, Figure 20) over the turbo (A) and secure with the large hose clamp (B). The hose should overlap the turbo discharge by 2”- 3”.

  • Page 13: Hardware Identification & Torque Specifications

    Hardware Identification & Torque Specifications Common Hardware Types Hex Head Capscrew Carriage Bolt Standard Hardware Sizing When a washer or nut is identified as 1/2”, this is the Nominal size, meaning the inside diameter is 1/2 inch; if a second number is present it represent the threads per inch When bolt or capscrew is identified as 1/2 - 16 x 2”, this means the Nominal size, or body diameter is 1/2 inch;...
  • Page 14 M A N U F A C T U R I N G , I N C . 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.simplicitymfg.com © Copyright 2004 Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
