Initial Assembly &
Installation
INSTALL MOUNTING PLATES -
BROADMOOR / 1600 / 2600 / LT
SERIES
Install Plates & Spacers
1. Mount the side brackets (B, Figure 1) to both sides of
the frame using the holes shown. Secure with one
3/8-16 x 1 capscrew (C) and 3/8-16 nylock nut (A)
per side.
2. Install the rear spacers (C, Figure 2). Secure with
two 1/2-13 x 2-1/2 capscrews (E), washers (D), spac-
ers (C), and 1/2-13 nylock nuts (A) per side.
INSTALL MOUNTING SPACERS -
CONQUEST / 1700 / 2700 / YT &
PRESTIGE / 1800 / 2800 / GT SERIES
NOTE: If installing this catcher on a unit equipped with a
rear tiller, refer to the "Installation with a Tiller" section for
special installation instructions.

Install Spacers

1. Install the rear spacers (C, Figure 3). Secure with
two 1/2-13 x 2-1/2 capscrews (E), washers (D), spac-
ers (C), and 1/2-13 nylock nuts (A) per side.

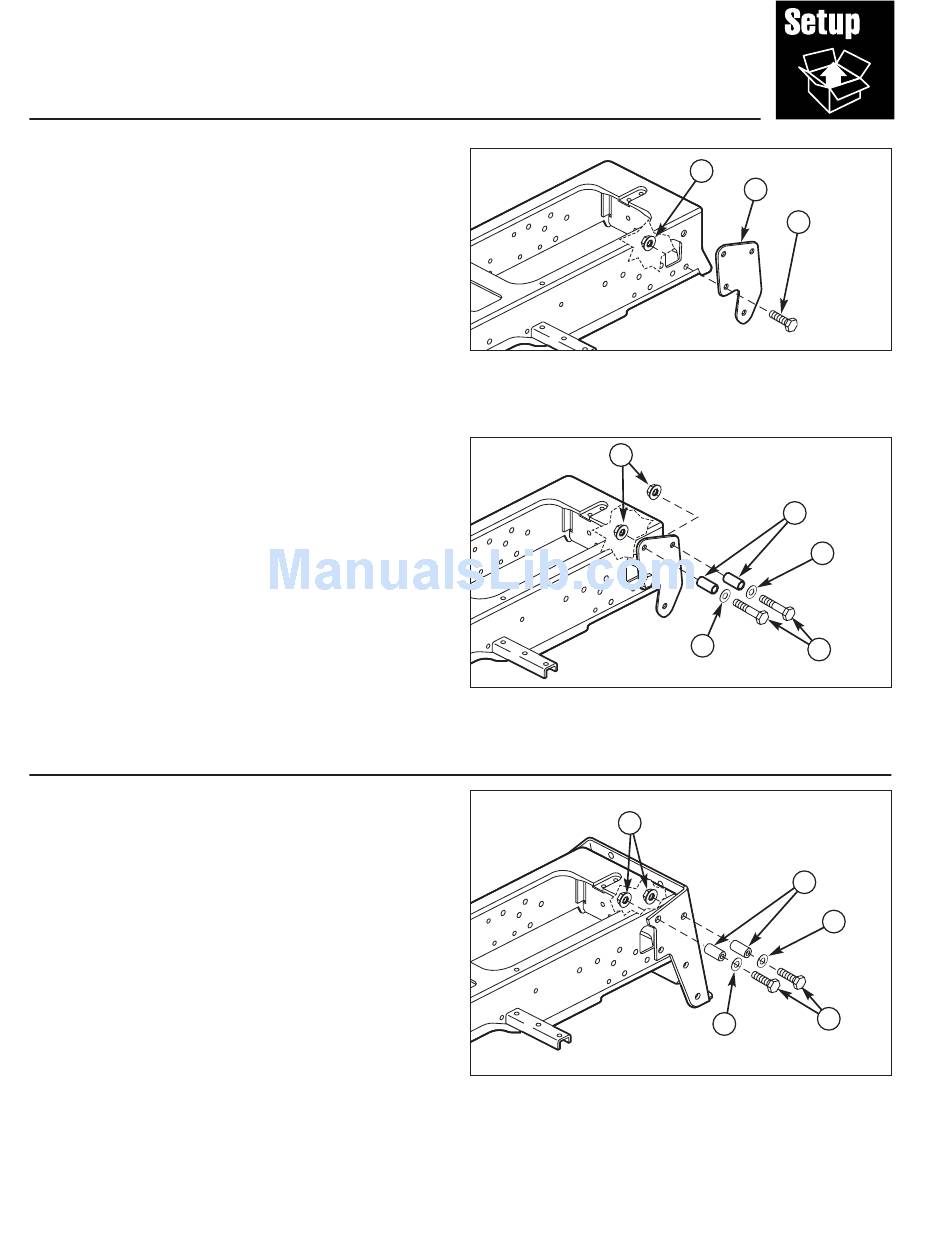

Figure 1. Install Side Brackets
A. Nylock Nut, 3/8-16
B. Side Bracket
A
Figure 2. Install Rear Spacers
A. Nylock Nuts, 1/2-13
B. 1/2-13 x 2-1/2 Capscrew
A
Figure 3. Install Rear Spacers
A. Nylock Nuts, 1/2-13
B. 1/2-13 x 2-1/2 Capscrew D. 1/2" Washers
4
A
B
C
C. 3/8-16 x 1
C
D
D
B
C. Spacers
D. 1/2" Washers
C
D
B
D
C. Spacers
