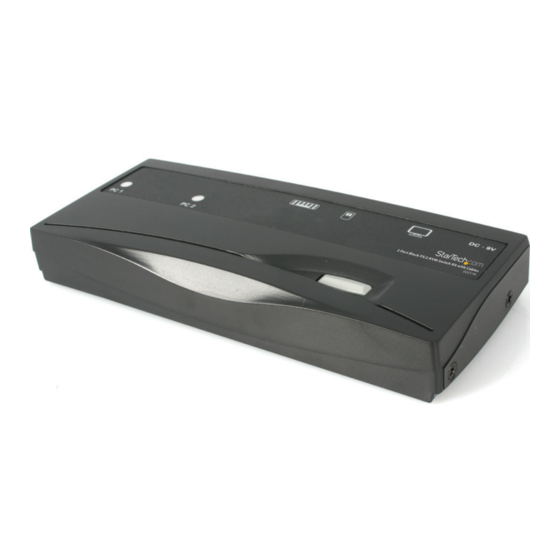

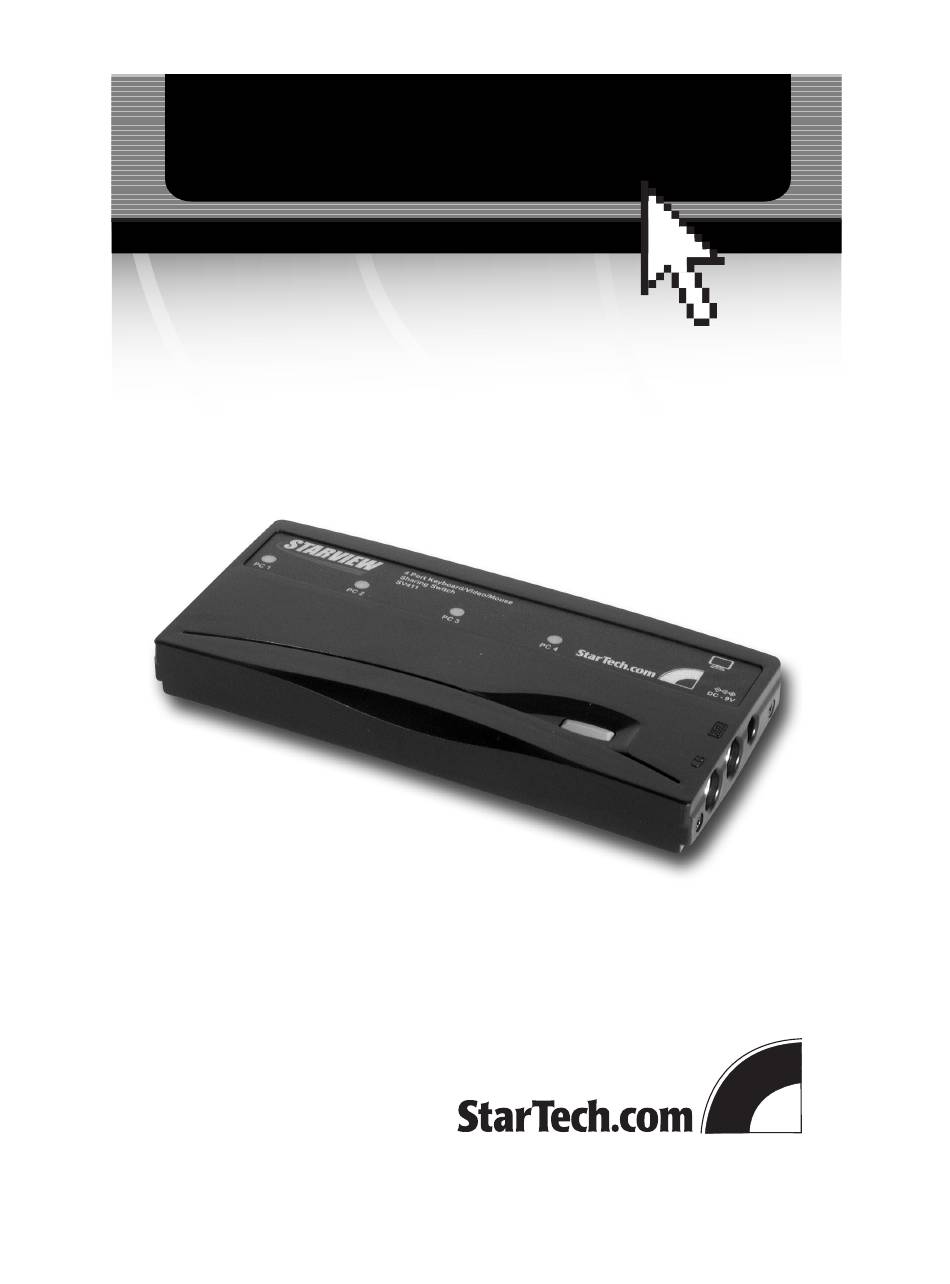

- Page 1 KVM SWITCH Keyboard/video/mouse sharing switch SV211 SV211K SV411 Instruction Guide SV411K * SV411 shown * Actual product may vary from photo The Professionals’ Source For Hard-to-Find Computer Parts...
- Page 2 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Table of Contents Introduction ............2 Installation . -
Page 4: Introduction
PCs without resetting the switch. With the SV211K and SV411K, StarTech.com’s 3-in-1 KVM cables are provided. The SV211 and SV411 allow you to purchase a 3-in-1 cable in the length of your choice. Features •... -
Page 5: Installation
2. Plug your PS/2 keyboard into the purple mini-DIN-6 port on the switch. On the SV211 and SV211K, the keyboard port is located on the back of the switch. On the SV411 and SV411K, the keyboard port is located on the right side of the switch. -
Page 6: Using Your Kvm Switch
Using Your KVM Switch The LEDs on the switch indicate which PC is active. You can scroll between PCs by either pressing the push-button on the top of the switch or by using a hotkey command. A hotkey command is a short sequence of keystrokes beginning with two left Ctrl keystrokes followed by another keystroke. -
Page 7: Troubleshooting
Troubleshooting If you are experiencing any difficulties, first make sure that all your cables are connected to their proper ports and are firmly seated. My keyboard or mouse does not work. The keyboard or mouse may not have initialized properly. Press and hold the push button for three seconds to re-initialize the keyboard and mouse. -
Page 8: Technical Specifications
Console keyboard connector PS/2 female Console mouse connector PS/2 female Console monitor connector HD-DB-15 female Dimensions (L x W x H) SV211, SV211K: 2.76 x 6.30 x 0.83in. (70x160x21mm) SV411, SV411K: 3.39 x 7.28 x 0.87in. (86x185x22mm) Certifications FCC, CE, VCCI... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability to StarTech.com Ltd. (or its officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of related to the use of the product exceed the actual price paid for the product. - Page 10 Revised: February 19, 2003...
