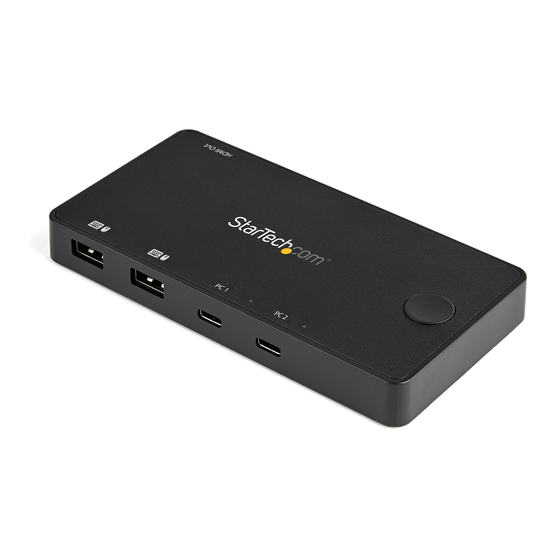

StarTech.com SV211HDUC Quick Start Manual

2 Port USB-C Alt-Mode Compact KVM Switch
Product Diagram (SV211HDUC)
Front
1
Back
Top
4
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
3
5
Component
Used to connect either a Mouse and/or
•
1 USB-A Ports (x 2) Keyboard to the Compact KVM Switch. For
use with the connected Computers.
Used to connect up to two Computers to the
•
Compact KVM Switch.
2
USB-C Ports (x 2)
Compatible with Thunderbolt™ 3 or USB-C with
•
DP-Alt Mode.
Used to connect a Display Device to the
•
3 HDMI Port
Compact KVM Switch.
Used to switch between the two connected
•
4
Input Switch Button
Computers.
Solid Blue: Indicates which connected
•
5 LED Indicators (x 2)
computer is currently selected.
Requirements
For the latest requirements, please visit
Keyboard x 1
•
Mouse x 1
•
Monitor x 1
•
Computers (requires compatibility with either Thunderbolt 3 or USB-C with DP-Alt
•
Mode) x 2
Installation
Connect a Mouse and/or Keyboard to the USB-A Ports on the Compact KVM
1.
Switch.
Connect an HDMI Cable to the HDMI Output on the Compact KVM Switch and
2.
the other end to the HDMI port on the Display Device.
Connect a USB-C Cable (included) to the USB-C Port on the Compact KVM Switch
3.
and to a USB-C Port on one of the Host Computers.
Repeat step 3 to connect the second Host Computer to the Compact KVM Switch.
4.
Note: The connected Host Computers will power the Compact KVM Switch.
Input Switch Button
Press the Input Switch Button located on the top of the Compact KVM Switch, to
switch between the two connected Computers.
Quick-Start Guide
Function
www.startech.com/SV211HDUC
Manual Revision: March 1, 2022 1:28 PM
