Instruction Manual
2-Port Compact USB/DVI KVM with Cables
SV211KDVI / SV211KDVIGB / SV211KDVIEU

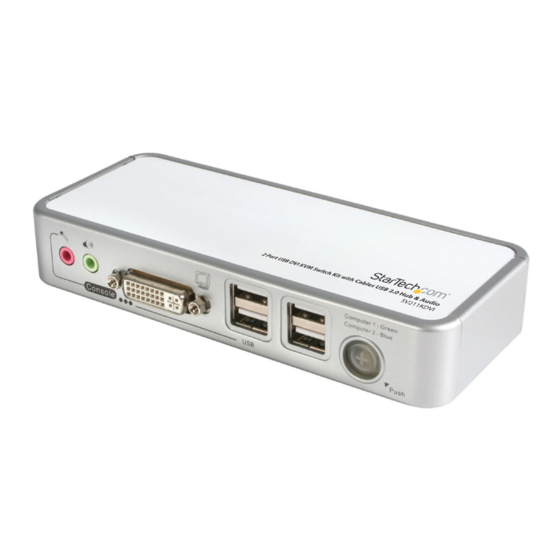

*actual product may vary from photo
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/26/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV211KDVI
Summary of Contents for StarTech.com SV211KDVI
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/26/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ...1 Packaging Contents ... 1 System Requirements ... 1 Front View ... 2 Rear View ... 2 Installation ...3 Operation ...3 Front Panel Pushbuttons ... 3 Keyboard Hotkeys ... 4 Specifications ...5 Technical Support ...6 Warranty Information ...6 Instruction Manual... -
Page 4: Introduction
Introduction The SV211KDVI 2 Port USB DVI KVM Switch Kit with Cables USB 2.0 Hub & Audio provides control of two DVI enabled, USB controlled computers, as well as independent audio/microphone switching for uninterrupted audio when switching between PCs. This USB+DVI KVM Switch features support for high-resolution digital (1920x1200) and analog (2048x1536) video, plus an integrated USB 2.0 hub that allows you to share 2... -
Page 5: Front View
Front View Rear View Instruction Manual Microphone IN port Speaker IN port Console DVI out port Shared Console USB ports USB Hub ports Power Button 5VDC Power IN USB OUT to Computer 2 DVI IN from Computer 2 USB OUT to Computer 1 DVI IN from Computer 1... -
Page 6: Installation
Installation 1. Connect the USB keyboard and mouse into the Console USB ports on the front of the KVM switch. 2. Connect a DVI monitor into the front of the KVM switch. 3. OPTIONAL: Connect speakers and a microphone into the audio connectors on the front of the KVM switch. -
Page 7: Keyboard Hotkeys
Keyboard Hotkeys Please note: • Each sequential keystroke within a hotkey sequence should be pressed within two seconds. Otherwise, the hotkey sequence will not be validated. • Hotkeys are only functional while the computer operating system is running. If you wish to switch computer control during the boot phase, please use the front panel pushbuttons as necessary. -
Page 8: Specifications
Specifications Number of Ports Console Connectors Computer Connectors (per port) LEDs Maximum Video Resolution Audio Support Cascadable Power Adapter Enclosure Material Operating Temperature Storage Temperature Humidity Dimensions Instruction Manual 1 x DVI-I female 4 x USB type A female 1 x 3.5mm mic jack female 1 x 3.5mm speaker jack female 1 x DVI-I female 1 x USB type B female... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
