StarTech.com SV211HDUA4K Quick Start Manual

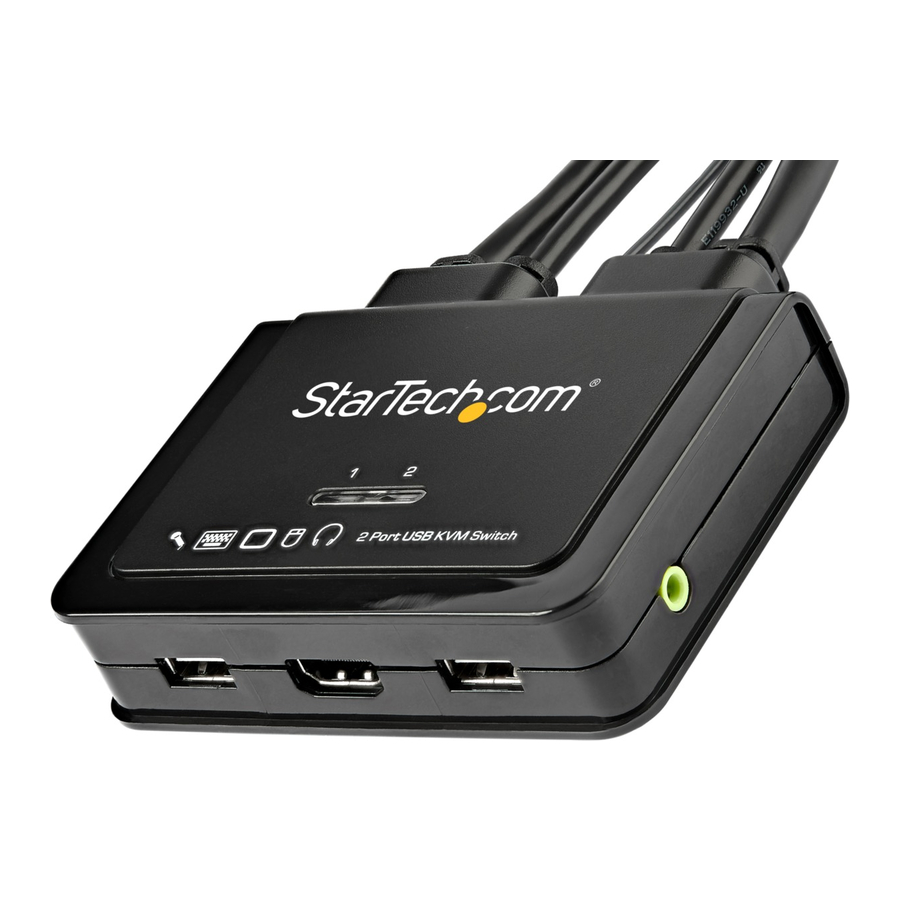

2-Port USB HDMI® Cable KVM Switch w/ Audio and Remote Switch - 4K 60Hz

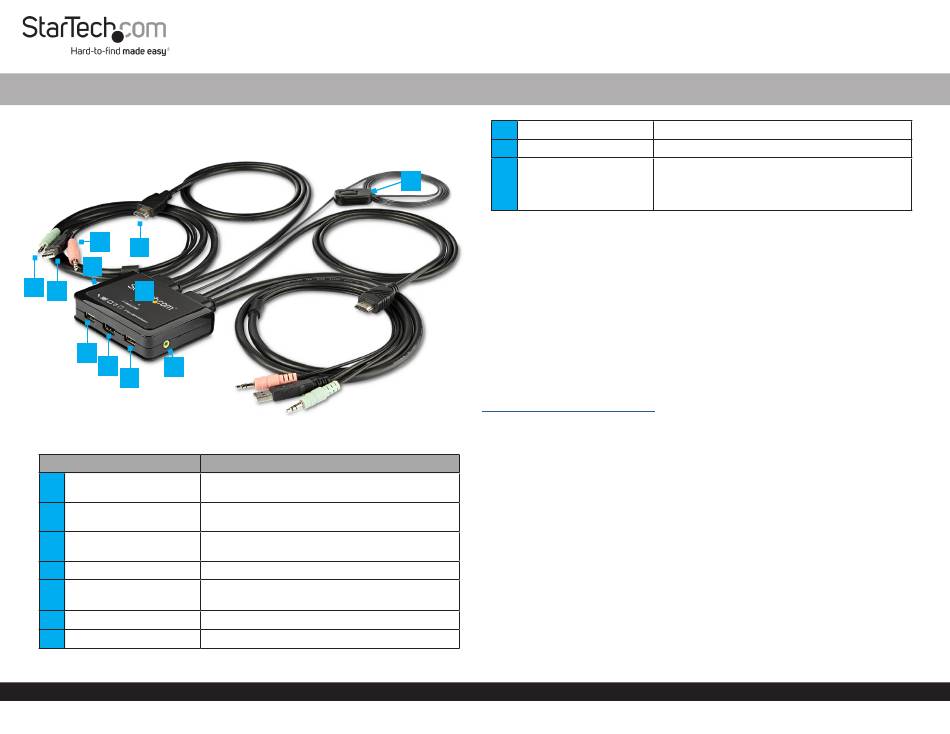

Product Diagram (SV211HDUA4K)
3
7
4
1
2 8
5
6 9
5
Component
• Connect the Speaker Audio from the
1 Stereo Audio Connector
• Transmit the signal of a Keyboard and Mouse
2
USB-A Connector
• Connect the Microphone Audio to the
Microphone Audio
3
Connector
4 Microphone Audio Port • Connect a Microphone
• Connect a Keyboard and Mouse
5
USB HID Ports
• (Optional) Connect USB Peripherals
6 • Connect a HDMI Display
HDMI Port
7 • Connect a HDMI Enabled Computer
HDMI Connector
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Function
Computer
from the KVM Switch to the Computer
Computer
8
LED Indicators
9 Stereo Audio Port
10
10
Remote Switch
Requirements
• HDMI Enabled Computers x 2
• HDMI Display x 1
• USB HID Devices (Keyboard and Mouse) x 2
• (Optional) USB Peripherals x 2
• (Optional) Microphone x 1
• (Optional) Stereo Speakers or Headphones x1
• (Optional) Headset x 1
Note: A Headset may require the use of a Headset Adapter. Check with the
manufacturer of the Headset for more details.
• (Optional) 3.5 mm Audio Cables x 2
For the latest requirements and to view the full User Manual, please visit
www.startech.com/SV211HDUA4K.
Installation
Connect the Computers
1. Connect the built-in Computer 1 HDMI Connector to the HDMI Port on
Computer 1.
2. Connect the built-in Computer 1 USB-A Connector to the USB-A Port on
Computer 1.
3. (Optional) Connect the built-in Computer 1 Stereo Audio Connector (green) to the
3.5mm Stereo Audio Port on Computer 1.
4. (Optional) Connect the built-in Computer 1 Microphone Audio Connector (pink)
to the 3.5m Microphone Audio Port on Computer 1.
5. Repeat steps 1-4 to install Computer 2.
Connect the Console
1. Connect the USB-A Devices (Keyboard, Mouse, or USB Peripherals) to the USB-A
Ports on the KVM Switch using the built-in Keyboard and Mouse USB Cables or
USB-A Cables (sold separately).
Quick-Start Guide
• Indicates Computer selection and activity
• Connect Stereo Speakers
• A wired button used to switch between
Computer 1 and 2
• Press and Release the Remote Switch to
switch between Computer 1 and 2
Manual Revision: July 30, 2019
