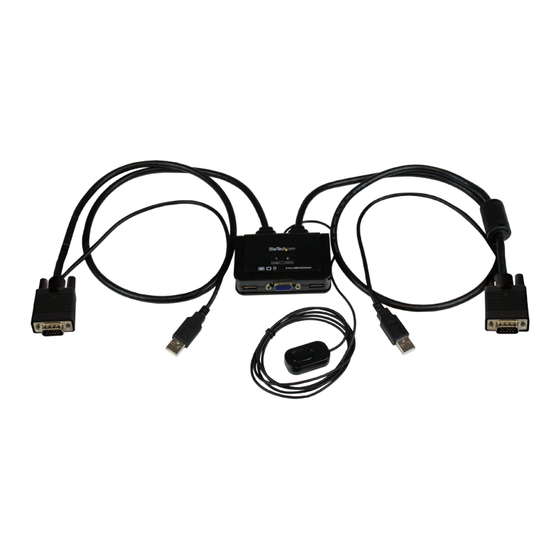

2 Port USB VGA Cable KVM Switch with
Remote Switch – USB Powered
SV211USB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/30/2014
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV211USB
Summary of Contents for StarTech.com SV211USB

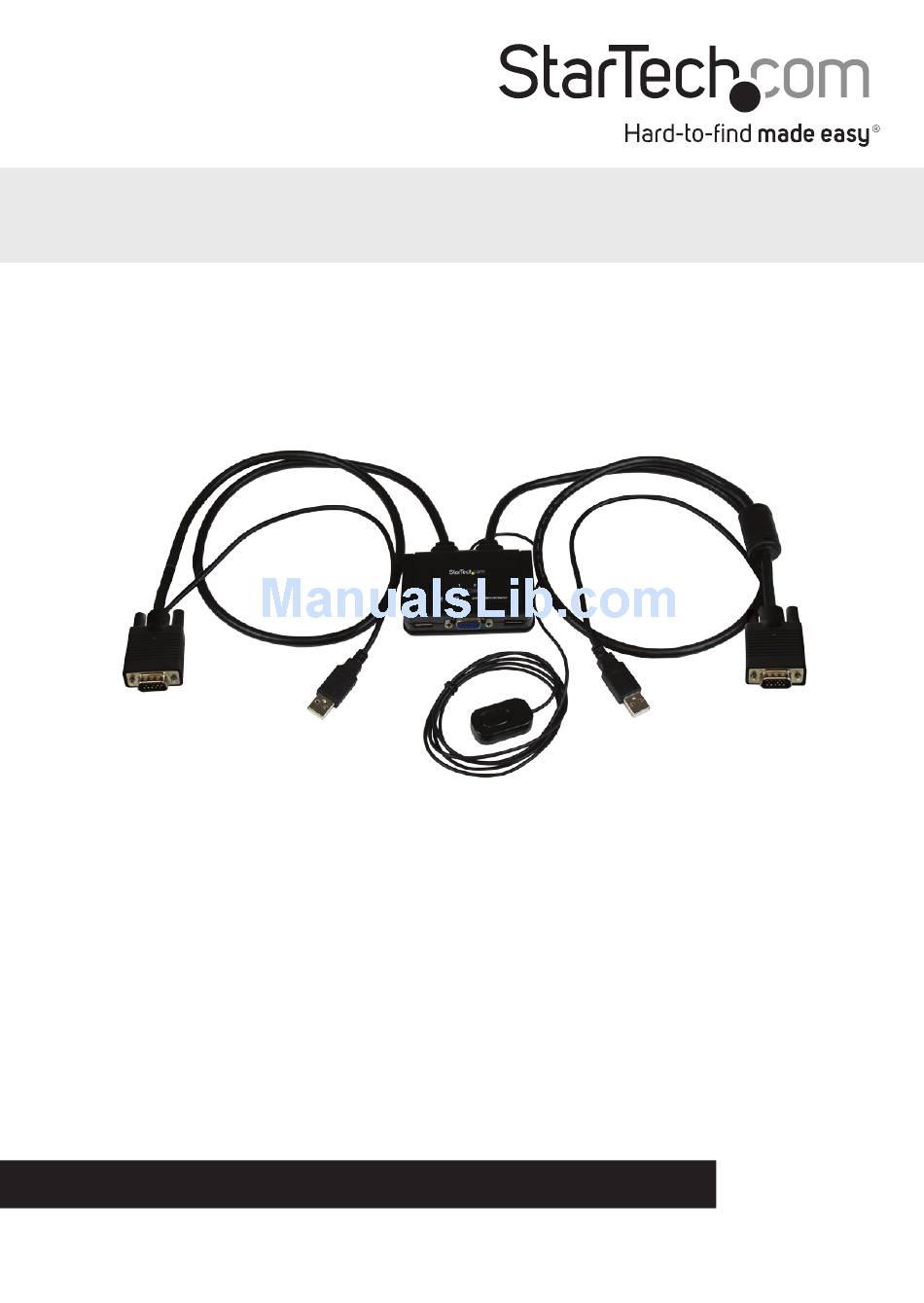

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/30/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation .....................1 Operation ....................3 Hotkey Quick Reference Guide ......................4 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • 1 x KVM Switch • 1 x Software CD • 1 x Instruction Manual System Requirements • Available VGA video output and USB connection • Monitor and USB keyboard/mouse peripheral set Installation 1. Before connecting the KVM Switch, insert the included installation CD into each computer’s CD/ DVD drive. - Page 5 4. Once the installation is complete, a new system tray icon will display (Windows), or a new Application (Mac OS) with the following indicators. 5. Connect your VGA monitor, keyboard and mouse to the available ports on the KVM Switch. 6.
-
Page 6: Operation
Operation There are three methods to control your KVM Switch for computer selection: 1. QuickSwitch Button - A wired remote control for direct switching control. Simply press the button to toggle between the two computers. 2. KVM Switching Software (Windows & Mac platform) – See “Quick Reference Sheet” below for details Windows Operation Menu... -
Page 7: Hotkey Quick Reference Guide
3. Keyboard hotkeys – For Windows, the computer toggle key combination is “Scroll Lock + Scroll Lock”. For Mac, please refer to Define Hotkey Preceding Sequence in the Quick Reference Sheet. Note: Each keystroke hotkey sequence should be pressed within two seconds, otherwise, the hotkey sequence may not be validated. - Page 8 While autoscanning, right-click the KVM Switching icon to evoke the Terminate Autoscan Stop Autoscan operation menu, and then select activity Stop Auto-Scan to de-activate autoscanning. Right-click the KVM Switching icon Beeper will be functional Beeper to evoke the operation menu, then between operations of check the box “Turn on Buzzer”.
-
Page 9: Specifications
Specifications 1 x VGA (15 pin; High Density D-Sub) Female Console Connectors 2 x USB A (4 pin) Female Computer Connectors 1 x VGA (15 pin; High Density D-Sub) Male (per port) 1 x USB 2.0 A (4 pin) Male LEDs 2 x PC Selection Indicator Switching Modes... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
