Exsys EX-45362IS Manual

2S RS232/422/485 3-in-1 Serial PCIe Card
1. Introduction
Congratulation
RS232/422/485 3-in-1 Serial PCIe Host Adapter. The adapter is high speed PCIe
bus based and plug-and-play compliant. Its serial ports are fully 16C550 UART
compatible with most of the RS232, RS422 and RS485 devices available from
the market.
Features:
Fully PCI Express Specifications Revision 1.0a/1.1 Compliant
✓
256-byte deep FIFO per transmitter and receiver
✓
Supports 5V or 12V on its DB25 connector, provides an option to supply
✓
power to all DB9 Connectors via the octopus cable
16C550 UARTs, Baud Rate up to 921.6Kbps
✓
Supports 2 serial ports with RS232, RS422, RS485-2wire and RS485-4wire
✓
modes (each port can be independently set) over one single PCIe slot
Automated in-band flow control using programmable Xon/Xoff in both
✓
directions
Supports Windows 2000, XP, 2003, Vista, Win7, 8.x, 10 and Linux
✓

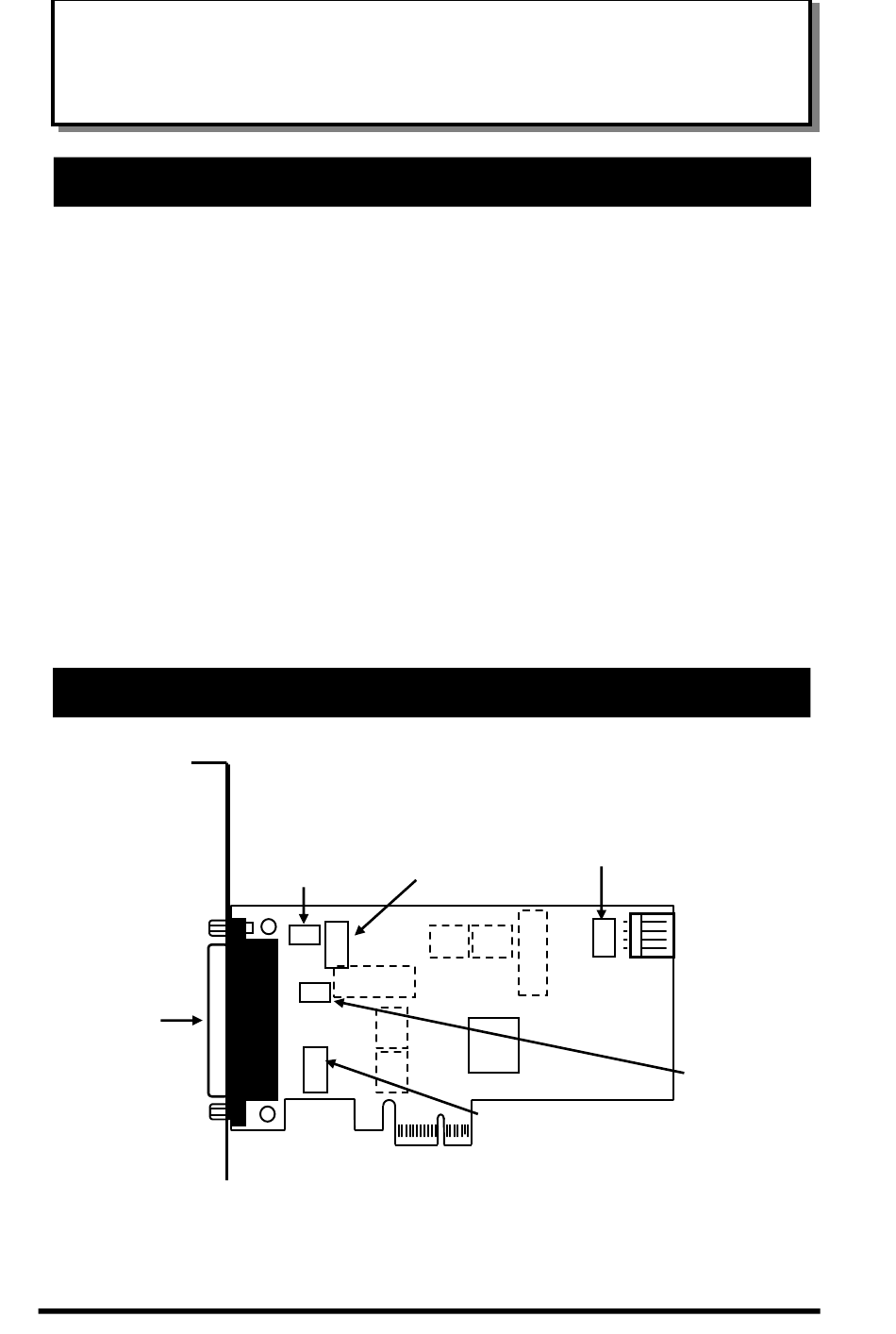

2. Board Layout
J1: DB25 Male
External
Connector
45362IS
EX-
on your purchasing
S1_PWR:
Pin 9 Power
Selector for S1
this high
S1_MODE:
MODE Switches
for S1
S2_MODE:
MODE Switches for S2
1
performance
JP1: Aux Power
Source Selector
S2_PWR:
Pin 9 Power
Selector for S2
2-Port
