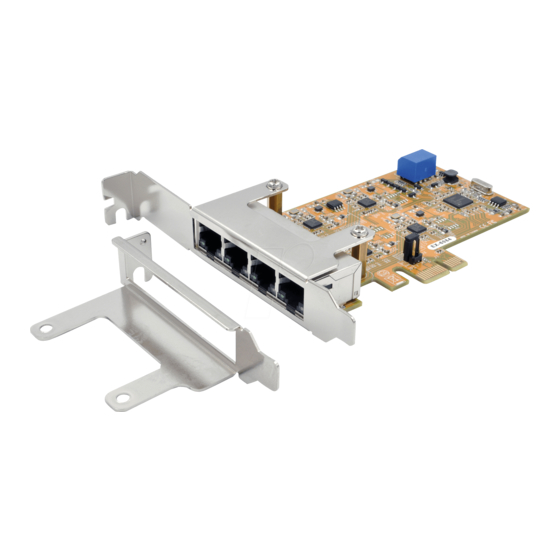

4-Port Gigabit Ethernet to PCIe Host Adapter
1. Introduction
Thank you for purchasing this 4-Port Gigabit Ethernet to PCIe Host Adapter
(hereinafter "the Product"). The Product is in PCI Express form factor with a built-in
USB3.1 (Gen 1) Host Controller and 4 USB3.1 Gigabit Ethernet Converters to provide
an instant expansion of 4 Gigabit Ethernet ports for your Desktop, Server and
Thin-Client computers.
The Product complies PCI Express, USB3.1 Gen 1 and 10/100/1000 Ethernet
specifications. It provides an ideal solution to expand your Ethernet ports for all
Network based applications.

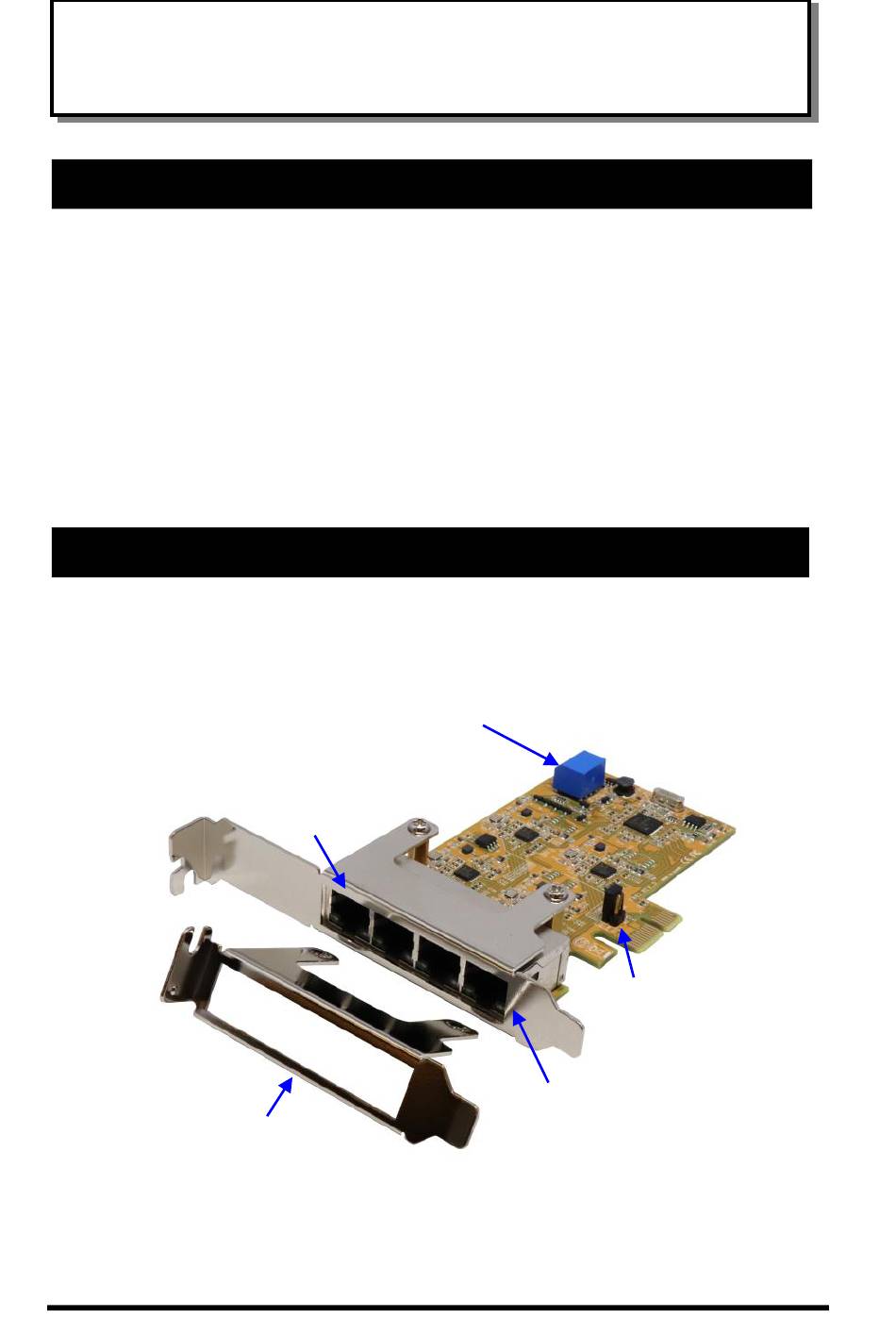

2. Connector Layout
J4: Gigabit Ethernet Ports:
Low Profile Bracket
Installation Guide
SW1: Ports Enable/Disable Switch
Port 1
1
JP1: AUX Power
Enable/Disable
Port 4
Advertisement
Table of Contents
Related Manuals for Exsys EX-6084
Summary of Contents for Exsys EX-6084
-
Page 1: Installation Guide
4-Port Gigabit Ethernet to PCIe Host Adapter Installation Guide 1. Introduction Thank you for purchasing this 4-Port Gigabit Ethernet to PCIe Host Adapter (hereinafter “the Product”). The Product is in PCI Express form factor with a built-in USB3.1 (Gen 1) Host Controller and 4 USB3.1 Gigabit Ethernet Converters to provide an instant expansion of 4 Gigabit Ethernet ports for your Desktop, Server and Thin-Client computers. - Page 2 4-Port Gigabit Ethernet to PCIe Host Adapter Features: ✓ Fully PCI Express Gen 2 Specification Compliant ✓ Supports Low Profile Form Factor ✓ Compliant with USB Specification 3.1 Gen 1 ✓ Onboard Windows Drivers, no Extra Driver is Required for Installation in major Windows ✓...
-
Page 3: Switch Description
4-Port Gigabit Ethernet to PCIe Host Adapter JP1: AUX Power Enable/Disable Settings Jumper Position Settings Stand-by Power is disabled (Default): The Product is not powered by the Stand-by power (3.3V AUX) when the system is powered off Stand-by Power is enabled: The Product is powered by the Stand-by power when the system goes to sleep or is powered down Switch Description:... - Page 4 4-Port Gigabit Ethernet to PCIe Host Adapter 3. Installing the Product Installing drivers for USB3.1 Gen 1 Host Adapter The Product has built-in a PCI Express USB3.1 Gen 1 host controller which may need drivers for early Windows. The following table gives a summary for the OS which need drivers.
- Page 5 4-Port Gigabit Ethernet to PCIe Host Adapter You have 2 choices to install the drivers. The first is to follow the instructions of the Windows’ Wizard to complete the whole installations. Or we strongly recommend you click “Cancel” to abort the Windows’ Wizard installation and turn to run (by double-clicking) the Installer program (for example, setup.exe file) in the E:\USB 3.0\RENESAS\UPD720201_202 folder on the driver CD.
- Page 6 4-Port Gigabit Ethernet to PCIe Host Adapter You will see only the Port 1 shown on Windows Device Manager, assigned as Ethernet Port #1 Set switch Pin 2 to ON while still keep Pin 3 and 4 at OFF, Windows then install the drivers for Port 2 and adds Ethernet Port #2 to its Device Manager Set switch Pin 3 to ON, adds Ethernet Port #3 Set switch Pin 4 to ON, adds Ethernet Port #4...
