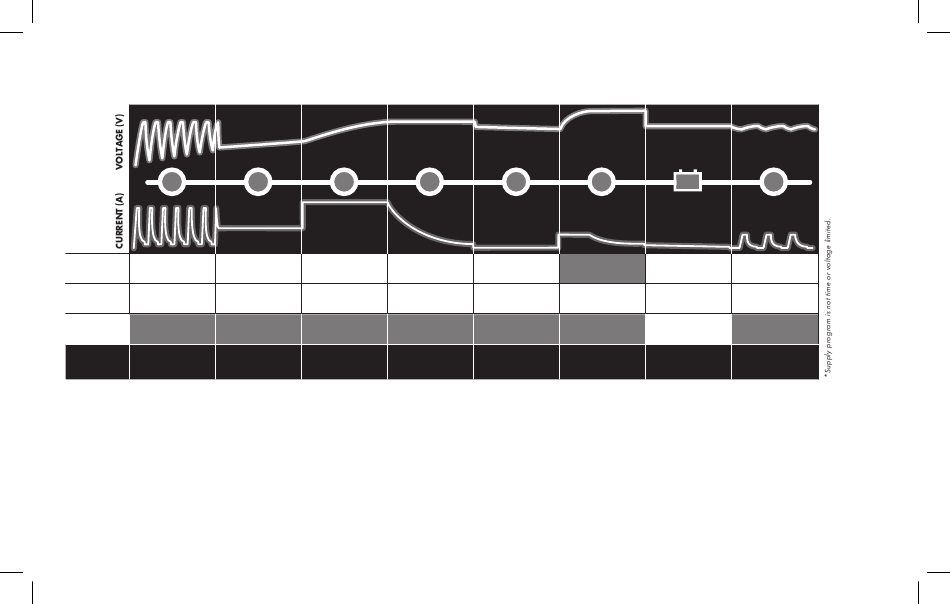

CHARGING PROGRAM

DESULPHATION
1
1
14.4V 25A until 12.6V
NORMAL
14.4V 25A until 12.6V
RECOND
SUPPLY
Max 4h
Limit:
STEP 1 DESUlPHATION
Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the lead plates
of the battery restoring the battery capacity.
STEP 2 SOFT START
Tests if the battery can accept charge. This step prevents that charging proceeds with a defect
battery.
STEP 3 BUlk
Charging with maximum current until approximately 80% battery capacity.
STEP 4 ABSORPTION
Charging with declining current to maximize up to 100% battery capacity.
10 • EN
20021718A Multi US 25000MXS 25EC NA, Manual, Insert pages, Print file_003.indd 10
SOFT START BULK ABSORPTION
2 3
Increasing voltage 14.4V @ 25°C
to 14.4V @ 25°C Declining current
25A
Increasing voltage 14.4V @ 25°C
to 14.4V @ 25°C Declining current
25A
Max 4h Max 20h Max 12h
ANALYSE RECOND
4 5 6
Checks if voltage
drops to 12V
Checks if voltage Max 15.8V
drops to 12V
3A
30 min or 4h
3 minutes
depending on
battery voltage
STEP 5 ANAlYSE
Tests if the battery can hold charge. Batteries that can not hold charge may need to be
replaced.
STEP 6 RECOND
Choose the Recond program to add the Recond step to the charging process. During the
Recond step voltage increases to create controlled gasing in the battery. Gasing mixes the
battery acid and gives back energy to the battery.
STEP 7 FlOAT
Maintaining the battery voltage at maximum level by providing a constant voltage charge.
STEP 8 PUlSE
Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage and
gives a pulse when necessary to keep the battery fully charged.
FLOAT PULSE
7
8
13.6V 12.9V‒14.4V
25A 18‒4.5A
13.6V 12.9V‒14.4V
25A 18‒4.5A
Max 13.6V
25A
10 days Charge cycle restarts
Charge cycle restarts if voltage drops
if voltage drops*
