Charging Program - CTEK MXT 14 User Manual

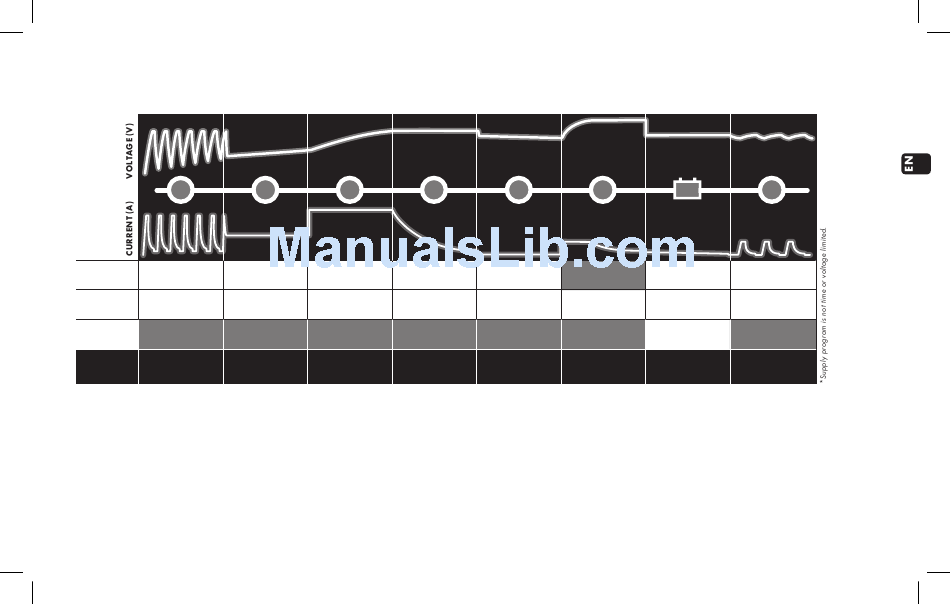

charging PrOgraM

DESULPHATION
1
1
28.8V
NORMAL
28.8V
RECOND
SUPPLY
Max 4h
Limit:
STEP 1 DESULPhaTiOn
Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the lead
plates of the battery restoring the battery capacity.
STEP 2 SOFT STarT
Tests if the battery can accept charge. This step prevents that charging proceeds with a
defect battery.
STEP 3 BULk
Charging with maximum current until approximately 80% battery capacity.
STEP 4 aBSOrPTiOn
Charging with declining current to maximize up to 100% battery capacity.
20015551E MXT 14, Manual EU, Print file 001.indd 5
SOFT START BULK ABSORPTION
2 3
14A until 27.2V Increasing voltage 28.8V @ 25°C
to 28.8V @ 25°C Declining current
14A
14A until 27.2V Increasing voltage 28.8V @ 25°C
to 28.8V @ 25°C Declining current
14A
Max 4h Max 20h
ANALYSE RECOND
4 5
Checks if voltage
drops to 24V
Checks if voltage Max 31.6V
drops to 24V
1.5A
30 min or 4h
Max 12h 3 minutes
depending on
battery voltage
STEP 5 anaLYSE
Tests if the battery can hold charge. Batteries that can not hold charge may need to be replaced.
STEP 6 rEcOnD
Choose the Recond program to add the Recond step to the charging process. During the Recond step
voltage increases to create controlled gasing in the battery. Gasing mixes the battery acid and gives
back energy to the battery.
STEP 7 FLOaT
Maintaining the battery voltage at maximum level by providing a constant voltage charge.
STEP 8 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage and gives a
pulse when necessary to keep the battery fully charged.
FLOAT PULSE
6 7 8
27.2V 25.8V‒28.8V
14A 10‒2.3A
27.2V 25.8V‒28.8V
14A 10‒2.3A
Max 27.2V
14A
10 days Charge cycle restarts
Charge cycle restarts if voltage drops
if voltage drops*
EN • 5
