OPERATING INSTRUCTIONS

1. Connect the charger to the battery.
2. Connect the charger to the wall socket. The power lamp will indicate
that the mains cable is connected to the wall socket. The error lamp will
indicate if the battery clamps are incorrectly connected. The reverse
polarity protection will ensure that the battery or charger will not be
damaged.
3. P ress the MODE-button to select charging program.
4. Follow the indication lamps through the charging process.
The battery is ready to start the engine when
The battery is fully charged when
5. Stop charging at any time by disconnecting the mains cable from the wall
socket.
RECOMMENDED MINIMUM AWG SIzE FOR AC
ExTENSION CORDS
lENGTH OF CORD
FEET (M)
25 (7.6)
50 (15.2)
100 (30.5)
150 (45.6)
8 • EN
20021718A Multi US 25000MXS 25EC NA, Manual, Insert pages, Print file_003.indd 8
is lit.
is lit.
AWG SIzE
OF CORD
18
16
12
10

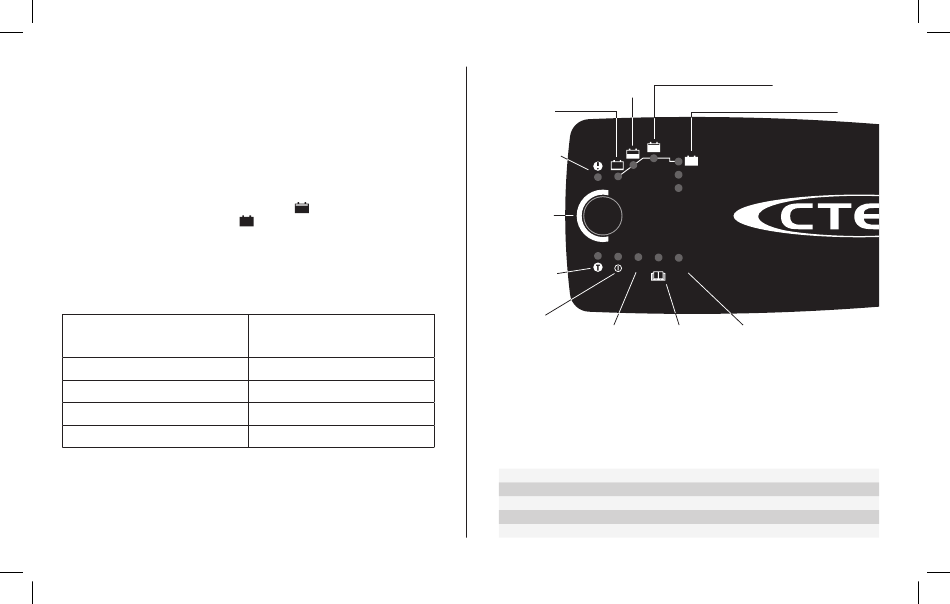

ABSORPTION, READY TO USE
ANALYSE
BULK
DESULPHATION
SOFT START
ERROR lAMP
MODE-
MODE
BUTTON
TEMPERATURE
NORMAL SUPPLY RECOND
SENSOR
INDICATOR
POWER
NORMAl SUPPlY
lAMP
BATTERY PROGRAM
PROGRAM

READY TO USE

The table shows the estimated time for empty battery to 80% charge
BATTERY SIzE (Ah)
40Ah
100Ah
200Ah
300Ah
FLOAT, FUllY CHARGED
PULSE, MAINTENANCE CHARGING
SUPPLY
RECOND
RECOND
PROGRAM
TIME TO 80% CHARGED
1.5h
3h
6h
16h
