CONNECTIONS

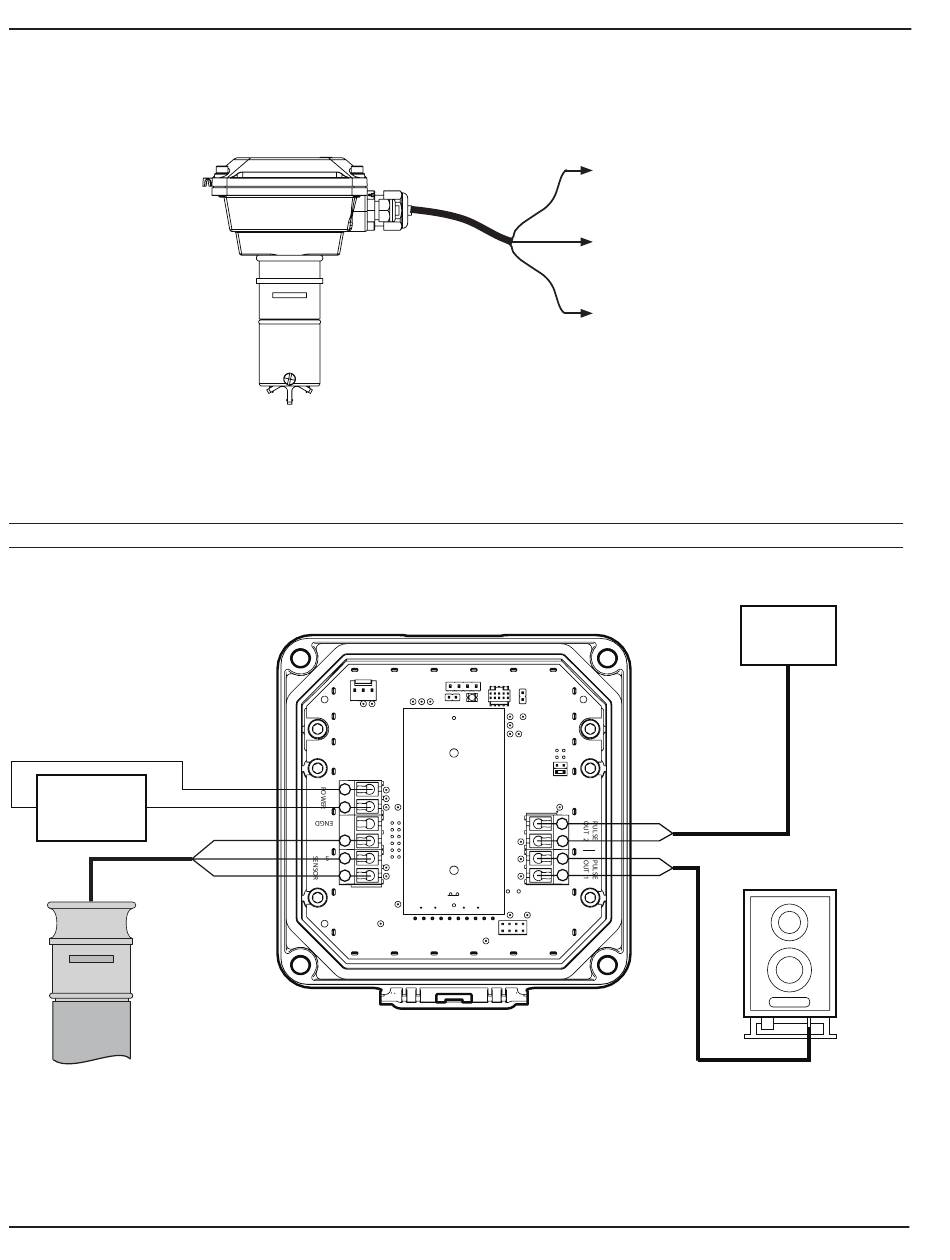

Sensors are supplied with 18 ft. (6m) of cable. For sensors with no additional electronics, see diagram for color coding
of connections. For sensors with on-board electronics, see the manual accompanying the electronic module.

FT430

_
7-45Vdc
+
Supply
Flow
Sensor
Seametrics • 253.872.0284
_
_
+
+
BLACK
_
_
WHITE
S
RED
+
+
RED (+)
Low Power: 6-36 Vdc
Micropowered: 3.1 - 16 Vdc
WHITE
Signal
BLACK (-)
Power
FT430
_
_
+
+
_
_
+
+
Page 8
IP800-SERIES INSTRUCTIONS
Pulse
Pass-thru
Pulse Responsive
Metering Pump
