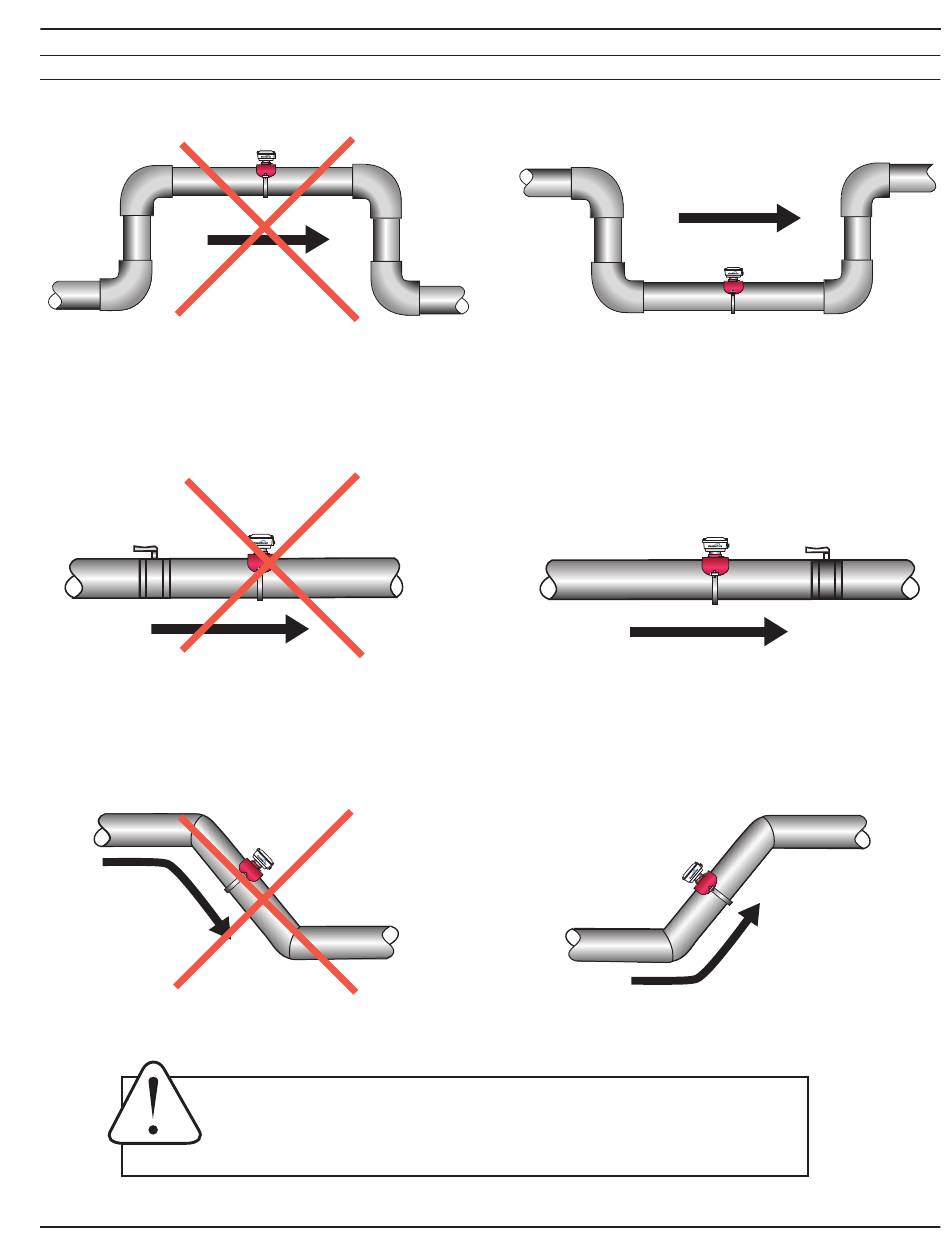

Full Pipe Recommendations

Possible Problem
Allows air pockets to form at sensor
Possible Problem
Post-valve cavitation can create air pocket
Possible Problem
Air can be trapped
Caution: These flow sensors are not recommended for installation downstream
of a boiler feedwater pump where installation fault may expose the flow sensor
to boiler pressure and temperature. Maximum recommended temperature is
130°F (Plastic), 200°F (Metal).
