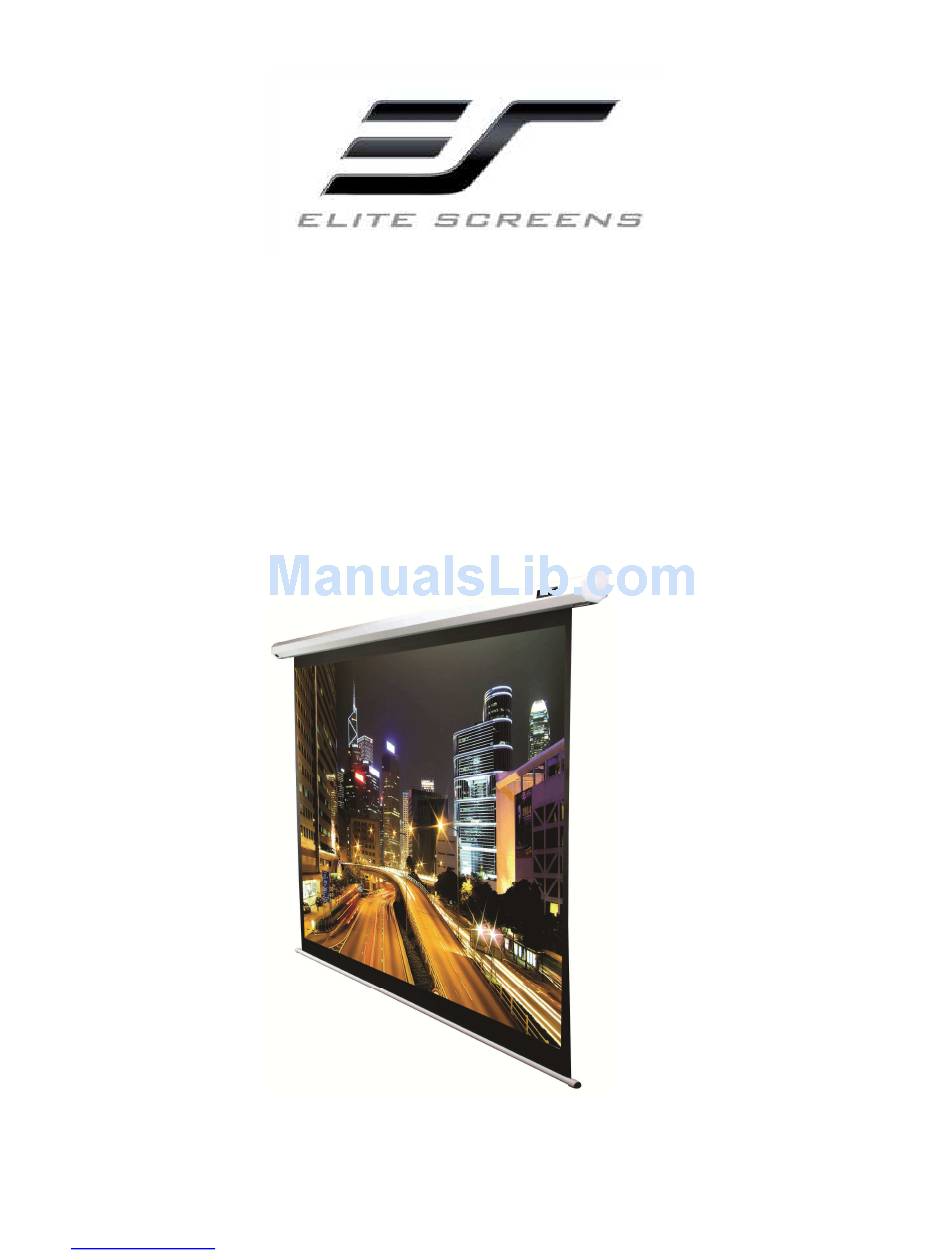

Electric Motorized Projection Screen Spectrum Series User’s Guide Rev.010312-AS www.elitescreens.com info@elitescreens.com... - Page 2 Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black Top Drop in the roller. Please be aware of this as it will void your warranty with Elite Screens. Unapproved changes or modifications (except for cutting the power cord for hardwire installations) to this unit are prohibited and will void your warranty.
-
Page 3: Installation Warning
Please consult a professional installation company for further installation and safety advice. The installer must insure that proper mounting hardware is used to provide adequate strength suitable for the installation. Elite Screens is not liable for any faulty installations. - Page 4 Accessories for Spectrum Series Please make sure all accessories below are included before proceeding. Red+ Green- Infrared Remote 3 Way Wall Switch 12 Volt Trigger AAA Batteries Bubble Level Radio Frequency Remote Infrared Eye Receiver (Not Included) (Not Included) Rev.010312-AS www.elitescreens.com info@elitescreens.com...
- Page 5 Control System for Spectrum Series 1. 5-12V Trigger: The built-in 5-12V trigger input allows your screen to synchronize its drop & rise with the projector’s power cycle. The screen deploys when the projector powers up and will retract when the projector powers down. The 5-12 volt adaptor connects to your projector’s trigger 3-prong power cable output via a separate cable that may or may not...
-
Page 6: Installation Instructions
Installation Instructions Please consult a professional installer. Elite Screens is not liable for any faulty installations. 1. Select the installation location for your screen. Ensure that it is within reasonable proximity from your power source. 2. For best support of your screen, it is ideal to secure your screen into the studs of your house’s internal framework. -
Page 7: Troubleshooting And Faqs
Troubleshooting & FAQ’S For additional information, please contact Elite Screens at techsupport@elitescreens.com 1. If your screen does not move, please check the power supply. The screen will understandably not move without power. 2. Make sure the power cord is firmly plugged to the power outlet. - Page 8 Spectrum Series Dimension Table *Measurement dimensions are intended as a reference only and subject to change without notice. Note: Data Error may be ±1" Rev.010312-AS www.elitescreens.com info@elitescreens.com...
-
Page 9: Warranty Policy
A RMA (Return Merchandise Authorization) number must be issued in order to process a replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option replace or repair the defective unit with a replacement *(see exceptions below) after the defective unit or parts have been received. -
Page 10: Contact Information
Tel: +49-4030392494 Fax: +1-562-926-8433 Fax: +49-40-49219200 info@elitescreens.com info@elitescreens.eu www.elitescreens.com www.elitescreens.eu Asia: Elite Screens France S.A.S 11, Allée William Penn Elite Screens China Corp. Longxi Duimianling Industry Zone 92150 Surenes, France Longcheng Longgang District, Tel: +33-1-45064735 ShenZhen GuangDong, China Fax: +33-1-45064735 Tel: +86-(0)755-8461-7989 info.fr@elitescreens.com...
