14.4 SeNSor reGISTer MeNu

The "Sensor Register" menu is used to register new sen-
sors to the system, and to display sensors which are alrea-
dy registered.
explanation, "Sensor register" main menu
The main menu displays the channels which are in use by
one sensor type, in addition to the sensor name and the
start channel.
For example, two channels (altimeter and vario) are reser-
ved if a vario sensor is registered.
Start channel
Start channel
Sensor name
1 VARIO-F1712
2 **RESERVED**
3 VARIO-F1672
4 **RESERVED**
5 TEMP125-F1713
6 FREE
7 FREE
14
Telemetry-Box 2.4 GHz FASSTest
registering a sensor

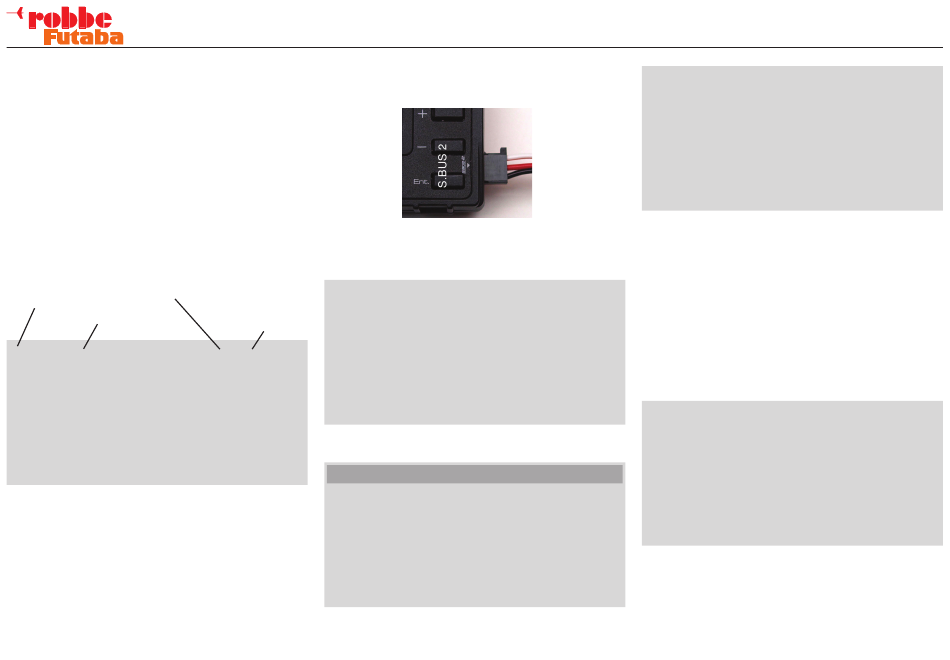

• Connect a sensor to the S-BUS2, taking care to maintain
correct polarity (see illustration).
• Now select the "Sensor Register" menu. The following
screen display now appears:
1 FREE
Channels in use
2 FREE
by sensor type
3 FREE
1 2
4 FREE
5 FREE
3 2
6 FREE
7 FREE
5 1
• A start channel must now be selected. Use the "=" and
"ENT." buttons for this.
1 FREE
1 FREE
2 FREE
3 FREE
4 FREE
5 FREE
6 FREE
7 FREE
®
The following screen display now appears:
TYPE: VARIO
>NuMBER:
START SLOT NuM:
NuMBER OF SLOTS:
ERASE SENSOR
• A single press on the "ENT." button registers
the sensor.
erasing a sensor
This is the procedure for erasing a sensor:
• Move to the "Sensor Register" menu.
• Use the "-" or "+" button to select the sensor to be erased,
and confirm your choice with the "ENT." button.
• The following screen display now appears:
TYPE: VARIO
NuMBER:
START SLOT NuM:
NuMBER OF SLOTS:
>ERASE SENSOR
• Now move the Select arrow to the
"ERASE SENSOR" FUNCTION.
• Hold the "ENT." button pressed in for about two seconds to
sensor.
erase the
1
1
2
1
1
