Summary of Contents for Elation IP GOBO ROTATOR

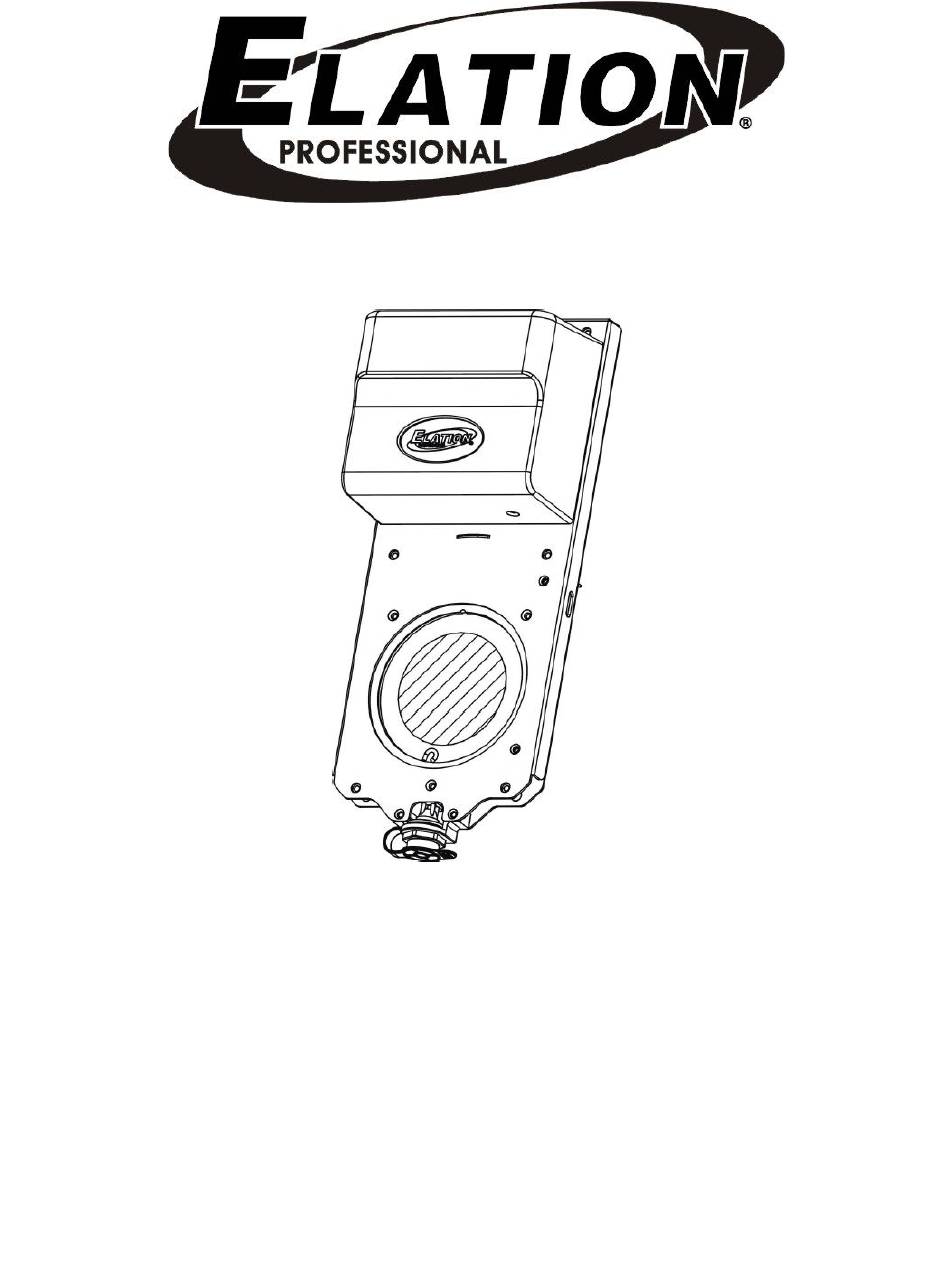

- Page 1 IP GOBO ROTATOR™ user manual...
- Page 2 +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 D O C U M E N T V E R S I O N Due to additional product features and/or enhancements, an updated version of this document may be available online.
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Device Overview Installation Guidelines Gobo Dimensions Gobo Installation Rotator Installation DMX Control Specifications... -
Page 4: General Information
2 B-Size Metal Gobos Safety Cable Rotator to Fixture Linking Power/Data Cable CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. C. This warranty is void if the product serial number and/or labels are altered or removed;... -
Page 6: Safety Guidelines
To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of this device. -
Page 7: Maintenance Guidelines
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this device, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 8: Device Overview
D E V I C E O V E R V I E W 1. IP65 Power/Data Connection Cover 2. Power/Data Fixture Linking Connection 3. B-Size 86mm Metal Gobo 4. Fixture Light Shield 5. Safety Cable Attachment Point (secure rotator to fixture) -
Page 9: Installation Guidelines
I N S T A L L A T I O N G U I D E L I N E S IP65 RATED An IP rated lighting device is one, which is commonly installed in outdoor environments and has been designed with an enclosure that effectively protects the ingress (entry) of external foreign objects such as dust and water. -
Page 10: Gobo Dimensions
G O B O D I M E N S I O N S... -
Page 11: Gobo Installation
G O B O I N S T A L L A T I O N FRONT GOBO 1. Remove FRONT GOBO retainer-clip. 2. Remove included FRONT GOBO. Replace with desired GOBO, aligning the GOBO tab (if included) into the holder notch. Install FRONT GOBO retainer-clip securely. REAR GOBO 3. -
Page 12: Rotator Installation
R O T A T O R I N S T A L L A T I O N 1. Power CW/WW PROFILE HP IP fixture OFF and place on a flat stable surface. 2. Loosen GOBO slot cover screws (x2) on top of the fixture and slide open. IP GOBO Rotator DMX Connection orientation slot If the slot cover screws interfere with rotator installation, it may be necessary to temporarily remove them for installation. - Page 13 R O T A T O R I N S T A L L A T I O N 3. Remove rubber cover from the bottom of the fixture. Back Front Radiused Stop 4. Position the rotator housing facing the front of the profile fixture, then install it into the GOBO slot.
- Page 14 R O T A T O R I N S T A L L A T I O N SAFETY CABLE The ROTATOR includes an integrated safety cable rigging point. (See image below.) ALWAYS ATTACH INCLUDED SAFETY CABLE FROM THE ROTATOR TO THE MOUNTING YOKE TO ENSURE THE ROTATOR WILL NOT FALL.
-
Page 15: Dmx Control
D M X C O N T R O L MODE / CHANNEL VALUE FUNCTION GOBO ROTATOR 0-127 GOBO Indexing 128-189 Clockwise Rotation FAST to SLOW 190-193 NO Rotation 194-255 Counter-Clockwise Rotation SLOW to FAST... -
Page 16: Specifications
S P E C I F I C A T I O N S GOBO SIZE B-Size Metal OD 86mm | ID 64.5mm Holds (2) Gobos CONTROL / CONNECTION Bi-Directional Variable Speed Counter-Rotation and Full Indexable via DMX 5pin Power/Data (rotator to fixture proprietary linking cable included) SIZE / WEIGHT Length: 4.8”... - Page 17 DIMENSIONAL DRAWINGS Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.
