3-System Setup Parameters
pulseEKKO PRO
3.5
Display Parameters
Selecting the Display Parameters menu option from the System Setup main menu (See Figure 3-1 on
page 31), will display a screen similar to Figure 3-12. This section details each parameter listed in this
menu.

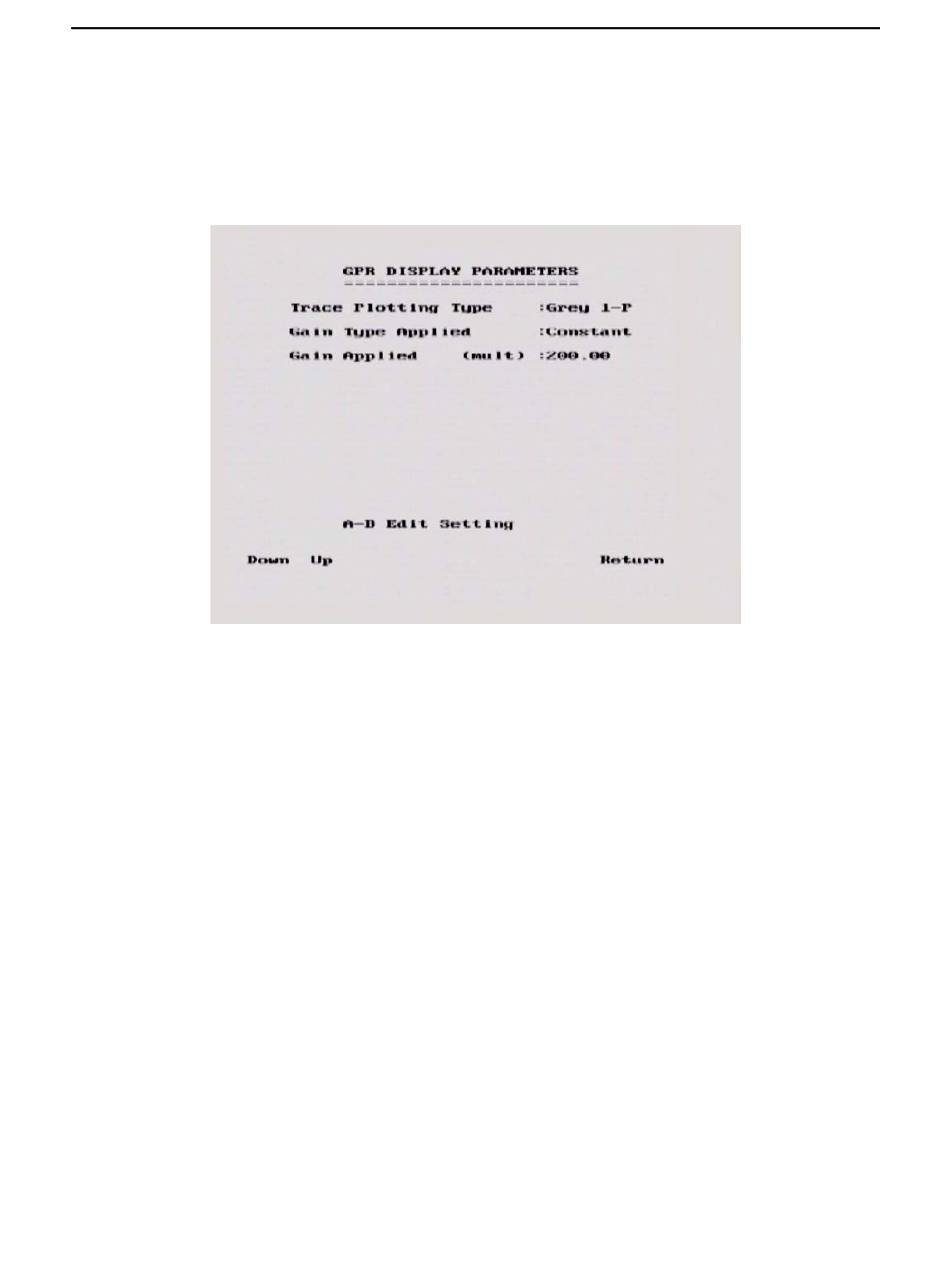

Figure 3-12: The Display Parameters menu. Use the Up and Down buttons to move to the desired parameter and edit the value by
pressing the A and B buttons.
3.5.1 Trace Plotting Type
The data traces can be plotted in two ways: Grey scale or Wiggle.
Grey means each data point is plotted as a grey strip based on its amplitude (Figure 3-13).
If traces are plotted in grey scale, the trace width, in pixels, can also be specified. The choices are 1, 2, 4
or 8 pixels with 2 or 1 pixels being the usual setting. For example, the VGA screen on the DVL with a
resolution width of 640 pixels can display:
80 traces 8 pixels wide
160 traces 4 pixels wide
320 traces 2 pixels wide
640 traces 1 pixel wide
The narrower the trace width, the more data that can be displayed on one screen.
56
