pulseEKKO PRO
3-System Setup Parameters
3
System Setup Parameters
The System Setup option from the main menu (See Figure 2-36 on page 27) is used to set up the data
collection parameters.

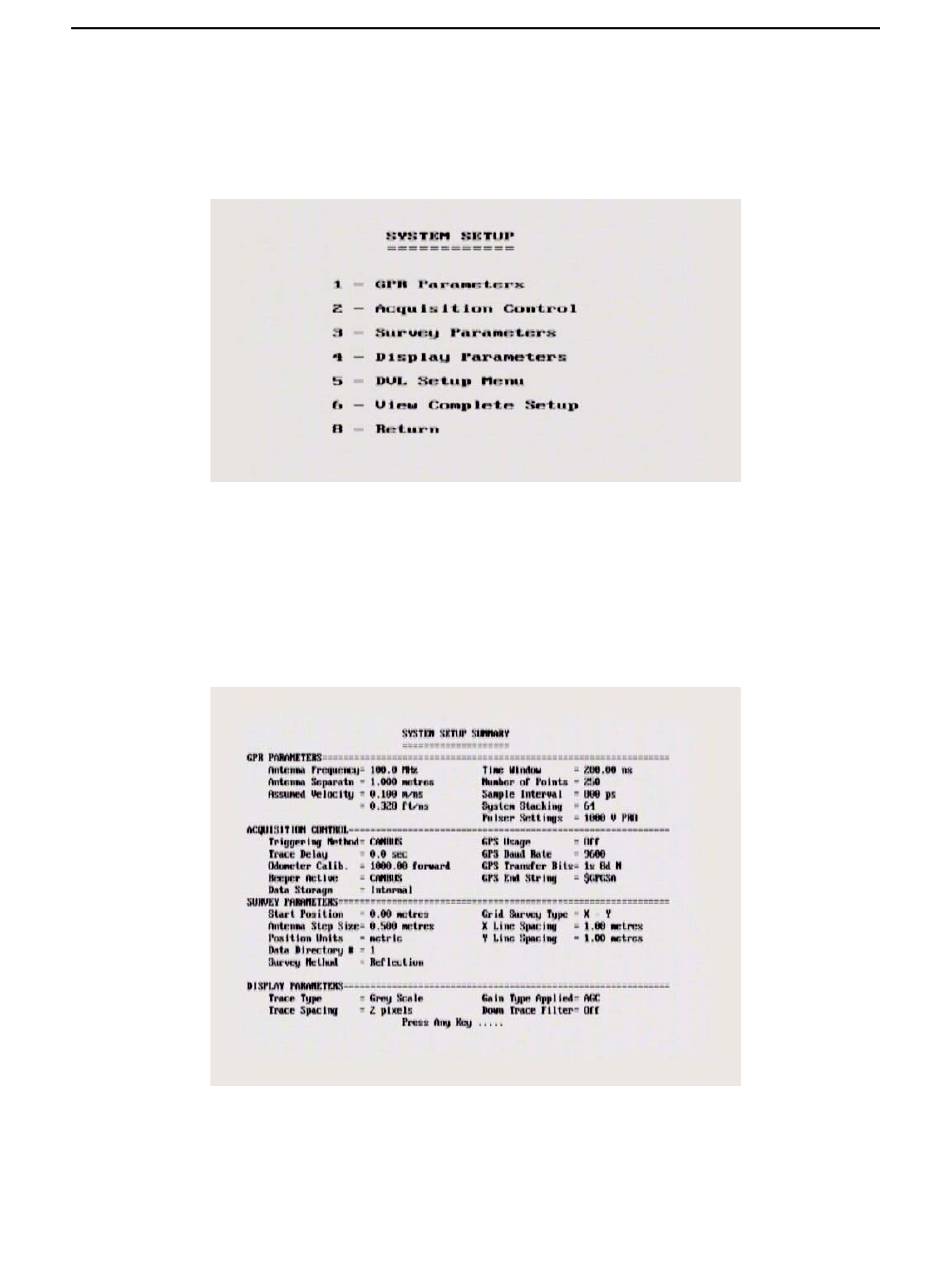

Figure 3-1: The System Setup main menu is used to access and change any parameter used for data collection. Related parame-
ters are grouped under different menu headings, for example, GPR Parameters list the variables specific to the GPR system. Select
View Complete Setup from this menu to quickly locate the desired parameter and the heading it is listed under.
Selecting View Complete Setup from this menu or View Setup from the main menu (See Figure 2-36 on
page 27) displays all the current parameter settings for the pulseEKKO PRO system. A screen display
similar to the one in Figure 3-2 will be seen:
Figure 3-2: The View Setup option displays all the current settings and indicates which System Setup headings to select to change
individual parameters. For example, select Acquisition Control to change the Triggering Method.
31
