2-System Assembly and Startup pulseEKKO PRO

2.3.6 Inserting Batteries into the Transmitter and Receiver

With the transmitter and receiver power switched OFF, unlatch the 2 battery covers on the sides of the
electronics and open (Figure 2-12). Place one 12-volt battery on each side on the electronics boxes
making sure the positive (+) terminal faces inward toward the electronics (Figure 2-13). The battery is
"keyed" with a notch in one side so it only fits properly in this orientation. Close and latch the battery
covers.

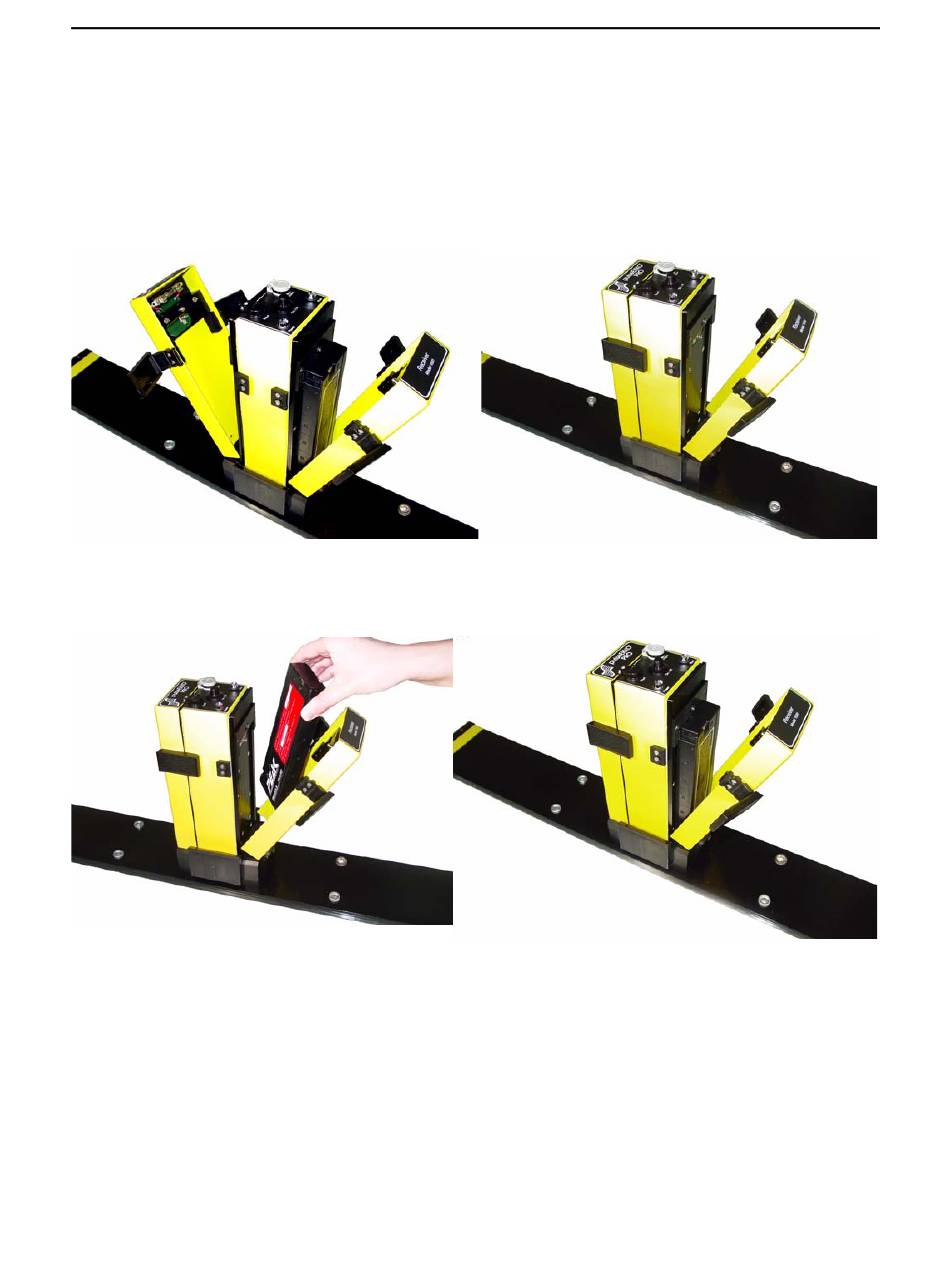

Figure 2-12: Opening the battery compartment doors.
Figure 2-13: Insert the 12 Volt battery into the battery compartment making sure that battery polarity is correct. The positive (+)
terminal faces inward. The battery is "keyed" so it will only seat properly in the compartment if it is in the correct orientation.
10
