pulseEKKO PRO
2-System Assembly and Startup
2.4.3.4
Connecting the Transducer Cables
The next step is to connect the transducers to the control module.

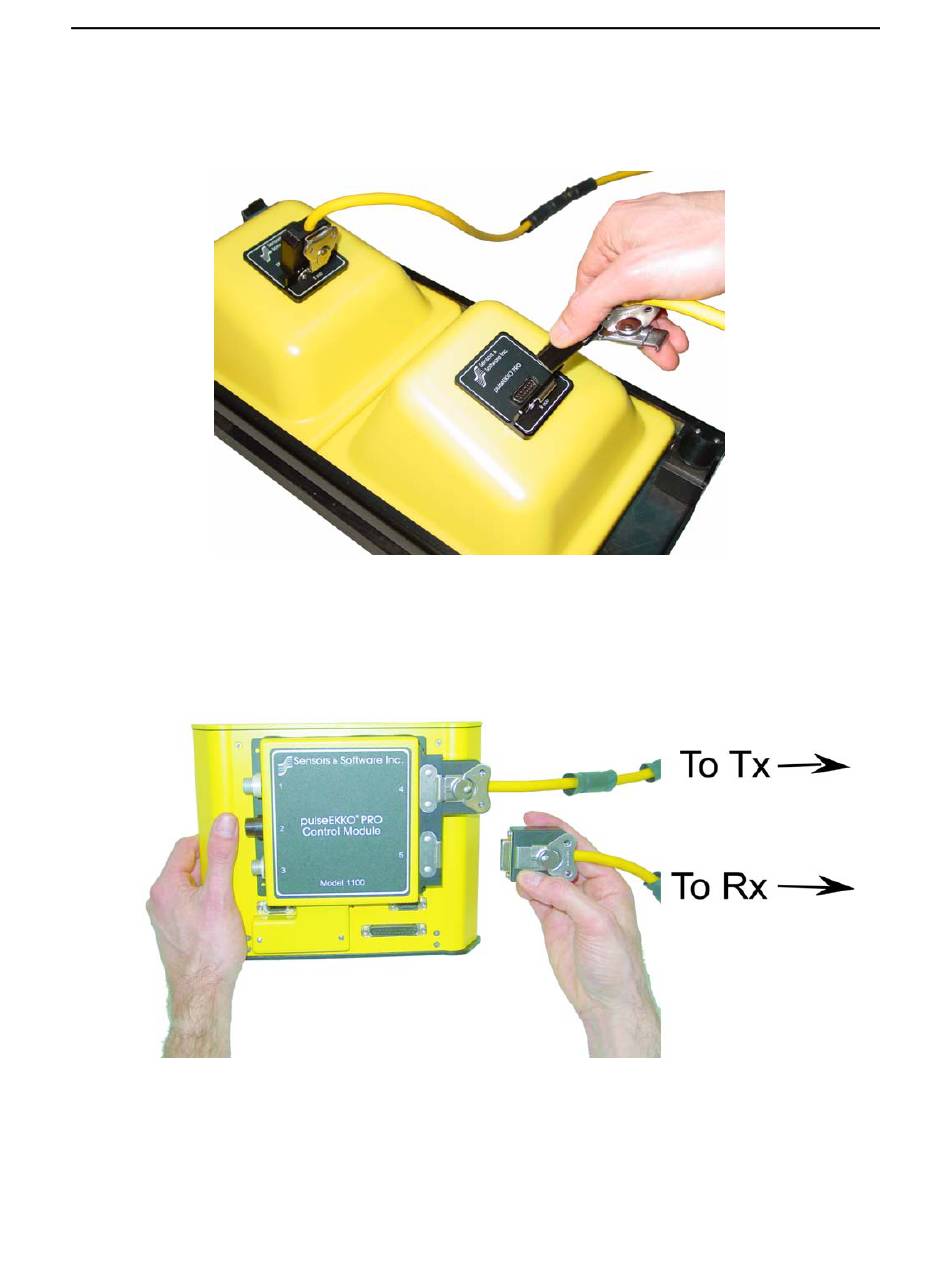

Figure 2-25: Connecting the transducer cables to the transducers. The connections are secured with latches.
Figure 2-26: Connecting the transducer cables to the Control Module. The transducer cable from the transmitting transducer
connects to the control module receptacle labelled 4 while the transducer cable from the receiving transducer connects to the con-
trol module receptacle labelled 5. The cable attachments are secured with latches.
19
