pulseEKKO PRO 2-System Assembly and Startup
2.4.3.2

Attaching the Big Wheel Odometer

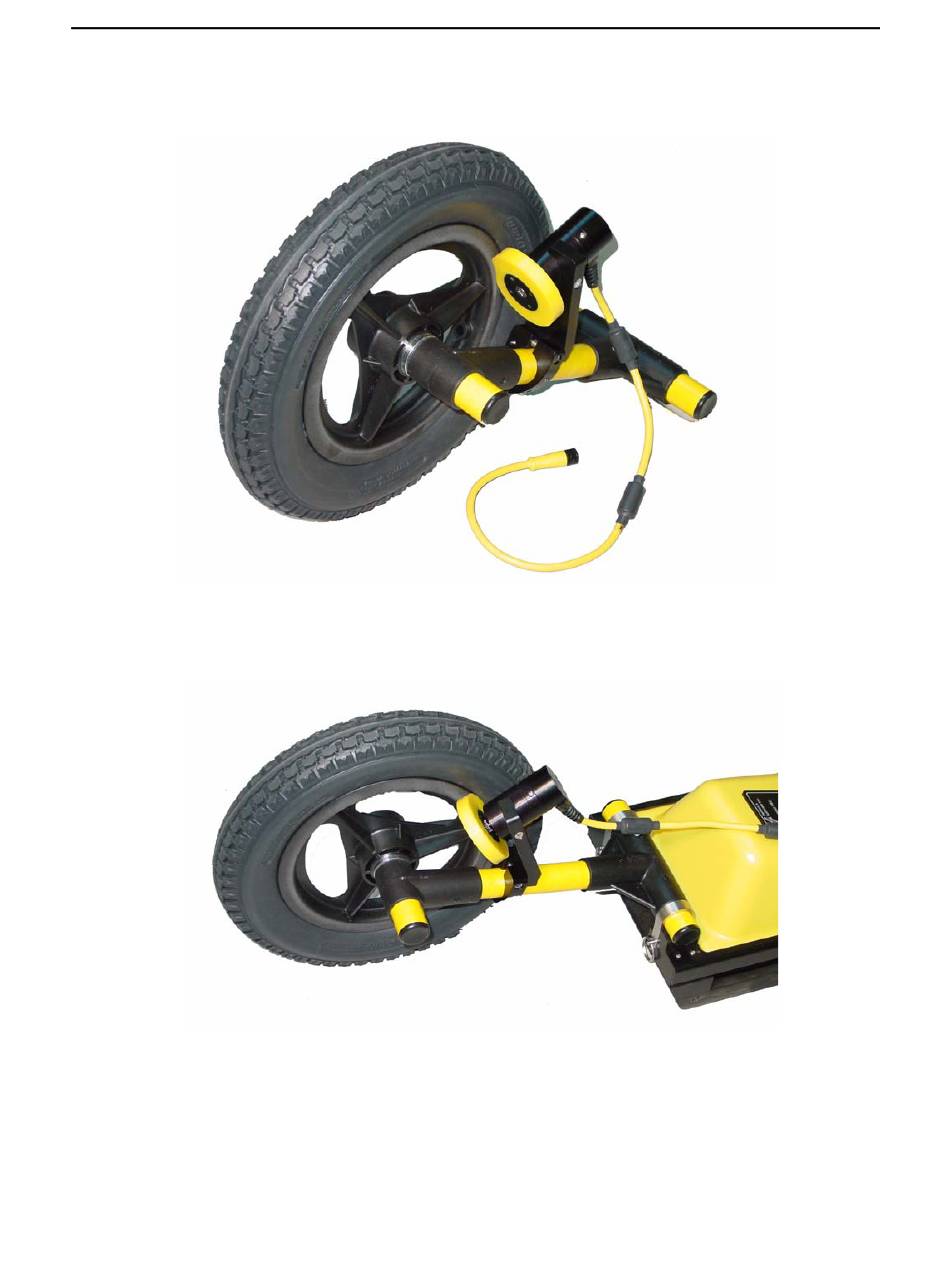

Figure 2-22: The big wheel odometer. Ensure that the small yellow odometer is tightly pressed against the rim of the wheel so that
it spins when the big wheel is rotated.
Figure 2-23: The big wheel odometer attaches to the skid plate assembly exactly the same way as the adjustable tow handle is
attached. Place the T end of the odometer into the trough on the end of the skid plate assembly. The labels on the transmitting
transducer should be facing away from this end. The T end of the odometer is attached to the skid plate assembly by placing the U-
bracket over the top and into the vertical slots. The odometer is secured into place by inserting the metal pins into the holes at the
bottom of the U bracket.
17
