pulseEKKO PRO 2-System Assembly and Startup

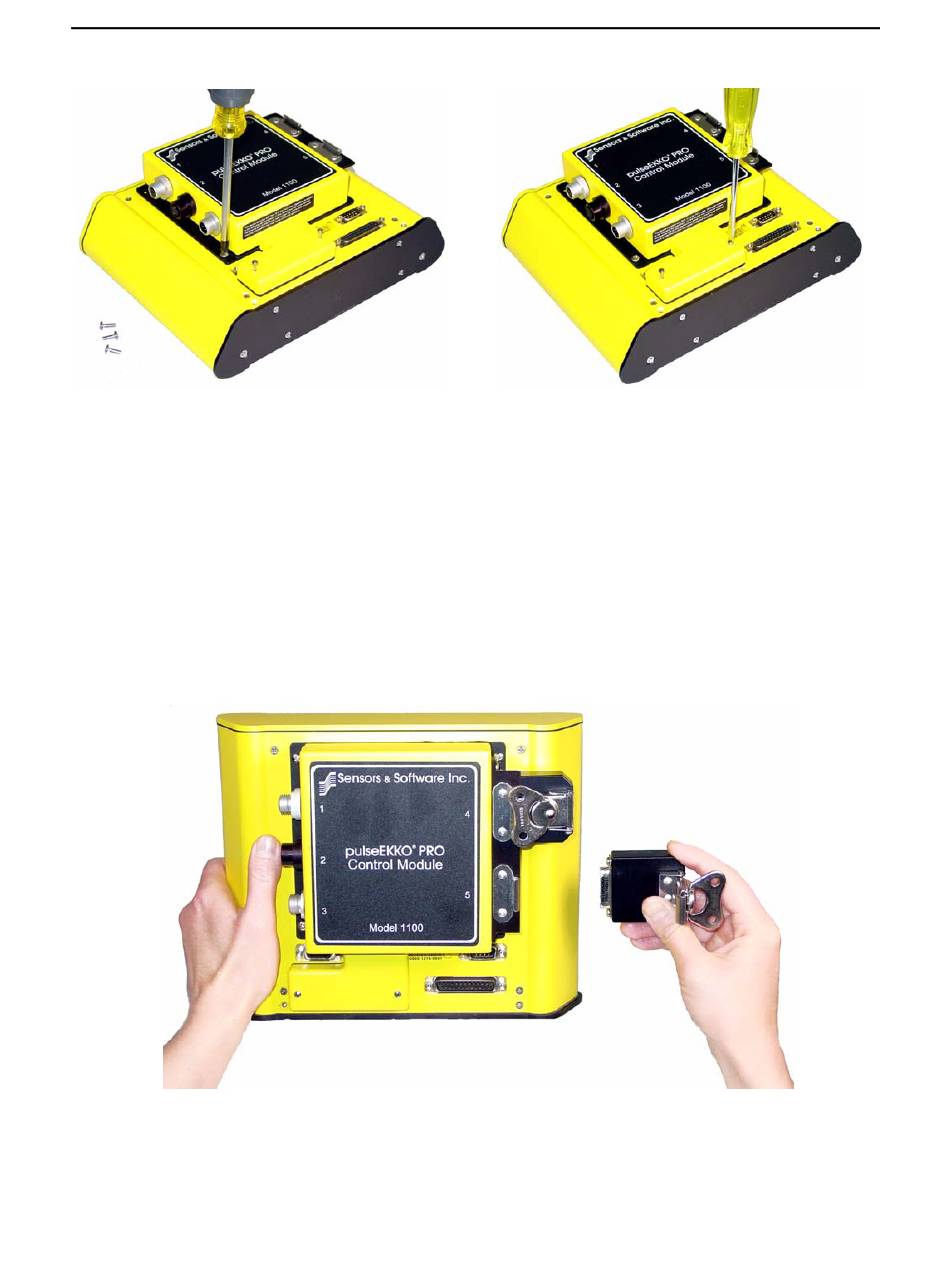

Figure 2-5: Attach the control module to the DVL using the 4 screws supplied (left) and a Phillips screwdriver (not supplied).
Tighten the 37 pin connectors into place (right) with a small slotted screwdriver (not supplied).

2.2.2 Attaching the Fibre Optic Converters for Low frequency Antennas

Low frequency, unshielded antennas in the frequency range from 12.5 to 200 MHz require fibre optic
cables to connect the transmitter and receiver to the control module. Higher frequency, shielded antennas
use electrical cables to connect the transmitter and receiver to the control module. The control module is
designed to accept both types of cables.
For low frequency antennas, the Electronic to Fibre Optic Converters must be attached to the control
module and secured using the latches (Figure 2-6).
Figure 2-6: Low frequency antennas (12.5 to 200 MHz) require the electrical to fibre optic converters to be attached to the con-
trol module and secured using the latches.
5
