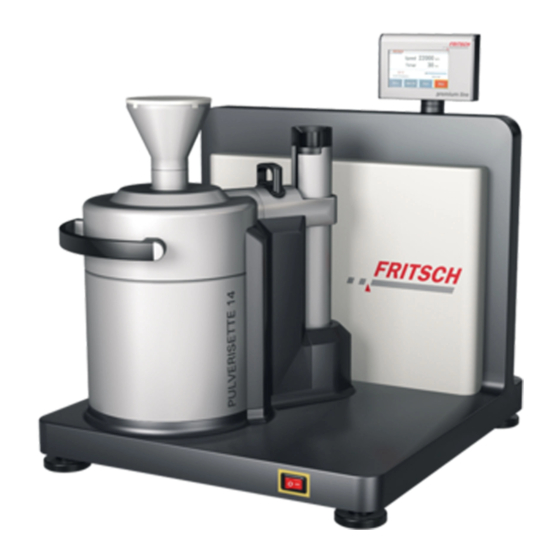

Fritsch premium PULVERISETTE 14 Operating Instructions Manual

Variable speed rotor mill
Hide thumbs Also See for premium PULVERISETTE 14:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating instructions
VARIABLE SPEED ROTOR MILL
PULVERISETTE 14 premium line
Valid starting with: 14.40X0/0001
Read the instructions prior to performing any task!
Translation of the original operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the premium PULVERISETTE 14 and is the answer not in the manual?

Questions and answers

Related Manuals for Fritsch premium PULVERISETTE 14

Summary of Contents for Fritsch premium PULVERISETTE 14

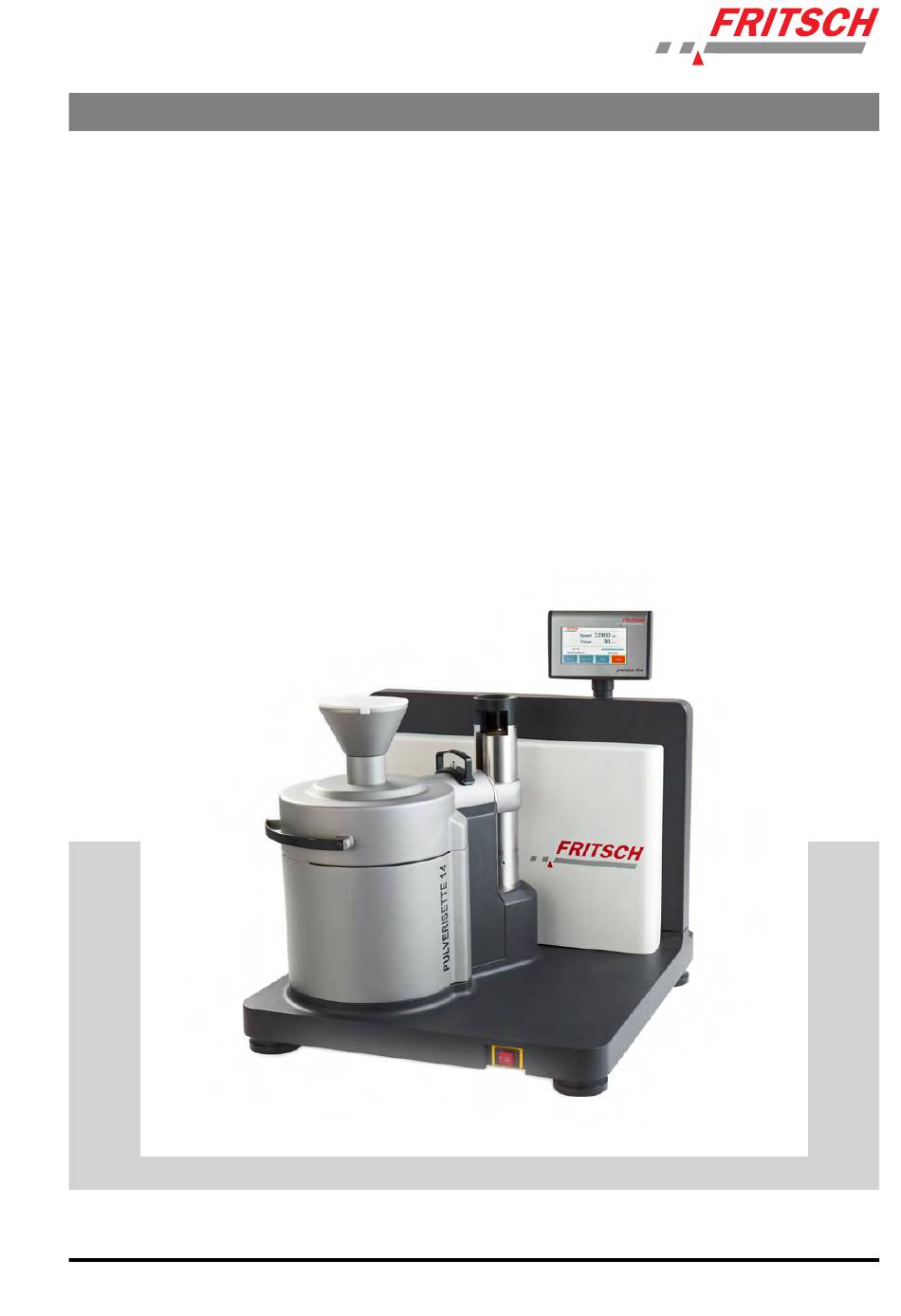

  • Page 1 Operating instructions VARIABLE SPEED ROTOR MILL PULVERISETTE 14 premium line Valid starting with: 14.40X0/0001 Read the instructions prior to performing any task! Translation of the original operating instructions...
  • Page 2 Fritsch GmbH Milling and Sizing Industriestraße 8 D - 55743 Idar-Oberstein Telephone: +49 (0)6784/ 70-0 Fax: +49 (0)6784/ 70-11 Email: info@fritsch.de Internet: www.fritsch.de Version 11/2015 Index 000...
  • Page 3 Certifications and CE conformity Certification Fritsch GmbH has been certified by the TÜV-Zertifizierungsgemeinschaft e.V. An audit certified that Fritsch GmbH conforms to the requirements of the DIN EN ISO 9001:2008. CE Conformity The enclosed Conformity Declaration lists the guidelines the FRITSCH instrument conforms to, to be able to bear the CE mark.

  • Page 4: Table Of Contents

    Table of contents Table of contents Basic structure................6 Safety information and use............7 2.1 Requirements for the user............. 7 2.2 Scope of application............... 8 2.2.1 Operating principle............. 9 2.2.2 Speed control..............9 2.3 Obligations of the operator........... 9 2.4 Information on hazards and symbols used in this manual. . 10 2.5 Device safety information............
  • Page 5 Table of contents 6.3 Installing the grinding elements........... 27 6.4 Conducting a grinding operation......... 28 6.5 Removing the grinding elements......... 29 6.6 Grinding with external cooling..........30 6.6.1 External cooling..............30 6.7 Grinding with heavy-metal-free or metal-free grinding ele- ments................... 31 6.8 Continuous feeding of source material........

  • Page 6: Basic Structure

    Basic structure Basic structure Display Main switch Funnel Collecting vessel lid Hood Collecting vessel Rotor 10 Rotor holder Sieve insert 11 Lock pin Labyrinth disk - 6 -...

  • Page 7: Safety Information And Use

    2.1 Requirements for the user This operating manual is intended for persons assigned with operating and monitoring the Fritsch PULVERISETTE 14 premium line. The oper- ating manual and especially its safety instructions are to be observed by all persons working on or with this device. In addition, the applicable rules and regulations for accident prevention at the installation site are to be observed.

  • Page 8: Scope Of Application

    Safety information and use 2.2 Scope of application NOTICE! The PULVERISETTE 14 premium line has been built according to the state of the art and in accordance with rec- ognized safety rules. During operation, however, hazards can arise for users or third parties and damage to the machine or other material property can occur.

  • Page 9: Operating Principle

    Safety information and use 2.2.1 Operating principle The fast comminution capability of the PULVERISETTE 14 premium line is due to the extremely high speed of the rotor, which is made of stainless, tempered steel. With a rotational speed of up to 111 m sec , the impact energy lies in the range of pin mills, known for their high grinding capacity.

  • Page 10: Information On Hazards And Symbols Used In This Manual

    Neither compliance with this manual nor the conditions and methods used during installation, operation, use and maintenance of the PUL- VERISETTE 14 premium line can be monitored by Fritsch GmbH. Improper execution of the installation can result in property damage and thus endanger persons.
  • Page 11 Safety information and use NOTICE! This symbol and keyword combination points out a possibly hazardous situation that can result in property damage if not avoided. Special safety information To call attention to specific hazards, the following symbols are used in the safety information: DANGER! This symbol and keyword combination points out a directly...
  • Page 12 Safety information and use Safety information in the procedure Safety information can refer to specific, individual procedure instruc- instructions tions. Such safety information is embedded in the procedure instructions so that the text can be read without interruption as the procedure is being carried out.

  • Page 13: Device Safety Information

    Safety information and use 2.5 Device safety information Please observe! Only use original accessories and original spare parts. Failure to observe this instruction can compromise the safety of the machine. Accident-proof conduct is to be strictly followed during all work. Comply with all currently applicable national and international acci- dent prevention guidelines.

  • Page 14: Protective Equipment

    Safety information and use Unauthorised alteration of the PULVERISETTE 14 premium line will void Fritsch's declaration of conformity to European directives and void the guarantee. Only use the PULVERISETTE 14 premium line when it is in proper working order, as intended and in a safety- and hazard-conscious manner adhering to the operating manual.

  • Page 15: Opening The Hood Without Mains Connection

    Safety information and use 2.6.1 Opening the hood without mains connection CAUTION! The emergency release must not be activated while the machine is running! Disconnect the machine from the mains before the emergency release. Failure to observe this will render void the guarantee, and releases us from lia- bility for any resulting damage to the device or personal injury.

  • Page 16: Electrical Safety

    Safety information and use 2.8 Electrical safety 2.8.1 General information The main switch separates the PULVERISETTE 14 premium line from the mains on two poles. Switch off the main switch if the PULVERISETTE 14 premium line is idle for a longer period of time (e.g. overnight). 2.8.2 Protection against restart In case of power failure during operation or after switching off with the main switch, the housing cover is locked.

  • Page 17: Technical Data

    Technical data Technical data 3.1 Dimensions 520 x 630 x 550 mm (width x height x depth) 3.2 Weight Weight: 44 kg (net) 3.3 Operating noise Operation condition of device during measurement: 0.2 mm sieve ring, 12-rib steel rotor with max. speed (22000 rpm), source material: Rice. Workplace-specific emission value L : 75.9 dB(A) 3.4 Voltage...

  • Page 18: Material

    Technical data 3.8 Material Maximum feeding size approx. 15 mm Maximum feeding amount when using the pan 200 ml Maximum feeding amount when using the filter sack 1000 ml 3.9 Final fineness The achievable final fineness depends largely on the sample properties and the grinding element used.

  • Page 19: Installation

    Compare the contents of your delivery with your order. Please store the transport packaging so that it can be reused if you need to return the product. Fritsch GmbH accepts no liability for damage caused by improper pack‐ aging (packaging that is not from Fritsch).

  • Page 20: Scope Of Delivery

    Installation 4.3 Scope of delivery Collecting vessel (14.4311.10) Collecting vessel lid with seal ring and O-ring (14.4320.00) Labyrinth disk (14.4300.00) Inner funnel (14.4297.10) Inner funnel 10 mm (14.4370.00) Hex key (83.4270.00) Triangular key (83.4260.00) Mains cable 4.4 Setting up DANGER! Do not step under the transport pallet during transport.

  • Page 21: Ambient Conditions

    Installation 4.5 Ambient conditions WARNING! Mains voltage – The device may only be operated indoors. – The surrounding air must not contain any electrically conductive particles. – Maximum relative humidity 80% for temperatures up to 31 °C, linearly decreasing down to 50% relative humidity at 40 °C.
  • Page 22 15 A NOTICE! Fritsch mills are speed controlled. The devices are equipped for this with frequency converters. In order to comply with the EMC directive, many measures must be taken to pre- vent operational transient emissions.

  • Page 23: Initial Start-Up

    Initial start-up Initial start-up Perform initial start-up only after all work as described in Ä ‘Installation’ on page 19 has been carried out. 5.1 Switching on Connect the device to the mains. Switch on the device with the main switch (7) on the front of the device.

  • Page 24: Using The Device

    Using the device Using the device WARNING! If the grinding elements used are not original accessories, we assume no guarantee and exclude all liability for damage to the device or for personal injury. WARNING! Make certain before starting the machine that the grinding elements have been properly installed and locked in place and that there are not any loose parts inside of the device.

  • Page 25: Rotors

    Using the device NOTICE! Risk of overheating! Due to the operating principle, the PULVERISETTE 14 pre- mium line heats up even when idling. The temperature is monitored by a safety device at the labyrinth disk and switches the device off when 80 °C has been reached. For continual comminution, plan regular breaks to allow the system to cool down and to clean it.

  • Page 26: Sieve Ring

    As a general rule, approx. 2/3 of the feeding amount is milled finer than 1/2 of the perforation diameter. Sieve rings with trapezoidal perforation, available as orig‐ inal accessories from Fritsch, can have manufacturing sieve opening tolerances of up to +/‐ 20% of the nominal mesh width.

  • Page 27: Installing The Grinding Elements

    Using the device 6.3 Installing the grinding elements The grinding elements are to be installed in the PULVERISETTE 14 pre- mium line as described in the following: Carefully set the labyrinth disk (9) on the motor mounting flange (10) until it lies flush on the motor mounting flange (10). For this, pay attention to the temperature sensor –...

  • Page 28: Conducting A Grinding Operation

    Using the device CAUTION! The PULVERISETTE 14 premium line may only be operated when all parts are in place. If one or more parts have not been inserted, an error message appears in the display. 6.4 Conducting a grinding operation CAUTION! Wear hearing protection! Hearing protection should be worn when grinding, because...

  • Page 29: Removing The Grinding Elements

    Using the device 6.5 Removing the grinding elements WARNING! Wear safety gloves! The collecting vessel and the grinding elements can become very hot after grinding. Grinding elements such as rotors, sieves and the collecting vessel can have sharp edges. For cleaning wear gloves that are safe and without defect.

  • Page 30: Grinding With External Cooling

    Using the device 6.6 Grinding with external cooling For certain source materials, using coolants before milling can be benefi- cial for comminution. For instance, soft organic materials or special plas- tics can be made brittle by briefly immersing them in liquid nitrogen or storing them in a freezer before grinding.

  • Page 31: Grinding With Heavy-Metal-Free Or Metal-Free Grinding Elements

    Using the device 6.7 Grinding with heavy-metal-free or metal-free grinding elements To eliminate the influence of even the smallest amounts of iron, it is nec- essary to install iron-free grinding elements. The following parts must be installed: 12-rib rotor made of pure titanium, a sieve ring made of pure titanium with a reinforced edge a collecting vessel coated with PTFE, a lid with titanium insert.

  • Page 32: Continuous Feeding Of Source Material

    Using the device 6.8 Continuous feeding of source material The volume of continually fed source material may not exceed the volume of the inserted collecting vessel. To feed larger quantities of a free-flowing source material, use the vibra- tory feeder "LABORETTE 24". Set the feeder on a stand next to the variable speed rotor mill so that the end of the channel is located above the funnel.

  • Page 33: Grinding With The Impact Bar Insert

    Using the device 6.9 Grinding with the impact bar insert For the article numbers, please refer to our homepage or the spare parts catalogue. Collecting vessel lid Lid seal O-ring 98 x 2 Sieve ring Impact bar Rotor Collecting vessel O-ring 98 x 2 O-ring 112 x 3 10 Labyrinth disk...

  • Page 34: Factors With An Impact On Grinding

    Using the device 6.10 Factors with an impact on grinding Source material feed rate The smaller the feed rate of source material, the larger the share of fine particles and the circulation of air. The mechanical and temperature load on the mill decrease. Optimal feeding largely depends on the sample and volume and should be determined in preliminary tests.

  • Page 35: Control Panel

    Using the device 6.11 Control panel When the mill is switched on, the values of the last milling are displayed. Other parameters can be selected by clicking on the [Menu] button in order to change the following settings: Parameter: Speed settings from 6000 - 22000 (1/min), selectable in steps of 1000.

  • Page 36: Cleaning

    Cleaning Cleaning DANGER! Mains voltage! – Before beginning with cleaning work, disconnect the mains plug and protect the device against being unin- tentionally switched back on! – Do not allow any liquids to flow into the device. – Indicate cleaning work with warning signs. –...

  • Page 37: Maintenance

    Maintenance Maintenance DANGER! Mains voltage – Before beginning with maintenance work, unplug the mains plug and protect the device against being unin- tentionally switched back on again! – Indicate maintenance work with warning signs. – Maintenance work may only be performed by special- ised personnel.
  • Page 38 Maintenance Turn the PULVERISETTE 14 premium line over onto the left side of the housing. Loosen the 4 hexagon screws holding the filter mat. Remove the filter mat and rinse it under running water. Thor- oughly dry the filter mat before remounting it. If the filter mat is heavily soiled or damaged, replace it with a new one.

  • Page 39: Repairs

    Repairs Repairs DANGER! Mains voltage! – Before beginning with repair work, unplug the mains plug and protect the device against being unintention- ally switched back on. – Indicate repair work with warning signs. – Repair work may only be performed by specialised per- sonnel.

  • Page 40: Disposal

    FRITSCH declares it is prepared to take back used FRITSCH devices for recycling or disposal free of charge whenever a new device is purchased. The used FRITSCH device must be delivered free of charge to a FRITSCH establishment. In all other cases FRITSCH takes back used FRITSCH devices for recycling or disposal only against payment.

  • Page 41: Guarantee Terms

    Guarantee terms Guarantee period As manufacturer, FRITSCH GmbH provides – above and beyond any guar- antee claims against the seller – a guaranty valid for the duration of two years from the date of issue of the guarantee certificate supplied with the device.
  • Page 42 Any servicing done by persons not authorised by us and any use of parts that are not original FRITSCH accessories and spare parts will void the guar- antee.

  • Page 43: Exclusion Of Liability

    FRITSCH GMBH distributor or Fritsch GmbH, Industriestr. 8, D-55743 Idar-Oberstein. FRITSCH GMBH takes the greatest care to ensure that the quality, relia- bility and safety of your products are continuously improved and adapted to the state of the art. The supplied products as well as this operating manual conform to the current state of the art when they leave the sphere of influence of FRITSCH GMBH.
  • Page 44 Exclusion of liability Fritsch GmbH excludes any liability, warranty, or other obligation to com- pensate for damages, regardless of whether this liability, warranty, or other obligation is explicit or implicit, contractual or arising from unlawful acts or prescribed contractually, by law, or otherwise. In no...

  • Page 45: Safety Logbook

    Safety logbook Safety logbook Date Maintenance / Repair Name Signature - 45 -...

  • Page 46: Index

    Index Index sieve perforation size ....34 Source material feed rate ....34 Accident prevention .

  • Page 48: Industriestraße

    © 2015 Fritsch GmbH Milling and Sizing Industriestraße 8 D - 55743 Idar-Oberstein Telephone: +49 (0)6784/ 70-0 Fax: +49 (0)6784/ 70-11 Email: info@fritsch.de Internet: www.fritsch.de...
