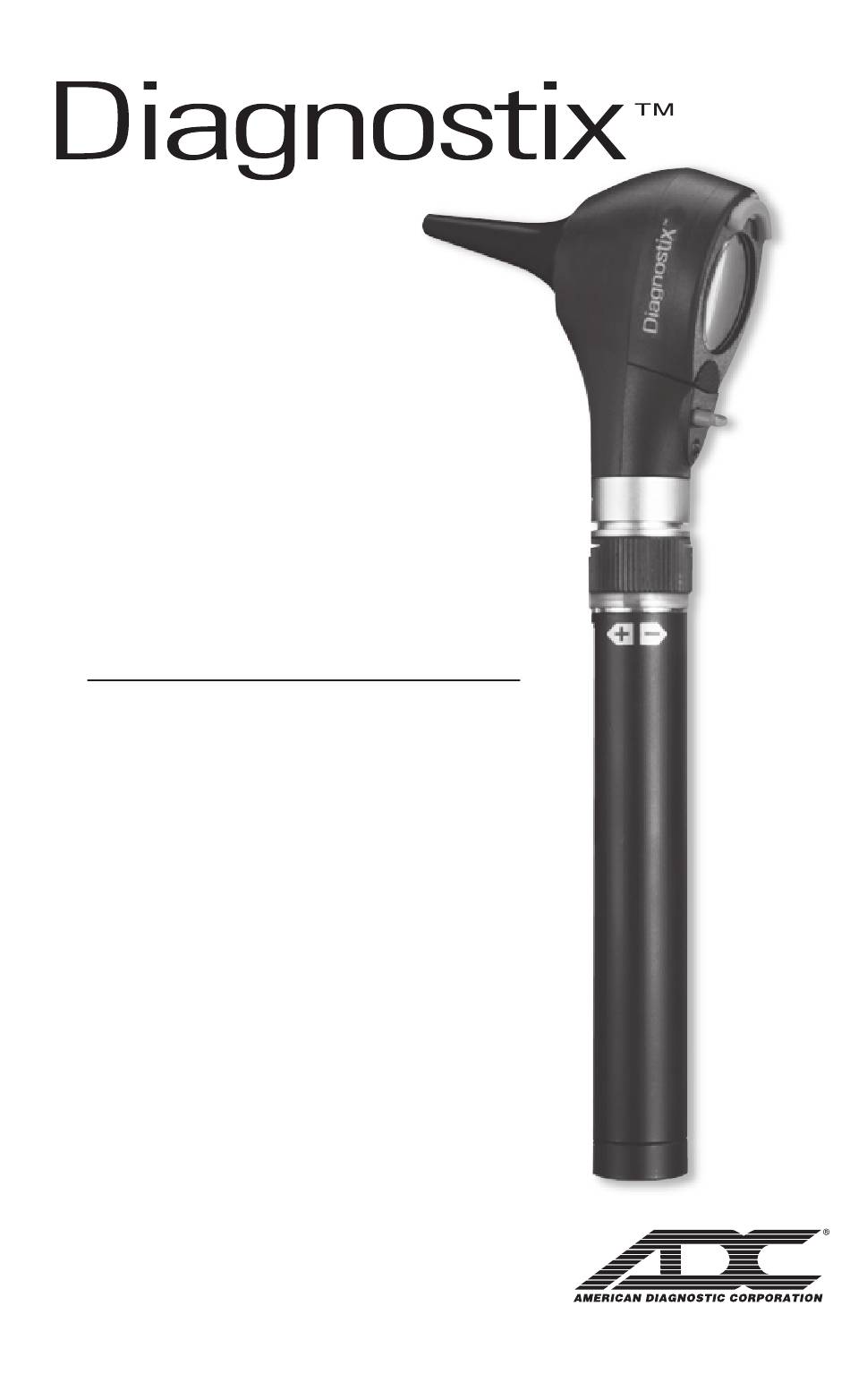

- Page 1 Otoscope Coax Ophthalmoscope Dermascope Throat Illuminator Power Handles Instruction Manual Questions? Call ADC toll free: 1-800-232-2670...
-
Page 2: Table Of Contents
Diagnostix EENT Instruments Table of Contents 1. A Special Thank You 2. Introduction - Intended Use 3. Warnings and Precautions 4. Battery Handles and Initial Use 5. Instrument Heads 6. Diagnostix ® Otoscope 9-10 7. Diagnostix ® Ophthalmoscope 10-12 8. Diagnostix ®... - Page 3 Diagnostix Diagnostix Otoscope Otoscope Diagnostix Diagnostix Coax Plus Coax Ophthalmoscope Ophthalmoscope Diagnostix Diagnostix Dermascope Throat Illuminator...
-
Page 4: A Special Thank You
This feature rich instrument was designed to simplify physical exams and non- invasive diagnostics, and with proper use and care these instruments will provide many years of dependable service. ® Read this booklet thoroughly before attempting to use your new ADC Diagnostix ™ EENT instrument. - Page 5 Never attempt to take the instrument apart! There is a danger of life-threatening electrical shock. Unplug the instrument before cleaning or when disinfecting. Warning: Do not use batteries, electrical cords other than those included with this product or replacement parts supplied by the manufacturer. Warning: Because prolonged intense light exposure can damage the retina, the use of the device for ocular examination should not be unnecessarily prolonged, and the brightness setting should not exceed what is needed to provide clear visualization of the target structures.
-
Page 6: Battery Handles And Initial Use
3.5v (requires desk charger) Plug-In Rechargeable Handle 5460 3.5v, 230v or 120v Note: These handles are compatible with ADC , Riester*, and Welch Allyn* ® 3.5v instrument heads. * Welch Allyn is a registered trademark. * Riester is a registered trademark 4.3. - Page 7 Plug-in Handle Prior to initial use of the plug-in handle, it should be charged for up to 24 hours in the mains socket. To charge Diagnostix standard rechargeable handles, desk charger base (# 5500) is required. Follow “Instructions for Use” supplied with desk charger. Rechargable Recharger Base To change plug-in handle, remove top...
- Page 8 NOTE: Locking the head is recommended on wall mounted systems only. 4.6 Adjusting the Light Intensity With the ADC ® Adtronic electronic rheostat, it is possible to modulate the light intensity.
-
Page 9: Instrument Heads
® Diagnostix Otoscope described in these Operating Instructions is produced for illumination and examination of the auditory canal in combination with the ear specula. The ADC ® Diagnostix Otoscopes are compatible with Riester, or Welch Allyn speculum. 6.2. Fitting and Removing Ear Specula Screw the speculum clockwise until noticeable resistance is felt. -
Page 10: Diagnostix Ophthalmoscope
Otoscope LED 3.5 V 3.5 V 28 mA mean life span 100,000h 7. DIAGNOSTIX ® OPHTHALMOSCOPE 7.1. Purpose The ADC Diagnostix Ophthalmoscope described in ® these Operating Instructions is produced for the examination of the eye. 7.2. Lens Wheel with Correction Lens correction lens can be adjusted on the lens wheel. - Page 11 Coax Ophthalmoscope: Semi-circle, small/medium/large circular aperture, fixation star and slit. Coax Plus Ophthalmoscope: Semi-circle, small/medium/large circular aperture, fixation star, slit and grid. Aperture Function Model(s) Half Moon For examinations with turbid lenses Coax/Coax Plus Micro Spot Allows quick entry into small, undilated pupils Coax/Coax Plus Small Circle Excellent view of fundus through an undilated pupil Coax/Coax Plus...
-
Page 12: Diagnostix
Blue filter: For improving recognition of vascular abnormalities or bleeding, for fluorescence ophthalmology. 7.5. Focusing Device (Coax Plus) Fast fine adjustment of the examination area to be observed is achieved from various distances by turning the focusing daisywheel (Fig. 9). (Fig 9) 7.6. -
Page 13: Diagnostix Throat Illuminator
Insert a new lamp. CAUTION: The pin on the ophthalmoscope lamp must be inserted into the guide groove on the instrument head. *Use only ADC ® , or Riester lamps. 11. SPARE PARTS AND ACCESSORIES For a complete list of our physical exam instrument spare parts and accessories, please visit our website at www.adctoday.com. -
Page 14: Cleaning And Disinfection
12. CLEANING AND DISINFECTION Cleaning and disinfection of the medical devices serves to protect the patient, the user and third parties and to preserve the value of the medical devices. Due to the product design and the materials used, no defined limit can be specified for the maximum number of reprocessing cycles that can be carried out. -
Page 15: Technical Specifications
14. MAINTENANCE These instruments and their accessories do not require any specific maintenance. Should an instrument have to be examined for any specific reason whatsoever, please return it to ADC ® 15. ELECTROMAGNETIC COMPATIBILITY Medical electrical equipment is subject to special precautionary measures with regard to electromagnetic compatibility (EMC). - Page 16 Guidelines and manufacturer's declaration - electromagnetic emissions The Diagnostix insrument is intended for operation in an electromagnetic environment as specified below. The customer or the user of the Diagnostix instrument should ensure that it is used in such an environment. Emission Electromagnetic Environment Compliance...
- Page 17 Guidelines and manufacturer's declaration - electromagnetic emissions The Diagnostix instrument is intended for operation in an electromagnetic environment as specified below. The customer or the user of the Diagnostix instrument should ensure that it is used in such an environment. Immunity IEC 60601 Compliance...
- Page 18 Guidelines and manufacturer's declaration - electromagnetic immunity This model is intended for operation in the electromagnetic environment specified below. Diagnostix Instrument The customer or the user of this should ensure that it is used in such an environment. Diagnostix instrument Immunity IEC 60601 Compliance...
-
Page 19: Warranty
Recommended safety distances between portable and mobile HF communication devices and the Diagnotix ® This Diagnostix instrument is intended for operation in an electromagnetic environment in which the radiated HF interference is monitored. The customer or user of this Diagnostix instrument can help prevent electromagnetic interference by observing minimum distances between portable and mobile HF communication equipment (transmitters) and this Diagnostix instrument... -
Page 20: Quality Standards
1 800 232 2670 Made in Germany 55 Commerce Drive Inspected and Packaged in the U.S.A. Hauppauge, NY 11788 tel: 631-273-9600 ADC (UK) Ltd. toll free: 1-800-232-2670 Unit 6, PO14 1TH fax: 631-273-9659 United Kingdom www adctoday com Consult instructions for use email: info@adctoday.com...
