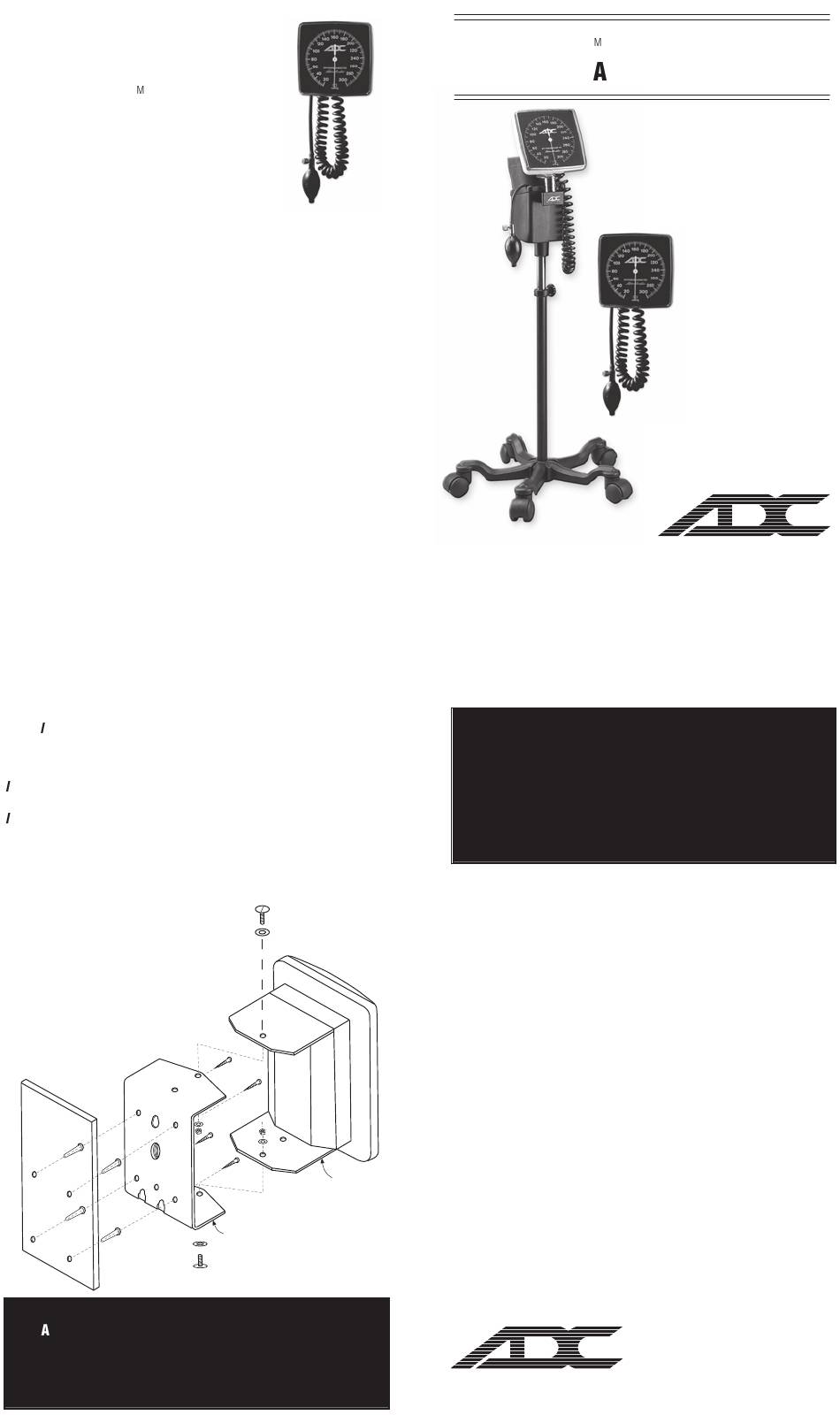

ADC Diagnostix 752M Assembly Instructions

Wall Mounting
Instructions for the
Diagnostix 750W
T
• Medium phillips head screwdriver
Tools Needed
• Hammer
• Drill with 3/16" drill bit
1. Position manometer (with attached wall bracket) on wall
Directions
at desired location and rotate gauge to right side to
permit access to left side mounting holes on bracket.
Make pencil marks on wall through the mounting holes.
Holding bracket firmly in place, rotate gauge to left side
to permit access to right side mounting holes. Make
pencil marks on wall through the mounting holes.
Recommended height is near the eye level of the
intended users.
2. At each of the four pencil marks, drill a 3/16" hole
approximately 7/8" deep. Use a masonry type bit if
drilling through ceramic tile.
3. Gently tap the 4 screw anchors into the holes until they
are flush with the wall.
4. Position the manometer and bracket over the screw
holes and screw bracket into wall first on one side, then
the other using the procedure outlined in step one to
gain access to each of the four mounting holes. Take
care not to over tighten screws.
5. Attach 8 foot length of coiled tubing to air inlet at bottom
of manometer.
Insert "male" luer connector on free end of coiled tubing
to "female" luer connector on bladder tubing. Wrap cuff
around bulb and store in mounting bracket/storage
compartment behind gauge.
Note: f the mounting hardware supplied is not suitable for the
application, select hardware of adequate size and type to secure
the instrument firmly to the wall.
mportant: The instrument is designed to permit wall mounting
without having to first remove the bracket from the instrument.
f the instrument is removed from the bracket for mounting or
service, we recommend applying removable loctite
bracket hardware to prevent the instrument from working loose.
Locktite can be obtained from most hardware stores.
C UTION: Ensure that the unit is securely mounted
prior to use to avoid damage to the instrument
and/or potential injury.
