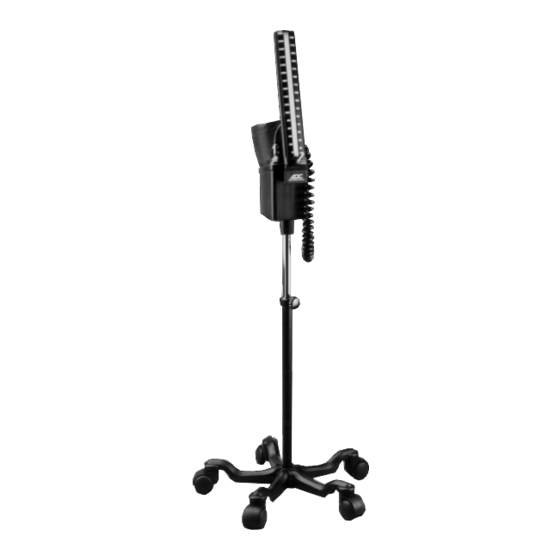

Summary of Contents for ADC Diagnostix 922

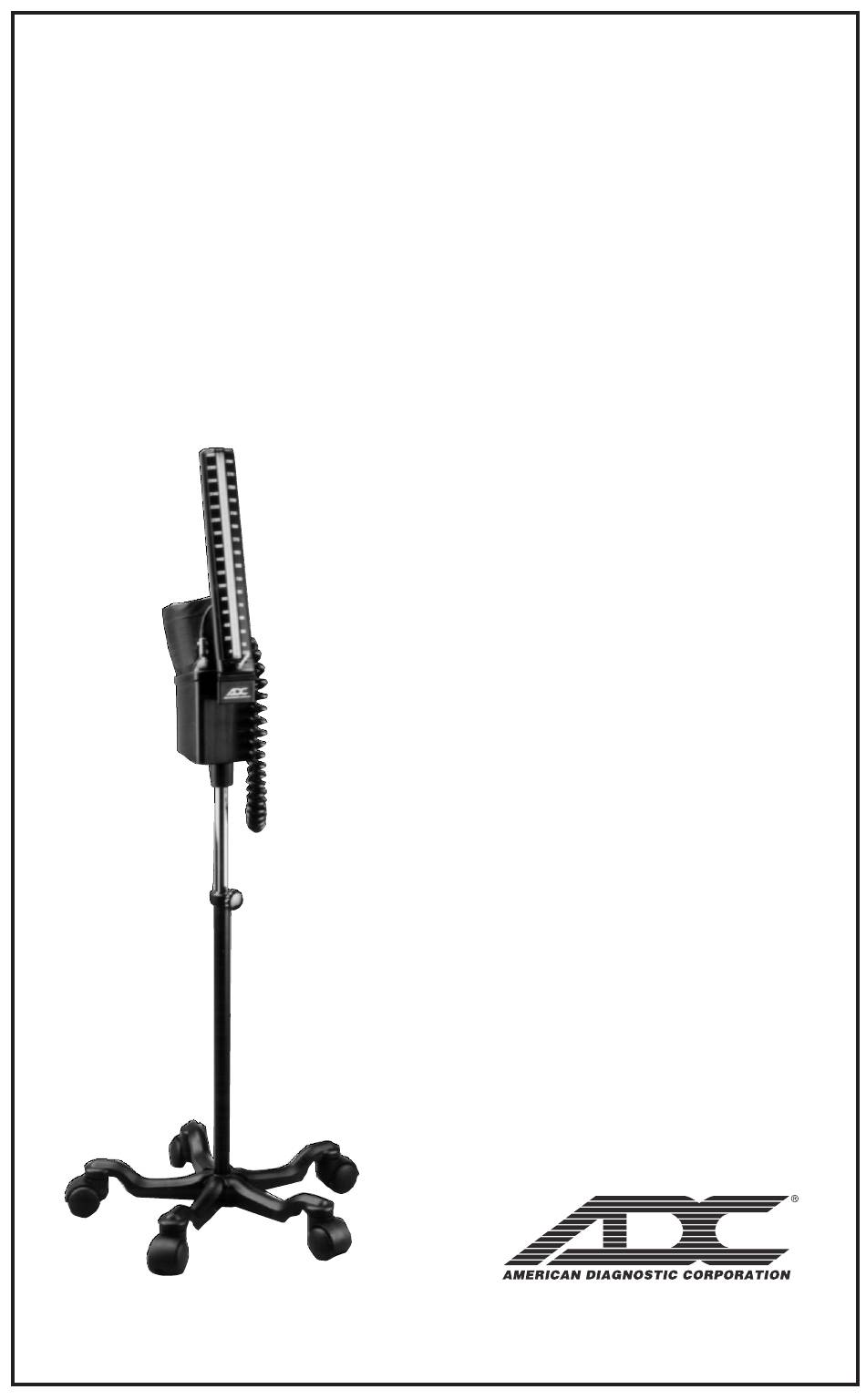

- Page 1 JUST IN CASE... ADC GUIDELINES for the Proper Maintenance, Handling, Cleanup, and Transportation of Mercurial Blood Pressure Devices...
-
Page 2: Preventive Maintenance
You’ll quickly appre- ciate the results for you now own the most intelligently designed, feature-rich mercurial sphygmomanometer that money can buy. With proper care and maintenance your ADC DIAGNOSTIX Mercury ™ Sphygmo manometer is sure to provide you with many years of dependable service. - Page 3 Note: The diaphragm filter is designed to dampen oscillations of the mercury during inflation and deflation while preventing escape of the mercury. If clogged due to accidental over inflation, it may require re- placement. 3. The graduated plastic tube should be clean. If it is streaked with mercury which has oxidized, the tube and mercury should be cleaned as described in this booklet.
- Page 4 Then replace the knurled cap at the top of the graduated plastic tube, and screw it down firmly. REMOVING THE GRADUATED PLASTIC TUBE ADC’s EZ-Tube system facilitates removal of the 5mm graduated ™ plastic cartridge tube. To remove, follow these steps: 1.
- Page 5 4. To replace tube, lift EZ-Tube ™ mechanism and insert base of tube into main unit, being sure graduation marks face out. Next, position top of tube and release EZ-Tube ™ mechanism. On 922 re- place by sliding down through top cap opening and position. Se- cure top cap by turning clockwise until tight.
- Page 6 The suction pump, sponges, and powder are available through labora- tory and safety supply companies. As a convenience to our customers, a mercury spill kit may be obtained directly from ADC by calling our customer service de- partment toll-free at 1-800-ADC-2670 (p/n 980SK).
- Page 7 ADC. Call our customer service department toll-free at 1-800- ADC-2670 and ask for ADC part number 980SK. We will be glad to rush one out to you immediately.
- Page 8 How do I return a broken unit? Regardless of whether or not the unit is intact (no mercury leakage) it may be returned to ADC for service via UPS only (USPS does not author- ize shipment of mercury). When returning an intact mercurial unit, be sure to include a note listing your name, address, daytime phone num- ber, and symptoms of the unit.
-
Page 9: Packing And Shipping Instructions
Please note that the mercury return kit is NOT necessary but is provided as a con- venience. If you choose not to use an ADC return kit, you will need a leak-proof, sealable 3 mil plastic bag (for each unit), rubber bands/twist ties/fasteners, a 200 test corrugated carton, and the ap- propriate shipping labels. - Page 10 ADC dealer will provide you with the SDS upon request. The information contained within this guide is provided in good faith and is believed to be correct as of the date published. ADC makes no representation as to the completeness or accuracy of the information.
- Page 11 PROBLEM LIKELY CAUSE RESOLUTION • Add mercury by following the in- • Insufficient Air Bubble in car- structions in this manual amount of mercury tridge tube during • To remove trapped air, tap reservoir • Air trapped in inflation while system is inflated reservoir •...
- Page 12 ADC PROBLEM SOLVING GUIDE Questions or Comments Call Toll-Free 1-800-ADC-2670 www adctoday com To Register Your Product, visit us at www.adctoday.com and follow the links Consult this manual for basic service and maintenance procedures mentioned in this troubleshooting guide. If any of the problems persist, contact ADC’s Customer Service Department...
