Puretec HybridPlus Series User Manual

Puretec HybridPlus Series User Manual

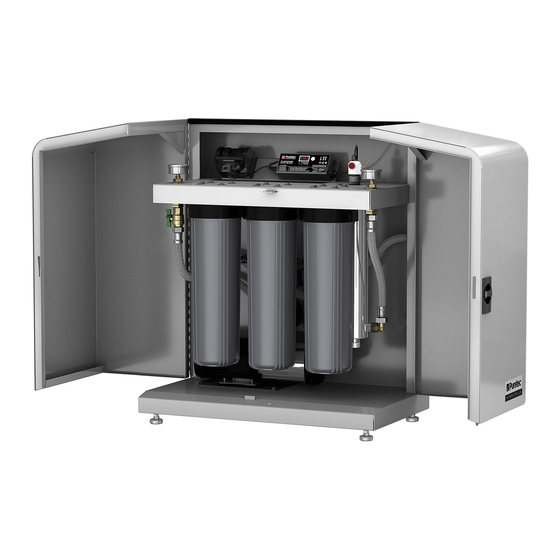

Complete household water filtration & pressure system

Advertisement

Quick Links

WMTS103:2016
Certificate No. WM 74593
Australian Certification
Services
SEPT2020
SURGE PROTECTION
REQUIRED /
NO EXTENSION CORDS.
Complete Household Water Filtration & Pressure System
For correct operation & installation, it is essential to observe these instructions.
User Guide
HybridPlus™ Series
DO NOT OVERTIGHTEN.
DO NOT USE
LIQUID SEALANTS.
SURGE PROTECTION
REQUIRED /
NO EXTENSION CORDS.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HybridPlus Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Puretec HybridPlus Series

  • Page 1 DO NOT OVERTIGHTEN. DO NOT USE LIQUID SEALANTS. SURGE PROTECTION REQUIRED / NO EXTENSION CORDS. SURGE PROTECTION REQUIRED / NO EXTENSION CORDS. User Guide HybridPlus™ Series WMTS103:2016 Certificate No. WM 74593 Complete Household Water Filtration & Pressure System Australian Certification Services For correct operation &...
  • Page 2: Table Of Contents

    Cartridge Replacement Procedure ................18 Lamp Replacement Procedure ..................19 Quartz Sleeve Maintenance/Replacement Procedure ........20 Troubleshooting Guide ...................... 23 Warranty ............................ 25 Product Information Distributor: Installer: Phone: Date Installed: Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
  • Page 3: Puretec Customer Service

    The HybridPlus systems are suitable for tank only, mains water back-up, bore water and surface water treatment (subject to water quality) but can be used in other situations. For other types of water supply please contact your local Puretec stockist or call our Puretec Customer Service Helpline on 1300 140 140 (Australia) or 0800 130 140 (New Zealand).
  • Page 4: Preparing Your System

    Preparing the system Preparing Your System Puretec systems are designed to run economically for many years, dependent on the initial installation and periodical maintenance. Please read all instructions carefully as failures caused by incorrect installation or operation are not covered by warranty.
  • Page 5: Positioning Your System

    (non-replaceable) to protect the circuit. The fuse is not a lightning arrester and may not protect the Radfire if lightning or a very powerful surge hits the unit. A suitable surge protection device has been provided with this product. Puretec recommends the use of a surge protector (the one supplied or otherwise) or warranty may be voided.
  • Page 6: Installation Requirements

    Installation Requirements Installation Requirements • Puretec HybridPlus systems should be protected from harsh environments where overexposure to salt or aggressive chemicals can occur. • Cold water line only. • Power supply: AC 240V | 50Hz • Supply pressure: 300-520 kPa. Install pressure limiting valve if pressure exceeds 520 kPa.
  • Page 7 INSTALLATION SHOULD BE COMPLETED BY QUALIFIED TRADESPEOPLE. FAULTY OPERATION DUE TO UNQUALIFIED PERSONS WILL RESULT IN VOIDED WARRANTY COVERAGE. HYBRIDPLUS SERIES | Complete Household Water Filtration & Pressure System...
  • Page 8: Initial Installation Procedure

    Installation Procedure Initial Installation Procedure The Puretec HybridPlus Series has 1" [25mm] plumbing connections. It can be configured so the water inlet/outlets and the power cord can be installed on the left or right of the unit. This allows extra flexibility for a variety of installations. The unit comes with the water inlet connections on the left and the outlets on the right side of the unit.
  • Page 9 Rubber Gasket Ensure cutout on Secure the coupling on the outside coupling locks down into of the unit with the rubber gasket the wall of the unit. & coupling nut. HYBRIDPLUS SERIES | Complete Household Water Filtration & Pressure System...
  • Page 10 Rainwater Hose to Filters INTRODUCTION REV. SUPPLY SPECIFICATION DRAWN BY DATE 25/02/2020 PETER KENNEDY DIMS. +- 1.0mm +- 0.5mm 0.00 +- 0.1mm DIMENSIONS ARE IN MILLIMETRES ANGLES: +- 1.0deg. 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
  • Page 11 Hose to Filters Extras provided : Rubber Pump Mat 2 x couplings 2 x hoses DIMS. +- 1.0mm +- 0.5mm 0.00 +- 0.1mm DIMENSIONS ARE IN MILLIMETRES ANGLES: +- 1.0deg. HYBRIDPLUS SERIES | Complete Household Water Filtration & Pressure System...
  • Page 12 260 mm in front of the unit for the swing doors and 700 mm clearance above the unit for lamp changes (see Fig 5). A power outlet is required. 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
  • Page 13 & secure to the platform/ slab (anchor bolts not included). INTRODUCTION REV. MODIFICAT SUPPLY SPECIFICATION DERIVED FROM HYBRIDPLUS SERIES | Complete Household Water Filtration & Pressure System DRAWN BY DATE APPROVED BY PETER KENNEDY 25/02/2020 ROSS BUTCHER DIMS. +- 1.0mm +- 0.5mm...
  • Page 14 GREEN LED is illuminated (refer Lamp Replacement Procedure on pg.14). 18. Close and lock the swing doors. Note: Your cabinet comes with 2 keys for your convenience. Please store them safely. Note: Lost or misplaced keys are not covered by warranty. 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
  • Page 15: Uv Lamp Diagram

    UV Lamp Diagram Fig. 9 UV Lamp Diagram Grounding Wire Safety Cap Aluminium Nut Lamp O-ring Water Outlet Stainless Steel Chamber Water Inlet O-ring Aluminium Nut HYBRIDPLUS SERIES | Complete Household Water Filtration & Pressure System...
  • Page 16: Operation

    To silence the 'lamp life end' alarm for 7 days, press and hold on the silver button until 'delay' appears on the screen. Lamp Ballast Specifications AC 240V | 50Hz Lamp Power: 35W~95W Lamp Current: 0.8A~0.9A Ambient Temperature: 4~40°C Lamp Rated Life: 365 days Caution: Ground the ballast casing to avoid possible high voltage shock hazard 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
  • Page 17: Replacement Parts Guide

    To maintain a high quality of purified water, the cartridges will need changing periodically (dependent on water quality and usage). You can obtain replacement cartridges from your local Puretec dealer. To maintain performance, warranty and Australian Standards use genuine Puretec replacements.
  • Page 18: Cartridge Replacement Procedure

    Close down stream tap and check the Hybrid system for leaks. Flush system for 1-2 minutes after any period of non-use more than 2 weeks. For a period of non-use of 6 months or more, it may be necessary to replace the cartridges. 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
  • Page 19: Lamp Replacement Procedure

    6 the LED will turn green). Restore water supply and check the unit for leaks. Re-check the unit after 1 hour. Replacing UV Lamp Note: For initial use, wait 3-5 minutes to allow water to pass through the whole unit. Turn on a downstream tap to let water flow through the unit for 2-3 minutes to release air and impurities from system. O Ring HYBRIDPLUS SERIES | Complete Household Water Filtration & Pressure System...
  • Page 20: Quartz Sleeve Maintenance/Replacement Procedure

    O Ring Slowly remove the UV lamp from the chamber. valve mins Unscrew and remove the aluminium nut on the Replacing UV Lamp 20 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020 O Ring...
  • Page 21 Do not let go of the lamp until the lamp is securely connected to the socket. valve Never touch the quartz (glass) and lamp surface as marks or Replacing UV Lamp fingerprints may interfere with UV transmission. If lamp is soiled, please clean lamp with an alcohol based cleaner. HYBRIDPLUS SERIES | Complete Household Water Filtration & Pressure System...
  • Page 22 11. Restore water supply and check unit for leaks. Check the unit again after 1 hour. Note: For initial use, wait 3-5 minutes to allow water to pass through the whole unit. Turn on a downstream tap to let the water flow through the unit for 2-3 minutes to release any air and impurities from system. 12. Close and lock the swing doors. Your cabinet comes with 2 keys for your convenience. Please store them safely. Note: Lost or misplaced keys are not covered by warranty. 22 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
  • Page 23: Troubleshooting Guide

    No power at AC power outlet. • Replace fuse or reset • Power cord is damaged. breaker. • Power surge caused damage • Replace power cord. to electrical assembly. • Replace ballast. cont. over page. HYBRIDPLUS SERIES | Complete Household Water Filtration & Pressure System...
  • Page 24 HybridPlus P3, P6, P9 & P12 models incude a Grundfos pump guide with your unit, please refer the Grundfos guide for troubleshooting or for assistance please ring the Puretec Customer Service Helpline on 1300 140 140 (AU) or 0800 130 140 (NZ). 24 Installation & Operation Manual...
  • Page 25: Warranty

    Applicable to all above, is that the warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs...
  • Page 26 This page was intentionally left blank. 26 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
  • Page 27 This page was intentionally left blank. HYBRIDPLUS SERIES | Complete Household Water Filtration & Pressure System...

This manual is also suitable for:

Hybridplus p3Hybridplus p6Hybridplus p9Hybridplus p12
