MAX30205 Human Body
Temperature Sensor Evaluation Kit

General Description

The MAX30205 evaluation kit (EV kit) provides a
convenient way to evaluate the MAX30205 human body
temperature sensor. The sensor uses a high-resolution,
sigma-delta, analog-to-digital converter to accurately
measure temperature and convert it to digital form. The
2
kit includes a USB-to-I
C controller and GUI program to
simplify evaluation.
Features
● Quick Evaluation of the MAX30205
● USB Powered
● Full Assembled and Tested
®
● Windows
7, 8, and 10-Compatible Software

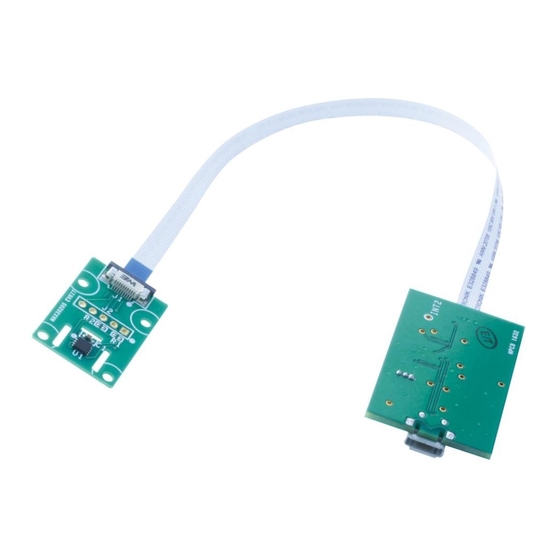

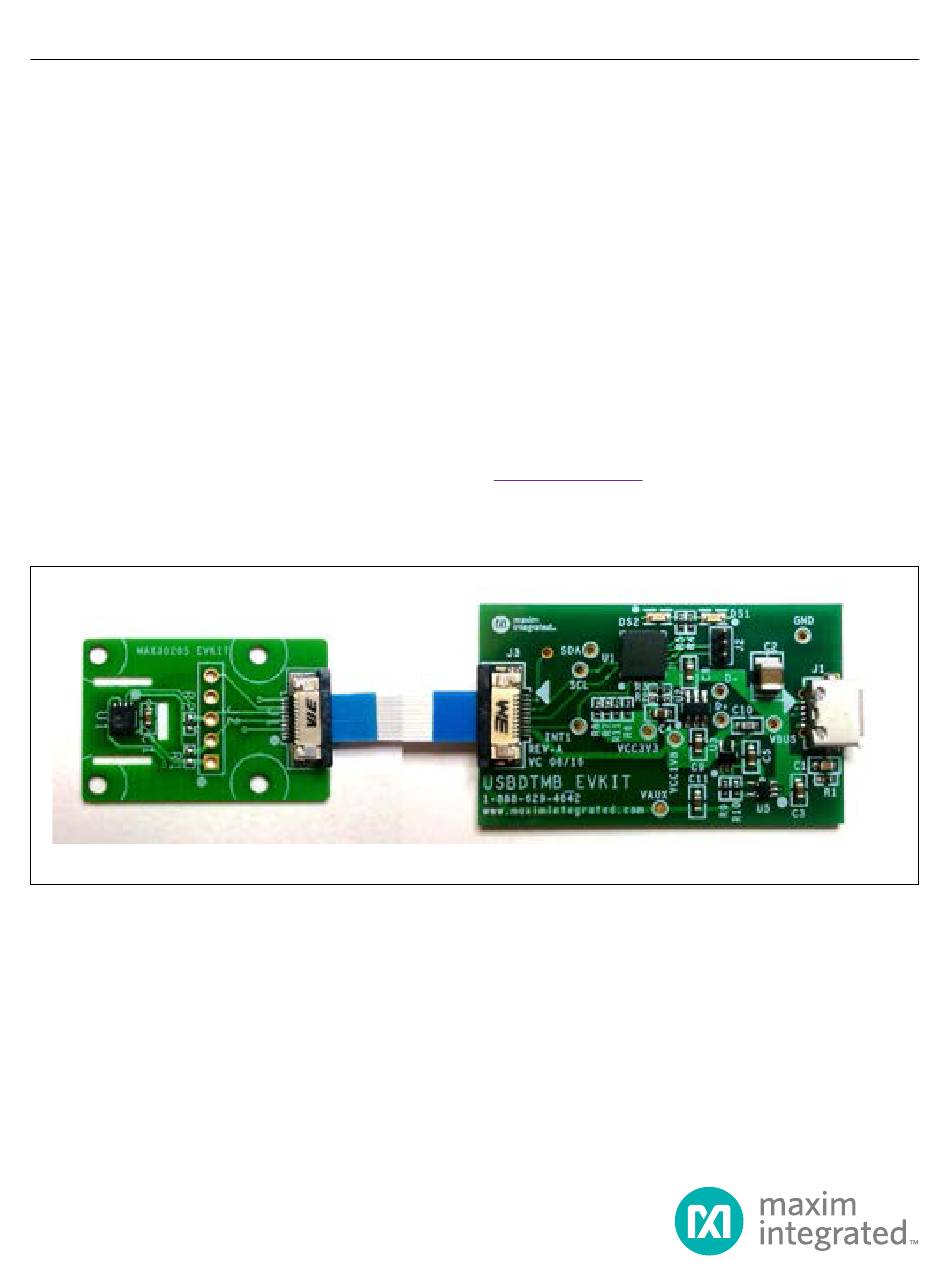

Figure 1. MAX30205 EV Kit Temperature Sensor and USBDTMB Controller PCB
Windows is a registered trademark and service mark of Microsoft Corp.
19-8587; Rev 0; 9/16
Evaluates: MAX30205

Quick Start

Required Equipment

●
MAX30205 EV kit temperature sensor PCB
●
MAX30205 EV kit USBDTMB PCB
●
MAX30205 EV kit 10-pin flex cable
●
Micro-USB cable
●
MAX30205 EV kit GUI program
●
Windows PC
Ordering Information
appears at end of data sheet.
