MAXREFDES32# ZedBoard
Quick Start Guide
Rev 0; 5/14
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim Integrated's website at www.maximintegrated.com.
Maxim Integrated cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim Integrated product. No circuit
patent licenses are implied. Maxim Integrated reserves the right to change the circuitry and specifications without notice at any time.
© 2014 Maxim Integrated Products, Inc.
Maxim Integrated and the Maxim Integrated logo are trademarks of Maxim Integrated Products, Inc.
Advertisement
Table of Contents
Related Manuals for Maxim Integrated MAXREFDES3
Summary of Contents for Maxim Integrated MAXREFDES3
- Page 1 For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim Integrated’s website at www.maximintegrated.com. Maxim Integrated cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim Integrated product. No circuit patent licenses are implied.
-
Page 2: Table Of Contents
MAXREFDES32# ZedBoard Quick Start Guide Table of Contents 1. Required Equipment ....................3 2. Overview ........................3 3. Boot from an SD Card ....................3 4. Download Demonstration from Xilinx SDK ............... 8 5. Included Files ......................9 6. Procedure ....................... 10 7. -
Page 3: Required Equipment
MAXREFDES32# ZedBoard Quick Start Guide 1. Required Equipment • MAXREFDES32# board • ZedBoard Rev C development kit • Industrial sensor or signal source • To run the binary from SD card: o Host PC with Windows® OS with Terminal Software installed (HyperTerminal) and one USB port o Cypress USB-UART bridge device driver o 4GB FAT32 formatted SD card... - Page 4 ZedBoard and slide the SW8 power switch to the on position. If the BOOT.BIN file has loaded successfully, the on-board display will show the message MAXIM INTEGRATED REFERENCE DESIGN Revision XX.XX. a) The ZedBoard utilizes the Cypress USB-UART bridge IC. If Windows cannot automatically install the driver for the Cypress USB-UART bridge IC, the driver is available for download from www.cypress.com/?rID=63794.

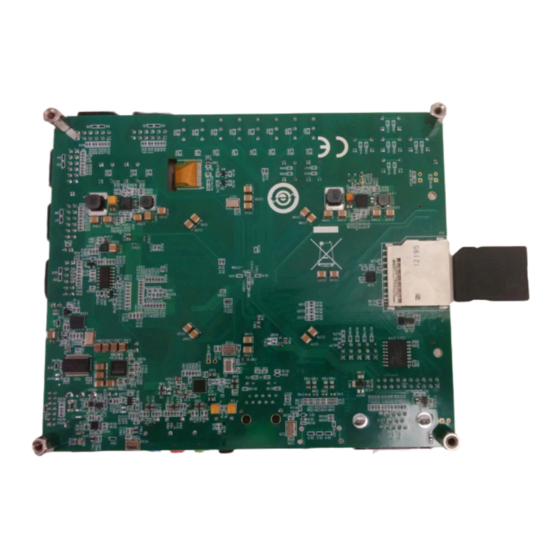

- Page 5 MAXREFDES32# ZedBoard Quick Start Guide Figure 2. ZedBoard SD Card Slot Figure 3 and Figure 4. ZedBoard Boot from SD Jumper Settings...

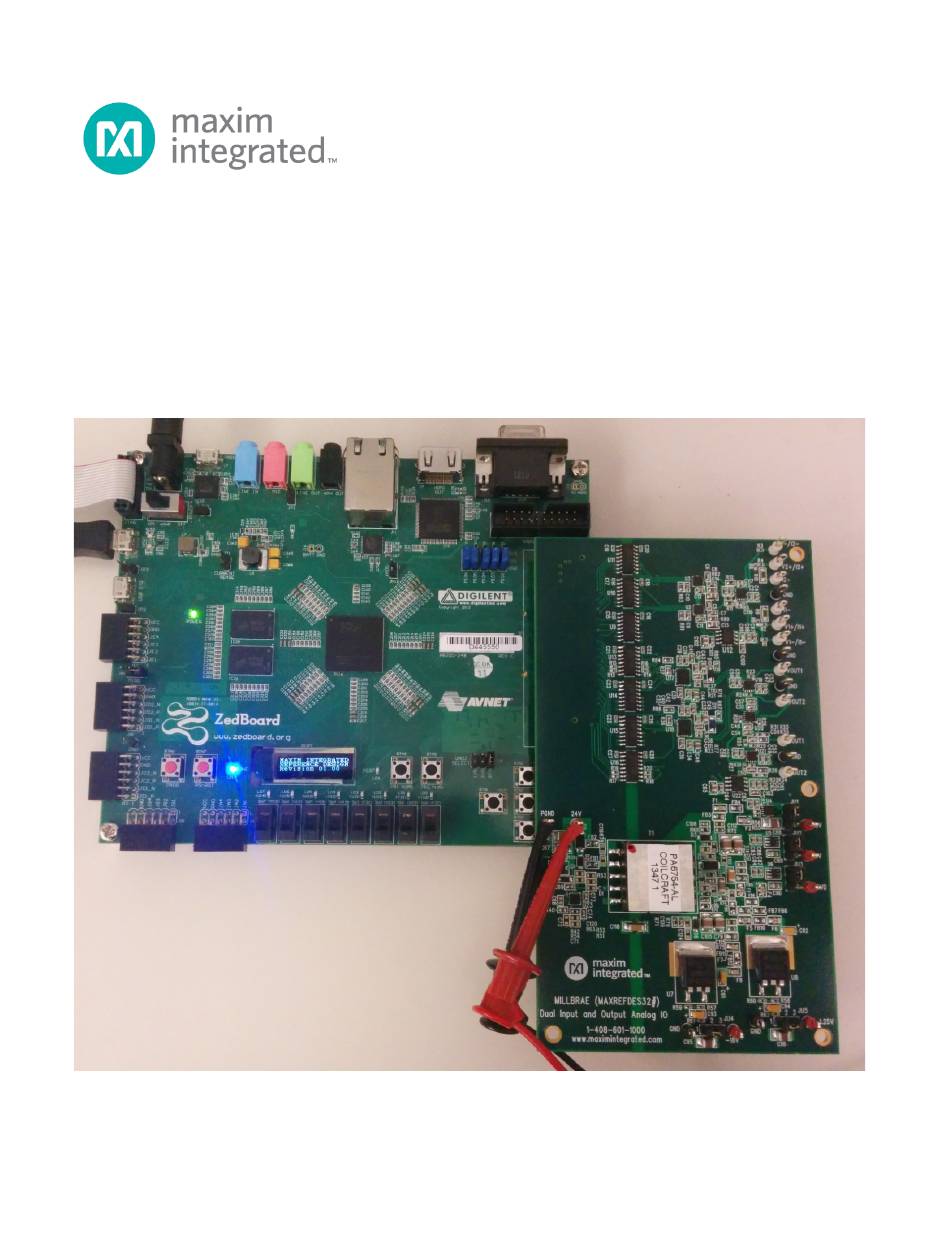

- Page 6 MAXREFDES32# ZedBoard Quick Start Guide Figure 5. MAXREFDES32# Board Connected to ZedBoard Kit...
- Page 7 MAXREFDES32# ZedBoard Quick Start Guide Figure 6. MAXREFDES32 Main Menu...
-
Page 8: Download Demonstration From Xilinx Sdk
MAXREFDES32# ZedBoard Quick Start Guide 4. Download Demonstration from Xilinx SDK Below is a high-level overview of the steps required to quickly get the MAXREFDES32# design running by downloading and running the FPGA project. Detailed instructions for each step are provided in the following pages. 1) Connect the MAXREFDES32# board to the J1 FMC connector of a ZedBoard as shown in Figure... -
Page 9: Included Files
MAXREFDES32# ZedBoard Quick Start Guide 5. Included Files The top level of the hardware design is a Xilinx PlanAhead Project (.PRR) for Xilinx PlanAhead version 14.2. The Verilog-based arm_system_stub.v module provides FPGA/board net connectivity, and instantiates the wrapper that carries both the Zynq® Processing System and AXI_MILLBRAE custom IP core that interface to the FMC connector. -
Page 10: Procedure
MAXREFDES32# ZedBoard Quick Start Guide 6. Procedure 1. Install a 2-pin header on the J18 connector on the ZedBoard if the 3V3 header is missing. 2. Configure the ZedBoard boot source jumpers as shown in Figure 8, and remove the shunt on JP6. Figure 8. - Page 11 MAXREFDES32# ZedBoard Quick Start Guide 8. Open the Xilinx Software Development Kit (SDK) from the Windows Start menu. 9. SDK will prompt for a workspace directory, which is the location where the software project is located. For this example, it is: C:\designs\maxim\RD32V01_00\RD32_ZED_V01_00\Design_Files\top.sdk\SDK\ SDK_Export Click OK and SDK will open.
- Page 12 MAXREFDES32# ZedBoard Quick Start Guide 10. Review the SDK IDE. The Project Explorer in the upper left tab should have three components as shown in the image below. If all three subfolders are present, you can skip the next step.
- Page 13 MAXREFDES32# ZedBoard Quick Start Guide 11. If the Project Explorer does not contain these three subfolders, launch the File | Import menu, expand the General folder, and select Existing Projects into Workspace. Click Next. Set the root directory to: C:\designs\maxim\RD32V01_00\RD32_ZED_V01_00\Design_Files\top.sdk\SDK\ SDK_Export and the missing projects should appear in SDK Project Explorer with their checkboxes checked.
- Page 14 MAXREFDES32# ZedBoard Quick Start Guide 12. To download the bitstream (.BIT) file to the board, click on the Program FPGA icon (which looks like a green chain of devices). The Program FPGA dialog box appears. From here, an FPGA bitstream (.BIT) file is selected.
- Page 15 MAXREFDES32# ZedBoard Quick Start Guide 13. Setup of the terminal program to run on the PC using the following steps. Before loading the executable firmware file on the FPGA, the terminal program on the PC should be running. The example firmware running on the FPGA communicates with the PC via a USB port set up to emulate a serial port (UART).
- Page 16 MAXREFDES32# ZedBoard Quick Start Guide 14. Use the Xilinx SDK to download and run the executable ELF (.ELF) file on the ARM Cortex-A9 processor using the following steps. Right-click the mouse while the MAXREFDES32 C project is selected, choose the Run As menu, and then Run Configurations… menu as shown below.
- Page 17 MAXREFDES32# ZedBoard Quick Start Guide Next, double-click the mouse on the Xilinx C/C++ ELF menu.
- Page 18 MAXREFDES32# ZedBoard Quick Start Guide Next, press the Search Project button.
- Page 19 MAXREFDES32# ZedBoard Quick Start Guide Double-click on the MAXREFDES32.elf binary.
- Page 20 MAXREFDES32# ZedBoard Quick Start Guide Verify the application is selected on the Main tab.
- Page 21 MAXREFDES32# ZedBoard Quick Start Guide On the Device Initialization tab, click Browse… button to select the right initialization TCL file and press the Run button. Once the Debug/MAXREFDES32 configuration is set up once, you just need to press the Run button if you ever want to run the program again.
- Page 22 MAXREFDES32# ZedBoard Quick Start Guide At this point, the application will be running on the Cortex-A9 and the terminal program should show the menu below. Make the desired selections by pressing the appropriate keys on the keyboard. For example, to select Signal Replication, press 1.
-
Page 23: Code Documentation
MAXREFDES32# ZedBoard Quick Start Guide 7. Code Documentation Code documentation can be found at: C:\...\RD32V01_00\RD32_ZED_V01_00\Code_Documentation\ To view the code documentation in HTML format with a browser, open the MainPage.html file. To view the code documentation in .PDF format with a PDF reader, open the MAXREFDES32_Code_Documentation.pdf file. -
Page 24: Appendix A: Project Structure And Key Filenames
MAXREFDES32# ZedBoard Quick Start Guide 8. Appendix A: Project Structure and Key Filenames Top level folder contains: • Numerous source and intermediate files (PlanAhead generated) • top.ppr = main Xilinx PlanAhead project file. • top.* = the Xilinx PlanAhead top level project folders SDK Export Folder •... -
Page 25: Revision History
MAXREFDES32# ZedBoard Quick Start Guide Revision History REVISION REVISION PAGES DESCRIPTION NUMBER DATE CHANGED 5/14 Initial release —... - Page 26 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Maxim Integrated MAXREFDES32#...
