Pagina 1 SPRINT 11 SW
Guide for the installer
Pos.
CN1 Inputs terminal board
CN2 Outputs and battery terminal board
CN3 Power supply terminal board
Quick-fit connector for travel limit device
JP1
Quick-fit connector for receiver module
JP2
Quick-fit connector for battery kit on board the
JP3
machine
DP Programming dip-switch
Trimmer for adjusting motor power/obstacle
POWER
detection sensitivity
Protective fuse of the power supply circuit
F1
T3.15 A 250V 5x20
O P E N A r a d i o i n p u t m e m o r y s t o r a g e
OPA
push-button
5.1. JP1 CONNECTOR
The "JP1" connector is dedicated to the connection of the travel limit sensor at opening and closing.
The connector can be fit in one direction only, do not force it.

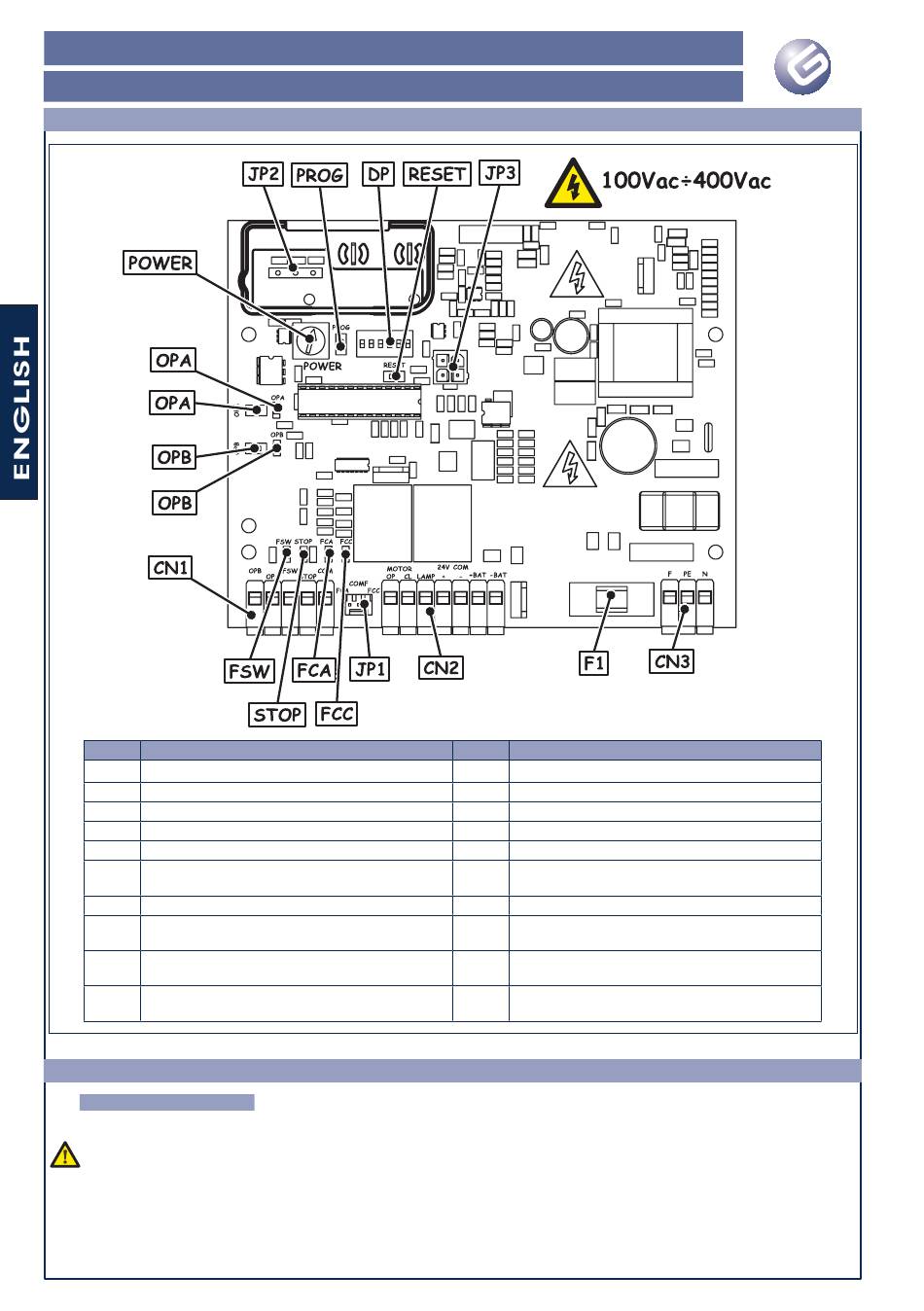

4. BOARD LAYOUT

Description
5. CONNECTIONS AND OPERATION
Pos Description
OPB OPEN B radio input memory storage push-button
RESET RESET push-button
PROG Programming push-button
LED for OPEN A radio input status
OPA
LED for OPEN B radio input status
OPB
FSW LED for FSW input status
STOP LED for STOP input status
FCA LED for FCA input status
FCC LED for FCC input status
