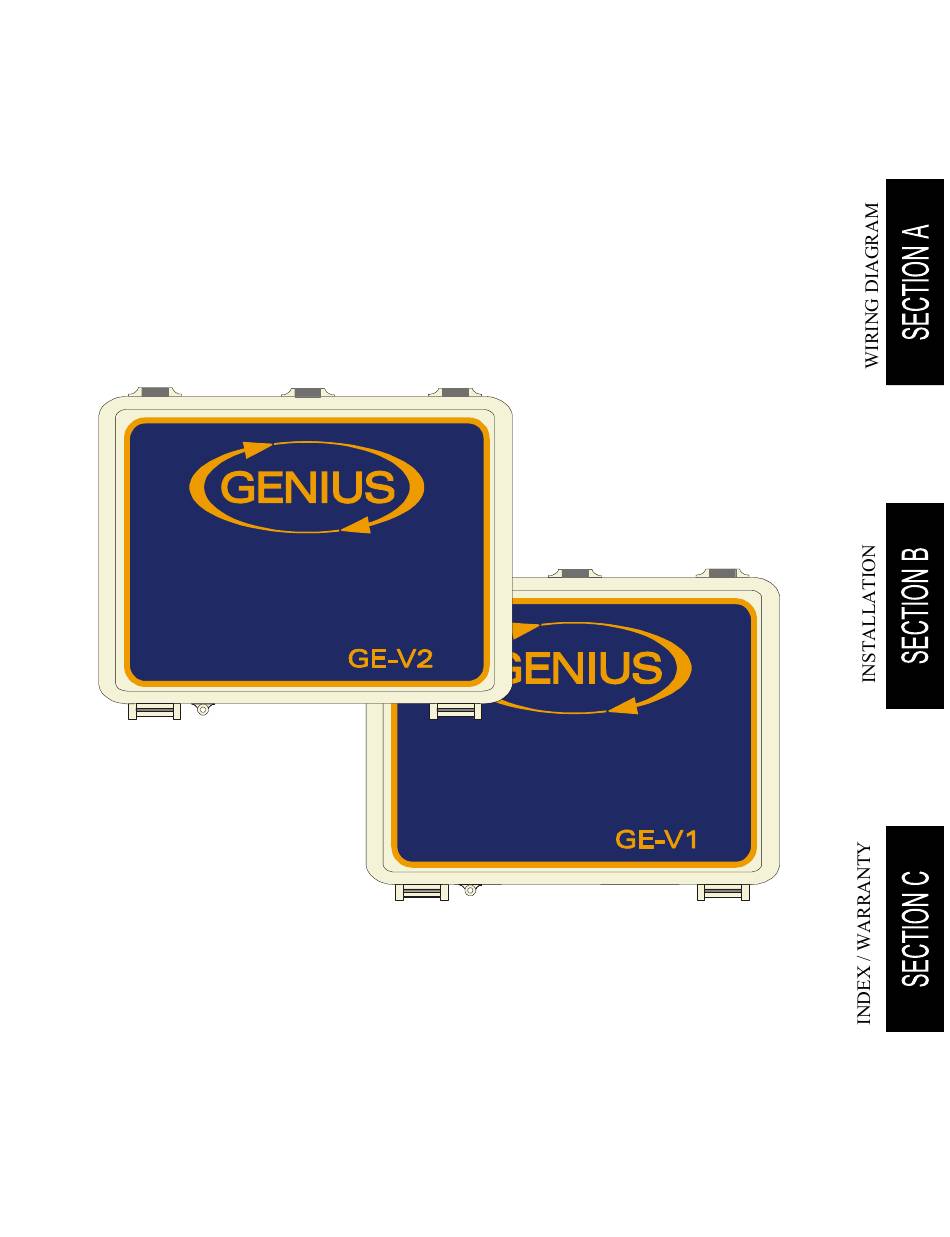

- Page 1 GE-V1/V2 Installation / User’s Guide ATTENTION ELECTRICIAN SEE WIRING DETAILS ON PAGES A-3, A-4 AND A-5 ADDITIONAL INFORMATION IN SECTION B www.monitrol.com...
-
Page 2: Warnings And Precautions
WARNINGS AND PRECAUTIONS Although the manufacturer has made every effort to ensure the accuracy of the information contained herein, this document is subject to change without notice due to ongoing product development. WARNINGS AND PRECAUTIONS Equipment, blown fuses and/or tripped breakers may prove harmful to the contents of the building. -
Page 3: Wiring Diagram Ge-V1 And Ge-V2 (1 Module On One Port)
GE-VX WIRING DIAGRAM Wiring Diagram GE-V1 and GE-V2 (1 module on one port) WIRING DIAGRAM GE-V1 AND GE-V2 (1 module on one port) 1243 B GE-Vx OUT 1 OUT 2 115 / 230V 115 / 230V INPUT L2/N LINE 115V/230V... -
Page 4: Wiring Diagram Ge-V1 And Ge-V2 (2 Modules On One Port)
GE-VX WIRING DIAGRAM Wiring Diagram GE-V1 and GE-V2 (2 modules on one port) WIRING DIAGRAM GE-V1 AND GE-V2 (2 modules on one port) GE-CONTROLLER LINE 115V/230V L2/N 1243 B 1243 B GE-Vx GE-Vx OUT 1 OUT 2 OUT 1 OUT 2... -
Page 5: Electrician's Notes
GE-VX WIRING DIAGRAM GE-V1 and GE-V2 Electrician’s notes wiring tips and hints (see guide for details) SEE THE ELECTRICIAN’S NOTE OF THE MASTER CONTROL. IF NOT STATED USE: COMMUNICATION WIRING SHEILDED, TWISTED PAIR (8 TWIST/FT). MAX LENGTH FOR 350pF/M CABLE: 492FT (150M). MAX LENGTH FOR 89pF/M CABLE: 820FT (250M). -
Page 6: Section B
INSTALLATION GE-V1 and GE-V2 SECTION B www.monitrol.com... -
Page 7: Unpacking
Unpack the GE-VX and inspect contents for damage. Should the contents appear to be damaged, contact your local distributor to return the material. The package should contain the following standard items: 1 GE-V1 or GE-V2 module 4 Bracket / 4 screws 1 Spare fuses 1 Installation / User’s Guide... -
Page 8: Electrical Cables
GE-VX INSTALLATION Electrical Cables All electrical cables must be installed according to local wiring codes. All cable shields must be connected to the main control only. Do not connect it to the GE-VX. The shield is needed to protect the modules against any electromagnetic interference generated by lightning or nearby operating machinery. -
Page 9: Mounting
GE-VX INSTALLATION Mounting The enclosure must be mounted in a location that will allow the cover to be completely opened right up against the wall. Fasten the four brackets to the four mounting holes on the back of the enclosure, using the four screws provided with the brackets. -
Page 10: Layout Board
GE-VX INSTALLATION Layout Board FIGURE NO. 2 GE-V2 and GE-V1 Electronic module Board 15A SLO-BLO 15A SLO-BLO INPUT OUT 1 OUT 2 1243 B 115 / 230V 115 / 230V Section B-10 GE-VX www.monitrol.com... -
Page 11: Connection Procedure
GE-VX INSTALLATION Connection Procedure Detailed Wiring Diagrams Communication Port Connection Connect the GE-VX positive communication port terminal block with the module positive communication port terminal block. Connect the GE-VX negative communication port terminal block with the module negative communication port terminal block. -
Page 12: Powering Up Procedure
Hermetically Close the GE-VX Close the front panel and the lower access cover. Put the power on Secure the front panel with a lock Specifications Module GE-V1 and GE-V2 DESCRIPTION VALUE Storage temperature -4°F to 131°F (-20°C to 55°C) Operating temperature 32°F to 122°F (0°C to 50°C) - Page 13 GE-VX INSTALLATION GE-VX Section B-13 www.monitrol.com...
-
Page 14: Section C
INDEX / WARRANTY GE-V1 and GE-V2 SECTION C www.monitrol.com... -
Page 15: Table Of Contents
TABLE OF CONTENTS Section A WARNINGS AND PRECAUTIONS ................. 2 Wiring Diagram GE-V1 and GE-V2 (1 module on one port) ..........3 Wiring Diagram GE-V1 and GE-V2 (2 modules on one port) ........... 4 Electrician’s notes ....................... 5 TABLE OF CONTENTS Section B Unpacking ........................... -
Page 16: Limited Warranty
GE-VX INDEX / WARRANTY Limited Warranty The manufactured equipment and supplied components have gone through rigorous inspection to assure optimal quality of product and reliability. Individual controls are factory tested under load, however the possibility of equipment failure and/or malfunction may still exist. For service, contact your local retailer or supplier. - Page 17 GE-V1 GE-V2 VER:1.3 March 21, 2022 www.monitrol.com...
