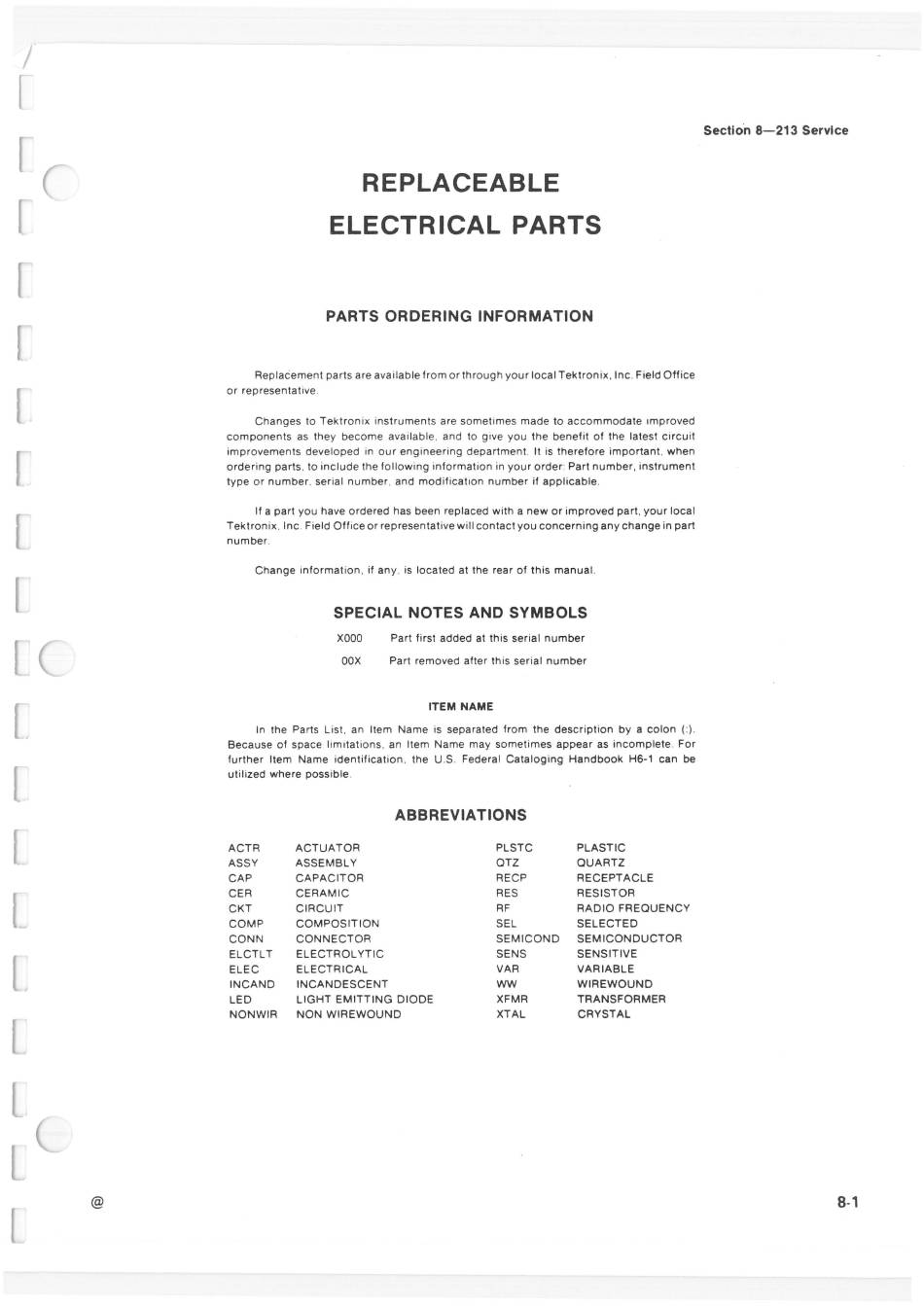

REPLACEABLE
ELECTRICAL PARTS
PARTS ORDERING INFORMATION
Replacement parts are available from or through your local Tektronix , Inc . Field Office
or representative .
Changes to Tektronix instruments are sometimes made to accommodate improved
components as they become available . and to give you the benefit of the latest circuit
improvements developed in our engineering department . It is therefore important . when
ordering parts . to include the following information in your order: Part number, instrument
type or number. serial number . and modification number if applicable .
If a part you have ordered has been replaced with a new or improved part, your local
Tektronix . Inc . Field Office or representative will contact you concerning any change in part
number .
Change information . if any . is located at the rear of this manual.
SPECIAL NOTES AND SYMBOLS
X000 Part first added at this serial number
00X Part removed after this serial number
ITEM NAME
In the Parts List . an Item Name is separated from the description by a colon (:).
Because of space limitations . an Item Name may sometimes appear as incomplete . For
further Item Name identification . the U .S. Federal Cataloging Handbook H6-1 can be
utilized where possible .
ABBREVIATIONS
ACTR ACTUATOR PLSTC PLASTIC
ASSY ASSEMBLY
QTZ
QUARTZ
CAP CAPACITOR RECP RECEPTACLE
CER CERAMIC RES RESISTOR
CKT
CIRCUIT RF RADIO FREQUENCY
COMP
COMPOSITION SEL SELECTED
CONN CONNECTOR SEMICOND SEM ICON DUCT OR
ELCTLT ELECTROLYTIC SENS
SENSITIVE
ELEC ELECTRICAL VAR VARIABLE
INCAND INCANDESCENT
WW
WIREWOUND
LED
LIGHT EMITTING DIODE XFMR TRANSFORMER
NONWIR NON WIREWOUND
XTAL CRYSTAL
Sectlo· n 8-213 Service
8-1
