Dake SE712 Instructional Manual

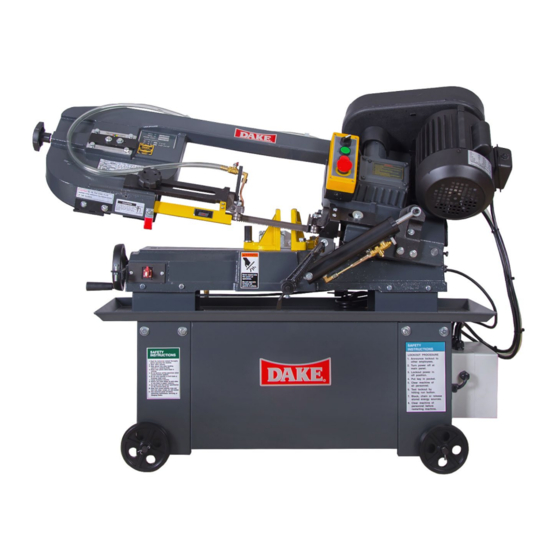

Metal cutting horizontal bandsaw
Hide thumbs Also See for SE712:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

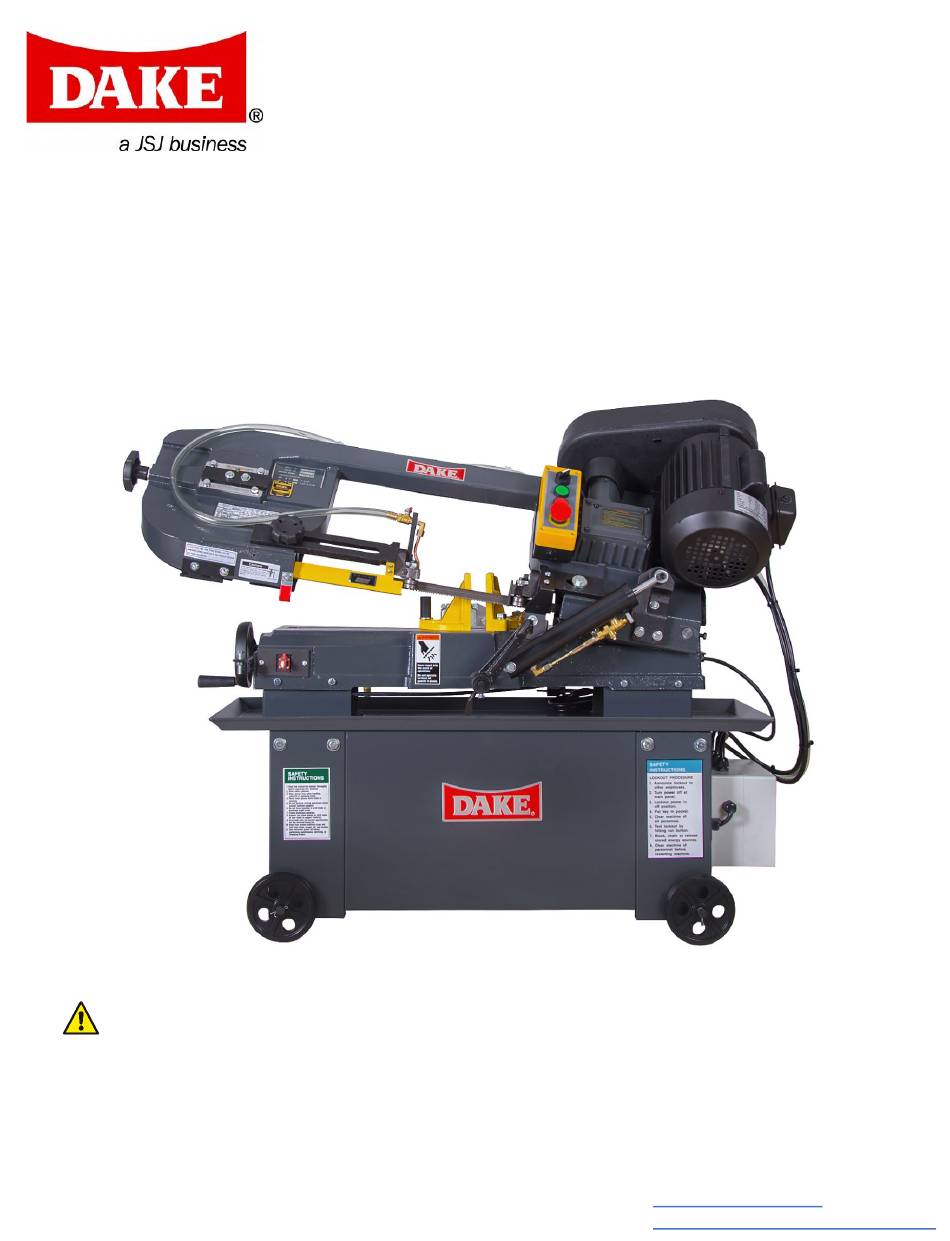

DAKE METAL CUTTING HORIZONTAL BANDSAW
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
724 Robbins Road
Grand Haven, MI 49417
Model SE712
INSTRUCTIONAL MANUAL
Phone: 800.937.3253
Fax: 800.846.3253
www.dakecorp.com
customerservice@dakecorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE712 and is the answer not in the manual?

Questions and answers

Related Manuals for Dake SE712

Summary of Contents for Dake SE712

  • Page 1 DAKE METAL CUTTING HORIZONTAL BANDSAW Model SE712 INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation www.dakecorp.com Phone: 800.937.3253 724 Robbins Road customerservice@dakecorp.com Fax: 800.846.3253...

  • Page 2: Table Of Contents

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................3 SPECIFICATIONS ....................4 SAFETY ........................ 5 SET UP ......................... 7 ASSEMBLY ....................7 BLADE SELECTION ..................7 BLADE SPEEDS ..................

  • Page 3: Dake Standard Limited Warranty

    Purchasers who notify Dake within the warranty period will be issued a Case number and/or a Return Material Authorization (RMA) number. If the item is to be returned per Dake’s request, the RMA number must be clearly written on the exterior packaging. Any item shipped to Dake without an RMA will not be processed.

  • Page 4: Return & Refund Policy

    Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option.

  • Page 5: Specifications

    In the space provided record the serial number and model number of the machine. This information is only found on the black and gold Dake tag shown below. If contacting Dake this information must be provided to assist in identifying the specific machine.

  • Page 6: Safety

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com SAFETY This is the safety alert symbol. When you see this symbol on your machine be alert to the potential for personal injury. Carefully read all safety messages in these instructions and on your tool safety signs.
  • Page 7 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com • Always keeps hands and fingers away from the blade. • Stop the machine before removing chips. • Shut off power and clean tool and work area before leaving the machine.

  • Page 8: Set Up

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com SET UP ASSEMBLY Motor Pulley Cover: (Items 290, 291, 293, 294, & 343) 1) Open the cover and slide the bottoms openings around the pulleys. 2) Line up the holes in the motor pulley case with the hole in the bracket coming up from the motor mount bracket.

  • Page 9: Blade Speeds

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com BLADE SPEEDS Band speed recommendations presented on this chart are approximations and are to be used as a starting point for most applications. For exact sawing parameters consult your blade supplier.
  • Page 10 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com Vice adjustment for angled cuts: Cuts ≤ 20° For this angle range the bottom most bolt hole needs to be lined up with the leftmost hole in the bed and the C bolt should be in the bottom slot in the right vice jaw.

  • Page 11: Work Stop Adjustment

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com WORK STOP ADJUSTMENT 1) Loosen the thumb screw (item 38) holding the work stop casing (item 41) to the shaft. 2) Adjust the work stop casting to the desired length.

  • Page 12: Operating

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com OPERATING 1) Raise saw head to partial vertical position and use the down feed lock to lock the head. 2) Open vice and insert the workpiece. Close vice securely around the workpiece.

  • Page 13: Vertical Cutting

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com 4) Using the chart on the inside of the cover determine what position to move the belt to get the desired blade speed. a. For standard 120V outlet use the 60Hz column.

  • Page 14: Maintenance

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com MAINTENANCE PERIODICAL MAINTENANCE Frequency Maintenance Fill coolant as needed before operating. Daily Clean up metal chips and debris. Clean and coat head screw with oil as needed. Weekly Check sliding surfaces and turning parts if lubricant is needed.

  • Page 15: Blade Guide Bearing Adjustment

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com BLADE GUIDE BEARING ADJUSTMENT Before adjusting the blade guide bearings ensure that the saw is properly disconnected from its power source. Guide bearing position is extremely important in order get a straight, proper cut. The need for adjustment should rarely occur if the saw is being used properly.

  • Page 16: Troubleshooting

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING WHEN TO CHANGE FEED RATE OR BAND SPEED Chips are the best indicator of correct feed rate. Monitor chip information and adjust fed and speed accordingly. Thin or powdery chips – reduce band speed or increase feed rate.
  • Page 17 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com SYMPTOM CAUSE SOLUTION Use a blade with finer Blade teeth are too coarse teeth/higher TPI Blade speed is too high Decrease speed Decrease spring tension on side of the saw. See Feed pressure is too little “CHANGING FEED RATE”...
  • Page 18 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com SYMPTOM CAUSE SOLUTION Blade tension is too high Reduce tension on blade Reduce tension on drive belt by loosening the two hex head screws under the motor Drive belt tension is too high pulley cover.

  • Page 19: Electrical Components

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com ELECTRICAL COMPONENTS Part No. Part Name Part No. Part Name 301461 Electrical box 716558 Coolant on/off button 301462 Connector 24 volt 716540 Start button (green) 301795 Overload 716539 Stop button (red)

  • Page 20: Exploded View & Parts List

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEW & PARTS LIST EXPLODED PARTS VIEW Limit Switch 300733 REV022019...
  • Page 21 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com REV022019...

  • Page 22: Parts List

    Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com PARTS LIST Item Part No. Ref No. Part Name 300935 181107-2 Swivel Base 300757 181108A Acme Screw 300907 W002 Washer (1/2”) Hex. Socket Headless Screw 300860 S601 (1/4"-20 x 1/2")
  • Page 23 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com Item Part No. Ref No. Part Name 300945 181125 Distance Set Bracket 43317 S019 Hex. Head Screw (5/16"-18 x 1-1/2") 181112 Support Plate 43332 S014 Hex. Head Screw (3/8"-16 x 1-3/4")
  • Page 24 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com Item Part No. Ref No. Part Name 301694 181852 Coupler (3/8” PT) 181601 Hose Clip (Ø5) 301456 181981 Hose (OD 12mm x ID 8mm x 200mm) 301455 181856 Valve (1/8” PT)
  • Page 25 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com Item Part No. Ref No. Part Name 300747 181874 Belt Cross Socket Hex. Head Screw 43303 (1/4”-20 x 5/8”) Hex. Socket Headless Screw 301451 S604 (M6-1.0 x 6mm) 301697 181222-1...
  • Page 26 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com Item Part No. Ref No. Part Name Hex. Head Screw 43314 S022 (5/16”-18 x 3/4”) 301350 181240 Switch Cut Off Tip 43631 W005 Washer (1/4”) Cross Round Head Screw 301484 S201 (1/4”-20 x 1/2”)
  • Page 27 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com Item Part No. Ref No. Part Name 43301 S006 Hex. Head Screw (1/4-20 x 1/2”) 43631 W004 Washer (1/4”) 300957 K008 Key (5mm x 5mm x 30mm) Hex. Socket Headless Screw...

  • Page 28: Ordering Information

    Please contact factory for current prices. ORDERING INFORMATION Parts are available for direct purchase from Dake or through a distributor. When placing a parts order, you will need to provide the part number, name of part, and model number. All parts shipped F.O.B.
