Summary of Contents for Dake SE-5X6 RCT

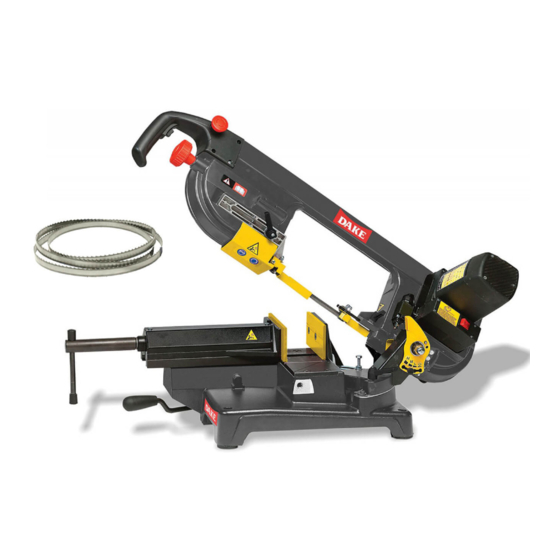

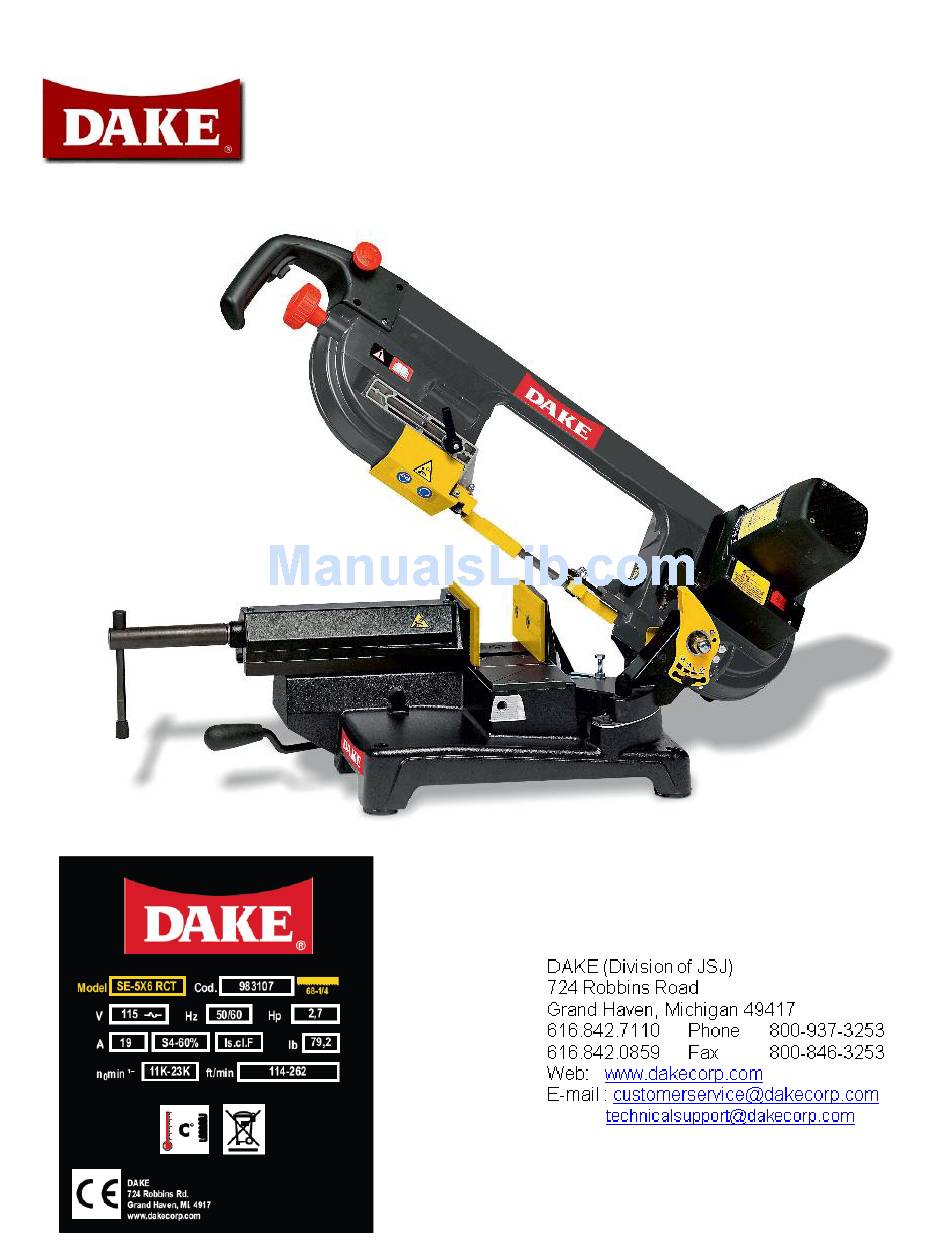

- Page 1 PORTABLE SEMI-AUTO BANDSAW SE-5X6 RCT INSTRUCTION MANUAL Please record your saws information...
-
Page 2: Table Of Contents
1. INTRODUCTION TO USE ......................3 1.1. HOW TO CONSULT THIS MANUAL AND THE SYMBOLS ADOPTED .........3 1.2. WARNING STICKERS - INDICATIONS ..................4 1.3. TYPE OF USE INTENDED......................4 1.5. GENERAL SAFETY REGULATIONS ..................4-5 1.6. SAFETY PRECAUTIONS DURING USE ................5-6 1.7. RESIDUAL RISKS ........................6 1.10. -
Page 3: Introduction To Use
1. INTRODUCTION AND USE NOTES The Use and Maintenance Manual is made up of two parts, this document and the additional parts and diagrams. Save this manual for future use. DANGER - WARNING BEFORE USING THE MACHINE, PLEASE READ THIS MANUAL CAREFULLY, SO THAT YOU BECOME FAMILIAR WITH THE MACHINE, ITS INTENDED USE AND ANY RISKS ASSOCIATED WITH IT. -
Page 4: Warning Stickers - Indications
1.2. WARNING STICKERS - INDICATIONS The stickers affixed to the machine are indicated below. Serial number / Year of manufacture Indication of direction of rotation. Basic logo / CE marking / Indication of motor characteristics and data. Wear PPE. 1.3. TYPE OF USE INTENDED The machine has been designed and built for cold cutting metal materials. -
Page 5: Safety Precautions During Use
SAFETY PRECAUTIONS AT ALL TIMES TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY. READ ALL THESE INSTRUCTIONS CAREFULLY BEFORE PROCEEDING TO USE THIS PRODUCT AND KEEP THEM IN A SAFE PLACE. NOTES Ambient Conditions: - Avoid using the machine in locations which are very humid or in the presence of flammable liquids or gas. -
Page 6: Residual Risks
- Check the various machine elements to make sure there are no signs of damage. - Before proceeding to use the machine, check all the safety devices and any other item which may be damaged to ensure that the machine works properly and can perform the task it is designed to do. -
Page 7: Main Machine Components
1.10 MAIN MACHINE COMPONENTS 1.Control handgrip 2. Blade tensioning handwheel 3. Transport handles 4. Movable blade guides 5. Cutting bow casting 6. Blade 7. Motor 8. Control box 9. Swivel support 10. Stock stop assembly 11. Vise 12. Vise adjustment screw 13. -
Page 8: Machine Description
2.7 DANGER-WARNING AUTONOMOUS CUTTING SAWS This model of machine (SE-5X6 RCT) must only be used in a dedicated work area to which unauthorized access is prohibited. If no such work area is available, it is advisable to cordon off the machine's operating area (6’... -
Page 9: Adjustments
LIES COMPLETELY ON THE GROUND AND IS NOT AT ANY POINT RAISED IN THE AIR. Specific characteristics of the electrical system DANGER - WARNING THE SAW'S ELECTRICAL SYSTEM IS FITTED WITH A DEVICE WHICH AUTOMATICALLY OPENS THE CIRCUIT IF THE VOLTAGE DROPS BELOW A MINIMUM SET LIMIT AND INHIBITS AUTOMATIC RESET OF OPERATING CONDITIONS WHEN THE VOLTAGE RETURNS TO THE SET RATED LEVELS. -
Page 10: Adjusting The Sliding Blade Guide Position
To adjust the cutting angle, proceed as follows: a) Loosen the locking knobs b) turn the swivel support using the handgrip; c) stop rotation when the pointer is aligned with the selected position on the graduated scale on the base; d) Lock the swivel support by tightening knobs. -
Page 11: Operations
4. OPERATIONS DANGER - WARNING THE MACHINE IS EQUIPED WITH A MAIN POWER SWITCH (located on control box 8) TO BE ACTIVATED BEFORE THE WORK OPERATION. ONCE WORK HAS BEEN COMPLETED, TURN OFF THE MAIN POWER SWITCH. DANGER - CAUTION •... -
Page 12: Use As An Autonomous Cutting Saw
NOTES The cutting head must be raised to the maximum up position then brought down to un-lock the head lock feature. Do not force the head down as this may damage the saw. 4.2 USE AS AN AUTONOMOUS CUTTING SAW a) Secure the workpiece to be cut in the vise using the vise adjusting screw (12) or quick release lever (14). -
Page 13: Lubrication
The characteristics of the blade must be compatible with the technical specifications. The SE-5X6 RCT has reverse cutting technology and the teeth of the blade points forward and rotates toward the front of the saw. If the blade is not welded for reverse cutting technology, a standard blade that is reversed and inside out will also work. -
Page 14: Cleaning - Tasks To Be Performed
5.3 CLEANING - TASKS TO BE PERFORMED DANGER – WARNING - WEAR SUITABLE PERSONAL PROTECTIVE EQUIPMENT (SAFETY GLASSES, - AVOID USING JETS OF COMPRESSED AIR. - KEEP SAW AND SURROUNDING AREAS CLEAN FROM DEBRIS. 5.4 PRODUCT SPECIFICATIONS Machine Type Portable mitering gravity fed horizontal Bandsaw 68 ¼”... -
Page 15: Troubleshooting
6. TROUBLESHOOTING PROBLEM PROBABLE CAUSE REMEDY 1. Faulty motor, power cable or 1.Get machine checked by a qualified plug. electrician. DANGER – WARNING Motor is not working 2. Blown fuse in electrical panel. 3. No voltage at the power supply NEVER ATTEMPT TO REPAIR 4. -
Page 19: Electrical Drawing
EM Emergency stop button Main switch Limit switch CV Speed changer PM Run button Motor MF Thermal circuit breaker FCC End of cut micro switch... - Page 20 NOTES:...
