INSTRUCTION MANUAL AND PARTS LIST
DAKE/PARMA
WHEN ORDERING PARTS
GIVE COMPLETE SERIAL NUMBER OF MACHINE
GIVE PART NUMBER AND NAME
GIVE AMOUNT REQUIRED
Unless the above data is included we cannot fill your
order.
MODEL: _____________________________________
SERIAL NUMBER: _____________________________
DATE PURCHASED: ___________________________

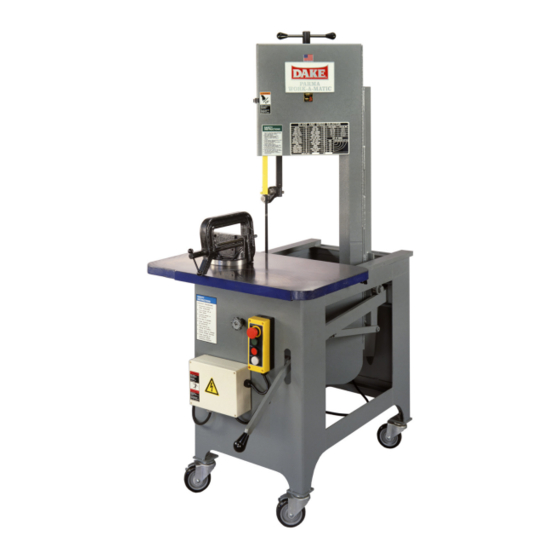

VERTICAL BAND SAWS
MODEL SXC
DAKE Division of JSJ
724 Robbins Road
Grand Haven, MI 49417
Phone: 616-842-7110 800-937-3253
Fax:
616-842-0859 800-846-3253
E-mail:
technicalservice@dakecorp.com
Website:
www.dakecorp.com
1
DAKE/PARMA SXC
Advertisement
Table of Contents
Related Manuals for Dake SXC 988040
Summary of Contents for Dake SXC 988040
- Page 1 GIVE COMPLETE SERIAL NUMBER OF MACHINE GIVE PART NUMBER AND NAME GIVE AMOUNT REQUIRED Unless the above data is included we cannot fill your order. DAKE Division of JSJ 724 Robbins Road Grand Haven, MI 49417 MODEL: _____________________________________ Phone: 616-842-7110 800-937-3253...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Specifications ………………….……………………………………… Page 3 Features ……………………………………………………………….. Page 3 Accessories ……………………………………………………………Page 3 How the Dake Parma SXC Operates……………………………..… Page 4 Adjustments ………………………………………………………….… Page 5 Blade Selection ………………………………………………………... Page 6 Standard tooth applications ………………………………………….. Page 6 Blade Speeds ………………………………………………………….. Page 6 Blade removal and installation ……………………………………..…... -
Page 3: Specifications
Bronze gear speed reducer • Variable feed rate system with hydraulic feed regulator • Surface ground steel guide rails. ACCESSORIES Heavy Duty Casters – Adds mobility – move your SXC to the work, then lock the casters for stability. DAKE/PARMA SXC... -
Page 4: How The Dake Parma Sxc Operates
HOW THE DAKE PARMA SXC OPERATES DAKE/PARMA SXC... -
Page 5: Adjustments
COUNTERWEIGHT – Used to maintain the blade pressure you desire. HYDRAULIC CYLINDER – This should be adjusted to allow the frame to travel rapidly but not free fall. This is a safety device and should be kept properly adjusted. DAKE/PARMA SXC... -
Page 6: Blade Selection
Your SXC gearbox is filled at the factory. Check the fluid level on arrival, and then check every six months thereafter. Use 90-weight gear lube to maintain fluid level at the fill/check pipe plug. Cylinder Keep the cylinder reservoir 1/2 to 3/4 full. Use light hydraulic oil to refill. DAKE/PARMA SXC... -
Page 7: Parts Breakdown
New Style Complete Electrical Kit – 1 ph 220 volt 716766 New Style Complete Electrical Kit – 3 ph 230 volt 716767 New Style Complete Electrical Kit – 3 ph 460 volt 86782 Return Handle 300450 Knob, Return Handle 716725 Caster Set - Optional 87093M Blade Guard DAKE/PARMA SXC... - Page 8 24 Tooth Gear 5072-00 Bearing, Gearbox 5073-00 Bearing, Gearbox 86785 Shaft, Main Drive 86781 Axle, Gearbox-Short 86783 Spacer, Gearbox 1-1/4” O.D. 86786 Spacer, Gearbox 1” O.D X ¾ I.D. X 1-1/8 LONG 300449 Key, Woodruff #13 300451 Key, Woodruff #5 DAKE/PARMA SXC...
- Page 9 86826 Rail Wheel Slide 43922 43638 Washer 43452 Soc Cap Screw 3/8-16 x 1-3/4 43632 Washer 5/16” flat 43591 Set Screw 3/8-16 x 1 86810 Guide Bar Holder 300832 Knob Assembly 1-1/2” 70287 Roll pin 43451 Cap Screw DAKE/PARMA SXC...
- Page 10 Cylinder Hydraulic Complete - OLD STYLE before 9/27/02 - 716709 OBSOLETE - Must retrofit New Style 716769 Not Pictured 716769 Cylinder Hydraulic - NEW STYLE with retro-fit kit. Ater 9/28/02 Not Pictured 86842 Cylinder, Hydraulic Eye Bolt - OLD STYLE DAKE/PARMA SXC...
- Page 11 Holder Guide Roll / Pillow Block 86814 Excentric Top Guide 86812 Pin Guide Lower Rolls 86791 Stop Frame 300832 Knob, Stop Weight Not Pictured 86796 Tables-Raw 86803 Axle Lower & Upper Wheel 86795 Wheel Blade Lower 78650 Washer 300651 300461 Wheel Bearing (6205) DAKE/PARMA SXC...
- Page 12 Not Pictured 86835 Lever Link Weight 110 Volt – Single phase @ 14 Amps 220 Volt – Single phase @ 7.5 Amps 230 Volt – Three phase @ 4 Amps 460 Volt – Three phase @ 2 Amps DAKE/PARMA SXC...
- Page 13 110 Volt Single Phase DAKE/PARMA SXC...
- Page 14 220 Volt Single Phase DAKE/PARMA SXC...
- Page 15 230 Volt Three Phase DAKE/PARMA SXC...
- Page 16 460 Volt Three Phase DAKE/PARMA SXC...
