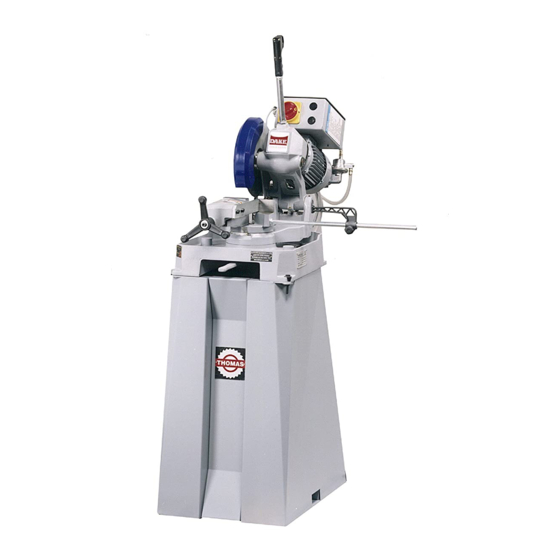

DAKE MANUAL COLD SAW
Technics 250
INSTRUCTIONAL MANUAL
Phone: 800.937.3253
Fax: 800.846.3253
www.dakecorp.com
customerservice@dakecorp.com
Advertisement
Table of Contents
Related Manuals for Dake Technics 250
Summary of Contents for Dake Technics 250
- Page 1 DAKE MANUAL COLD SAW Technics 250 INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation www.dakecorp.com Phone: 800.937.3253 724 Robbins Road customerservice@dakecorp.com Fax: 800.846.3253...
-
Page 2: Table Of Contents
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................3 SPECIFICATIONS ....................4 CUTTING CAPACITY .................. 4 SAFETY ........................ 5 SET UP ......................... 7 TRANSPORTING AND MOUNTING ............7 ASSEMBLING THE MACHINE .............. -
Page 3: Dake Standard Limited Warranty
Purchasers who notify Dake within the warranty period will be issued a Case number and/or a Return Material Authorization (RMA) number. If the item is to be returned per Dake’s request, the RMA number must be clearly written on the exterior packaging. Any item shipped to Dake without an RMA will not be processed. -
Page 4: Return & Refund Policy
Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. -
Page 5: Specifications
2-3/8” 2-1/8” 2-1/2” x 2” In the space provided record the serial number and model number of the machine. If contacting Dake this information must be provided to assist in identifying the specific machine. Serial No. Model No. Date Purchased:... -
Page 6: Safety
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com SAFETY This is the safety alert symbol. When you see this symbol on your machine be alert to the potential for personal injury. Carefully read all safety messages in these instructions and on your machine safety signs. - Page 7 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com • Do not operation machine without safety guards or with the electrical panel cover removed. • Always disconnect the machine from the power socket before changing the disk or carrying out any maintenance job, even in the case of abnormal machine operation.
-
Page 8: Set Up
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com SET UP TRANSPORTING AND MOUNTING When you receive your machine, you will need a forklift for transporting. When lifting the machine, a sling needs to be used. Position the machine on a firm cement floor, keeping a minimum distance from 2-1/2 feet from any wall. -
Page 9: Electrical Connection
Remove the part and make sure that the cutting blade and/or teeth are not damaged or broken. • Before carrying out any repairs on the machine, consult the distributor or DAKE. REV012019... -
Page 10: Starting The Saw
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com STARTING THE SAW • Mix the coolant that comes with the machine at a 10:1 ratio. Add about a half-gallon of mixed coolant in the machine bed. • Place material to be cut in the vice (1) and clamp the material in place by turning the hand wheel (2) clockwise. -
Page 11: Changing The Blade
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com CHANGING THE BLADE Refer to the pictures below for part identifications. WARNING! Before changing the blade, electrical supply must be LOCKED OUT! Always use gloves while handling loose blades. 1. Move the head of the saw into its upright position. - Page 12 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com 5. Clean both sides of the flange that are on either side of the blade and return the inside flange to its place. 6. Clean all surfaces of the new blade before putting the new blade on.
-
Page 13: Maintenance
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com MAINTENANCE DAILY MAINTENANCE • Check/fill coolant. • Check blade wear. • Check functionality of safety shields. • Make sure emergency stops are working properly. • General cleaning and removal of accumulated material. -
Page 14: Changing The Gear Box Oil
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com CHANGING THE GEAR BOX OIL 80/90 Synthetic Gear Oil, we recommend MOBIL SHC635. Refer to pictures below for further help. 1. Disconnect machine from its power supply. 2. Remove the handle and the plug coming out of the handle that goes to the electrical box. -
Page 15: Troubleshooting
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Too fast of an advance on the Decrease the level of material downward feed Change the blade speed or Wrong cutting speed the diameter of the blade... - Page 16 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com SYMPTOM CAUSE SOLUTION Bad fuses Check and/or change fuses Faulty power supply Check incoming power Short circuit Test for short and repair Bad light bulb Replace light bulb Speed switch is off...
-
Page 17: Exploded View
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEW REV012019... -
Page 18: Electrical Diagram
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com ELECTRICAL DIAGRAM REV012019... -
Page 19: Part List
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com PART LIST Item Part Name Part No. Item Part Name Part No. Pedestal 302983 Vise Jaw Washer AFB8B037 Socket Head Bolt Revolving Arm AG190046 303039 (M12-1.75 x 25mm) Revolving Arm Lock Pin... -
Page 20: Ordering Information
Please contact factory for current prices. ORDERING INFORMATION Parts are available for direct purchase from Dake or through a distributor. When placing a parts order, you will need to provide the part number, name of part, and model number. All parts shipped F.O.B.
