- Page 1 EZXCAB High Efficiency Air Filtration System Manual for: Installation • Operation • Maintenance EZXCAB-0016 & -0020 Form Number: EZCB-1SI / IIEZCB-16-1 07/02...
-
Page 2: Safety Considerations

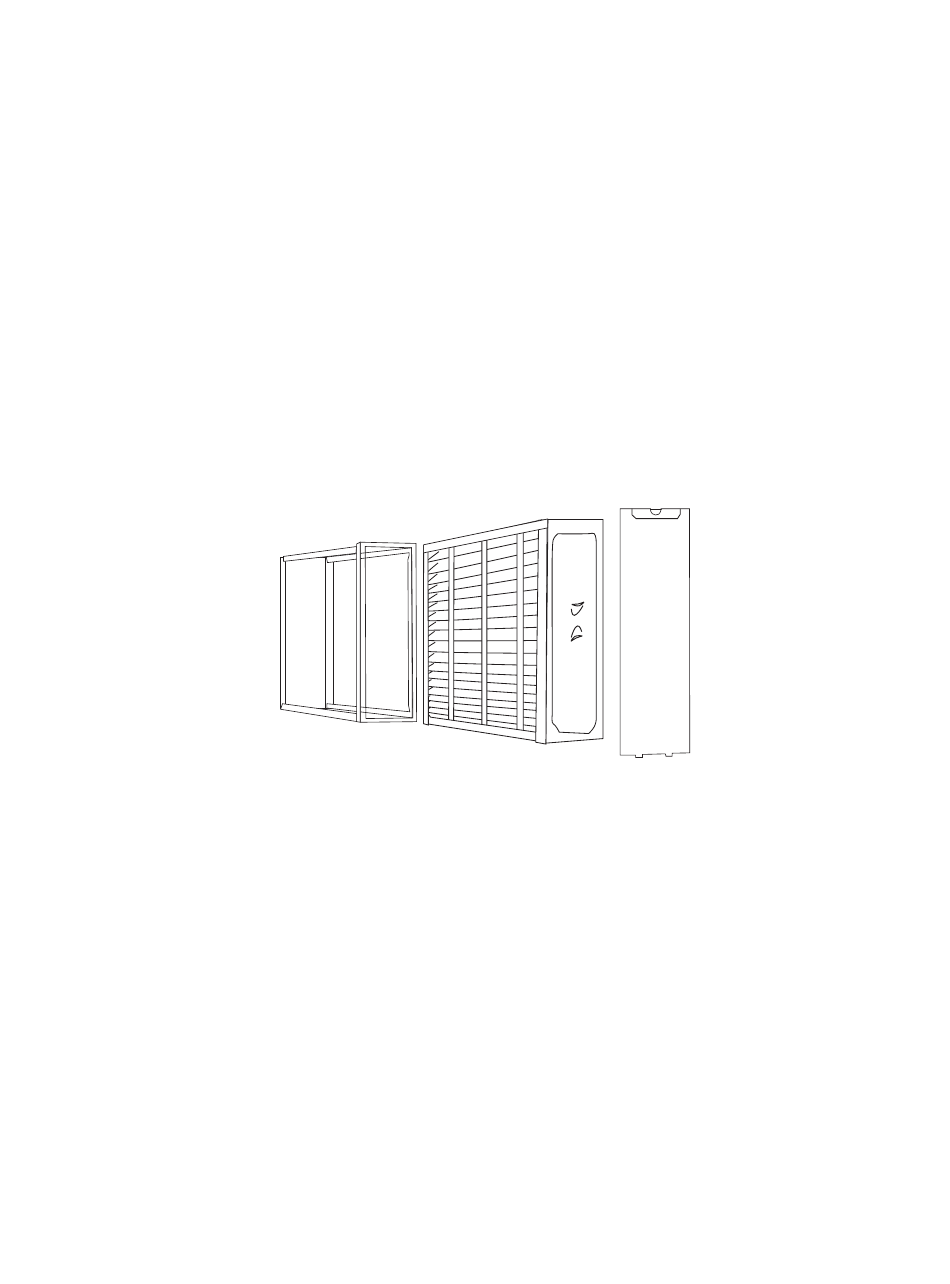

NOTE: Read the entire instruction manual before starting the installation. SAFETY CONSIDERATIONS Installation and service of heating and air conditioning equipment can be hazardous due to system pressure and gas and electrical components. Only trained and qualified personnel should repair, or service heating and air conditioning equipment. - Page 3 C02027 1. Cabinet Top 2. Filter Media 3. Access Handle 4. Access Door 5. Cabinet Figure 1...
-
Page 4: Specifications
SPECIFICATIONS ⁄ ″ ⁄ ″ 7 1/4” ⁄ ″ C02026 Dimensions Model Number EZXCAB-0016 EZXCAB-0020 Air Flow (CFM) Range 600-1600 600-2000 “A” 16 3/8” 20 3/8” “B” 13 3/8” 17 3/8” Replacement 3-12 months between changes Media Filter UL Class 2... - Page 5 AIR FLOW RESISTANCE Typical Pressure Drop Model Number Air Flow (CFM) EZXCAB-0016 EZXCAB-0020 Resistance (In. w.c.) 1000 1200 1400 1600 1800 2000...
-
Page 6: Typical Mounting Positions
TYPICAL MOUNTING POSITIONS AIR FLOW AIR FLOW SHEET METAL TRANSITIONS MEDIA AIR CLEANER MEDIA AIR FLOW AIR CLEANER SHEET METAL TRANSITIONS MEDIA AIR CLEANER BASEMENT FURNACE (LOWBOY) COUNTERFLOW FURNACE SPACE SAVER FURNACE Mounted horizontally in return Mounted horizontally in return (HIGHBOY) plenum - just above the furnace duct - just above the furnace... - Page 7 APPLICATION The air cleaners are used in forced air heating, cooling and ventilating systems. The air cleaner should be installed in the system so that all the system air is circulated through the air cleaner. The air cleaner will only remove the airborne contaminants delivered to it.
- Page 8 Turning Vanes If the air cleaner is installed adjacent to a 90° duct elbow, add turning vanes inside the duct to improve the air distribution across the face of the air cleaner (Figure 3). Humidifiers Location of the system humidifier is important to the operation of the air cleaner.
-
Page 9: Physical Installation
SELECT LOCATION FOR THE AIR CLEANER Select a location that is readily accessible for periodic inspection and cleaning. Allow a minimum of 26" in front of the access panel for filter removal. For complete dimensions required, refer to the section entitled SPECIFICATIONS. - Page 10 NOTE: The following is a typical installation of the air cleaner on a high boy furnace. You may have to alter the installation to fit your specific application. 5. Locate the cabinet in the cold air return duct so that all of the return air flows through the unit.
- Page 11 HOW TO MAINTAIN YOUR AIR CLEANER The filter in your air cleaner must be replaced periodically. The frequency of filter replacement is best determined by visual examination. On average, media filters should be replaced every 3-12 months under normal usage. STEPS FOR REPLACING FILTER 1.
- Page 12 Warranty Ten-Year Limited Cabinet Warranty - This Cabinet is warranted to be free from defects in material and workmanship. The Filter Media is not included in this warrwnty. If Defect with the cabinet only appears within Ten years from the date of original installation, whether or not actual use begins on that date, product is warranted.
