Carrier EACA 0014 Manual For Installation, Operation & Maintenance

Electronic air cleaner

Hide thumbs

Table Of Contents

Quick Links

Download this manual

EACA

Electronic Air Cleaner

Sizes 0014, 0020, & 2020

Manual for:

Installation • Operation • Maintenance

CAUTION: Read installation instructions and rules carefully for safe operation.

Exercise the usual precautions when working with high voltage.

Form # EACA-1SI / II EACA-14-1

Date 07/02

Table of Contents

Need help?

Do you have a question about the EACA 0014 and is the answer not in the manual?

Questions and answers

Summary of Contents for Carrier EACA 0014

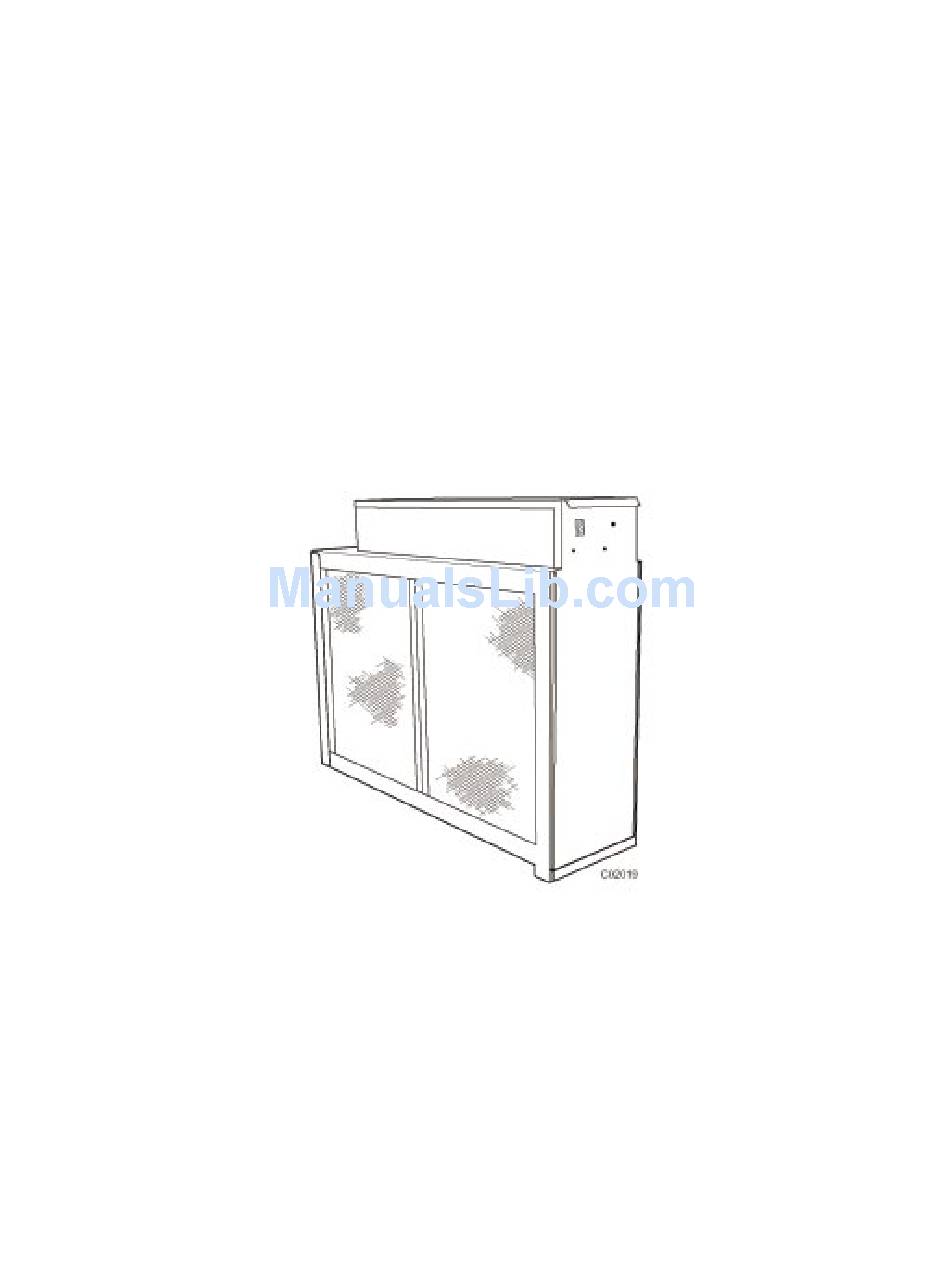

Page 1 EACA Electronic Air Cleaner Sizes 0014, 0020, & 2020 Manual for: Installation • Operation • Maintenance CAUTION: Read installation instructions and rules carefully for safe operation. Exercise the usual precautions when working with high voltage. Form # EACA-1SI / II EACA-14-1 Date 07/02...
Page 2: Table Of Contents
Table of Contents Page Safety Considerations & Introduction Unit specifications Facts you should know about your new Electronic Air Cleaner Regular dusting & "white dust" Ozone Air flow sensor operation High altitude applications Replacing the ionizing wires Common Q & A Maintenance of your Electronic Air Cleaner Removing the cells and prefilter Washing the cells and prefilter(s)
Page 3 NOTE: Read the entire instruction manual before starting the installation. Safety Considerations Improper installation, adjustment, alteration, service, maintenance, or use can cause explosion, fire, electrical shock, or other conditions which may cause personal injury or property damage. Consult a qualified installer, service agency, or your distributor or branch for information or assistance.
Page 4 INTRODUCTION This electronic air cleaner is technically known as a two-stage electrostatic precipitator. The air cleaner is designed to remove airborne particulates, including dust, dirt, smoke, pollen, virus, spores, bacteria and mold, from indoor air. Air movement through the unit is provided by the heating, air conditioning or ventilating system blower.
Page 5: Unit Specifications
UNIT SPECIFICATIONS This air cleaner is easy to install, operate and maintain. Its basic components are the: Cabinet Mounts to existing ductwork; houses the ionizing-collecting cells and prefilters. Ionizing-Collector Cells Collect the dust, dirt and other particulates in the air. They contain the ionizing and collecting sections as described on page 2.
Page 6 FACTS YOU SHOULD KNOW ABOUT YOUR NEW ELECTRONIC AIR CLEANER Dusting and "White Dust" Your new Electronic Air Cleaner will efficiently clean and filter your household air. Unfortunately, it will not eliminate the need for regular dusting of your furniture and belongings. Due to the design of all duct-mounted air cleaners, they can only clean the air that reaches the air cleaner.
Page 7 How the Air Flow Sensor Works (available on specific models) The electronic AFS was designed to provide an efficient and reliable method of controlling the operation of the air cleaner when the dealer is unable to wire the unit directly into the furnace blower. The electronic AFS utilizes a thermistor that heats up to approximately 130°F.
Page 8 High Altitude Operation Because the air is less dense at higher altitudes, there is a possibility of nuisance arcing. The homeowner can quickly and easily correct this condition. 1. Turn the unit OFF. Disconnect cord or turn off circuit breaker. 2.
Page 9: Replacing The Ionizing Wires
REPLACING THE IONIZING WIRES Ionizing wire breakage is minimal because of the constant tension design and fixed location of the ionizing wire supports. When an ionizing wire breaks, the efficiency of the Electronic Air Cleaner will decrease slightly. However, the unit will continue to operate with broken ionizing wires as long as the broken wires have not caused a short circuit of the unit.
Page 10 Common Questions and Answers Q. Why isn't my air cleaner cleaning my air? A. The air cleaner is most likely working just like it was designed. However, many factors can affect the performance of the unit. Are cold air registers located in the ceiling? If so, it will be difficult for the air flow to carry heavier particulates to the air cleaner.
Page 11 Q. What if I no longer hear any popping or zapping noises coming from my unit? Is it still cleaning the air? A. If the zapping noises stop and the air cleaner is not in need of servicing, then one of two situations has occurred. First, the Electronic Air Cleaner has successfully removed all larger particles from the air and is cleaning microscopic particles which do not cause the zapping noise.
Page 12: Maintenance Of Your Electronic Air Cleaner
MAINTENANCE OF YOUR ELECTRONIC AIR CLEANER WARNING : Handle ionizing-collector cells with care as plates can be sharp and cause injury if not handled properly. WASHING CELLS AND PREFILTERS Regular washing is necessary to ensure proper performance. A thorough washing once every two months will be adequate for most installations. More frequent washing (once a month) may be necessary on some installations (new homes for example) where there is new carpeting, plaster dust, or excessive cigarette smoke (Figure 3).
Page 13 To wash cells and prefilter(s) We suggest that you follow the instructions below to properly and thoroughly clean your collector cells. 1. Place enough hot water in a utility tub to cover the first cell. Dissolve 2 to 4 oz. of granulated automatic dishwasher detergent (not laundry detergent) in the water.
Page 14: Common Troubleshooting Techniques
COMMON TROUBLESHOOTING TECHNIQUES SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION Broken or loose ionizing wire(s) Remove broken or loose wire and replace with new wire Dirty ionizing-collector cell Clean as outlined on page 10-11 Rapid arcing or zapping Damaged or bent collector plates Straighten plates with needlenose pliers or replace entire ionizing- collector cell.
Page 15: Unit Dimensions
UNIT DIMENSIONS - All dimensions in inches (mm) EACA Models Inches MM Inches MM Inches MM Inches MM Inches MM Inches Inches MM 0020 24-1/4 17-7/8 20-15/16 531 22-1/2 572 24-7/8 7-1/8 181 21-7/16 545 0014 20-1/4 13-7/8 16-15/16 429 22-1/2 572 24-7/8 7 1/8...
Page 16 WARNING Only a trained, experienced serviceman should install this electronic air cleaner. A thorough checkout of the unit installation s h o u l d b e c o m p l e t e d b e f o r e u n i t operation.
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS (Specifications subject to change without notice.) MODEL NUMBER-EACA 0014 0020 2020 DIMENSIONS (IN) 20 1/4 x 7 1/8 x 24 7/8 24 1/4 x 7 1/8 x 24 7/8 24 1/4 x 7 1/8 x 21 3/8 UNIT COLOR American Sterling American Sterling American Sterling...
Page 18: Typical Mounting Positions
TYPICAL MOUNTING POSITIONS Shaded illustrations are for positioning use only AIR FLOW AIR FLOW SHEET METAL TRANSITIONS AIR CLEANER AIR CLEANER AIR FLOW SHEET METAL TRANSITIONS AIR CLEANER BASEMENT FURNACE BASEMENT FURNACE (LOWBOY) (LOWBOY) COUNTERFLOW FURNACE COUNTERFLOW FURNACE SPACE SAVER FURNACE SPACE SAVER FURNACE Mounted horizontally in return Mounted horizontally in return...
Page 19 PLANNING THE INSTALLATION Application The air cleaners are used in forced air heating cooling and ventilating systems. The air cleaner should be installed in the system so that all the system air is circulated through the air cleaner. The air cleaner will only remove the airborne contaminants delivered to it.
Page 20 Atomizing Humidifiers If an atomizing humidifier is installed, it must be mounted downstream of the air cleaner. 1. Mount the humidifier as far downstream as possible. It is recommended a distance of at least 10 feet to reduce the possibility of excessive arcing as water droplets pass through the Electronic Air Cleaner.
Page 21 SELECT LOCATION FOR AIR CLEANER Remember to select a location that is readily accessible for periodic inspection and cleaning of this air cleaner. Allow a minimum of 24" clearance in front and 12" clearance above the air cleaner for component removal and service space.
Page 22 INSTALLATION CAUTION: Only a trained, experienced serviceman should install this electronic air cleaner. The power supply should be removed before installation. To remove the power supply, remove the two (2) screws (See Figure 7) in the top front of the cabinet. Remember to keep this hardware for reinstallation of the power supply when the air cleaner installation is complete.
Page 23 7. Locate the cabinet in the cold air return duct so that all of the return air flows through the unit (Figure 6). If the furnace and air cleaner openings are different, use a transition (Figure 4). 8. Mounting holes are provided for ductwork attachment (Figure 7).
Page 24 ELECTRICAL INSTALLATION All wiring must comply with applicable local and national codes. CAUTION: Be sure all incoming power is OFF before beginning any procedures. CAUTION: The following instructions are for use by qualified personnel only. WARNING: The following procedures will expose hazardous live parts. Disconnect power between checks and proceed carefully.
Page 25 SYSTEM CHECKOUT WARNING: The following procedures should be conducted by a qualified HVAC contractor or repair person ONLY. These procedures will expose hazardous electrically energized charged components. Disconnect power between checks and proceed carefully. 1. The HVAC system blower should be turned OFF. 2.
Page 26 TROUBLESHOOTING CAUTION: • These procedures should only be attempted by a qualified HVAC technician or electrician. • Risk of personal injury could occur by attempting to troubleshoot or repair this unit by untrained persons. • Exercise the usual precautions when working with high voltage. •...
Page 27 PRIMARY CIRCUIT WITH FURNACE BLOWER OPERATING If there is supply line voltage at the connections and no input voltage to the power supply, the outage can be located by checking operation of the safety switch and the interconnecting wiring with a multimeter. Refer to Circuit Diagram, (Figure 9) to check operation of the switches.
Page 28 SECONDARY CIRCUIT IONIZING-COLLECTING CELL The cell is electrically energized through a contact terminal located at the top center of the cell. The ionizing wires and alternating collector plates are electrically charged while the interleaving plates are grounded. If the space between the charged and grounded plates is bridged with conductive or semi-conductive material, a short circuit develops.
Page 29 CHECKING THE POWER SUPPLY If the output light remains out with the collector cells removed from the cabinet, the power supply is defective. Specific problems on the power tray assembly can be isolated by using a multimeter and high voltage probe to check the output voltages.
Page 30 9. If no voltage is present, remove the second cell. Install cell number one and measure voltage as described above. If voltage is present, the second cell, which is now out of the cabinet, is shorted. Refer to Table 1 on page 12.
Page 31 TROUBLE SHOOTING THE DUCT MOUNT ELECTRONIC AIR CLEANER Is the unit operating? Is the furnace blower on? Is input AC power available? Is the safety interlock system OK? Is ON/OFF switch working? Is red light on? Is cell dirty or defective? Are contact boards OK? Is the power supply wiring OK? Is power supply defective?
Page 32 WARNING: The following steps will expose hazardous live parts. Disconnect power between checks and proceed carefully. 1. Replace any blown fuses and reset any tripped breakers. 2. Repair or replace any loose wires or bad connections. 3. Inspect AFS for proper location and operation. 1.
Page 33 EACA...
Page 34 EACA PARTS LIST REF. DESCRIPTION NO.. 1. Power Tray Assembly (W/ AFS) 120V 1A. Power Tray Assembly (W/ AFS) 240V 1B. Power Tray Assembly (W/O AFS)120V 2. High Frequency Power Supply 3. Electronic Air Flow Sensor (Optional) 4. ON/OFF Switch 5.
Page 35 Warranty Two-Year Limited Warranty - This Product is warranted to be free from defects in material and workmanship. If Defect appears within Two years from the date of original installation, whether or not actual use begins on that date, product is warranted. If product installation criteria meets this standard, a new or remanufactured part, at the manufacturer’s sole option, to replace any defective part will be provided without charge for the part itself;...
Page 36 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Form No. EACA-1SI / IIEACA-14–1 Catalog No. 03EA-CA0 Printed in U.S.A. 7-02 Replaces: New...
