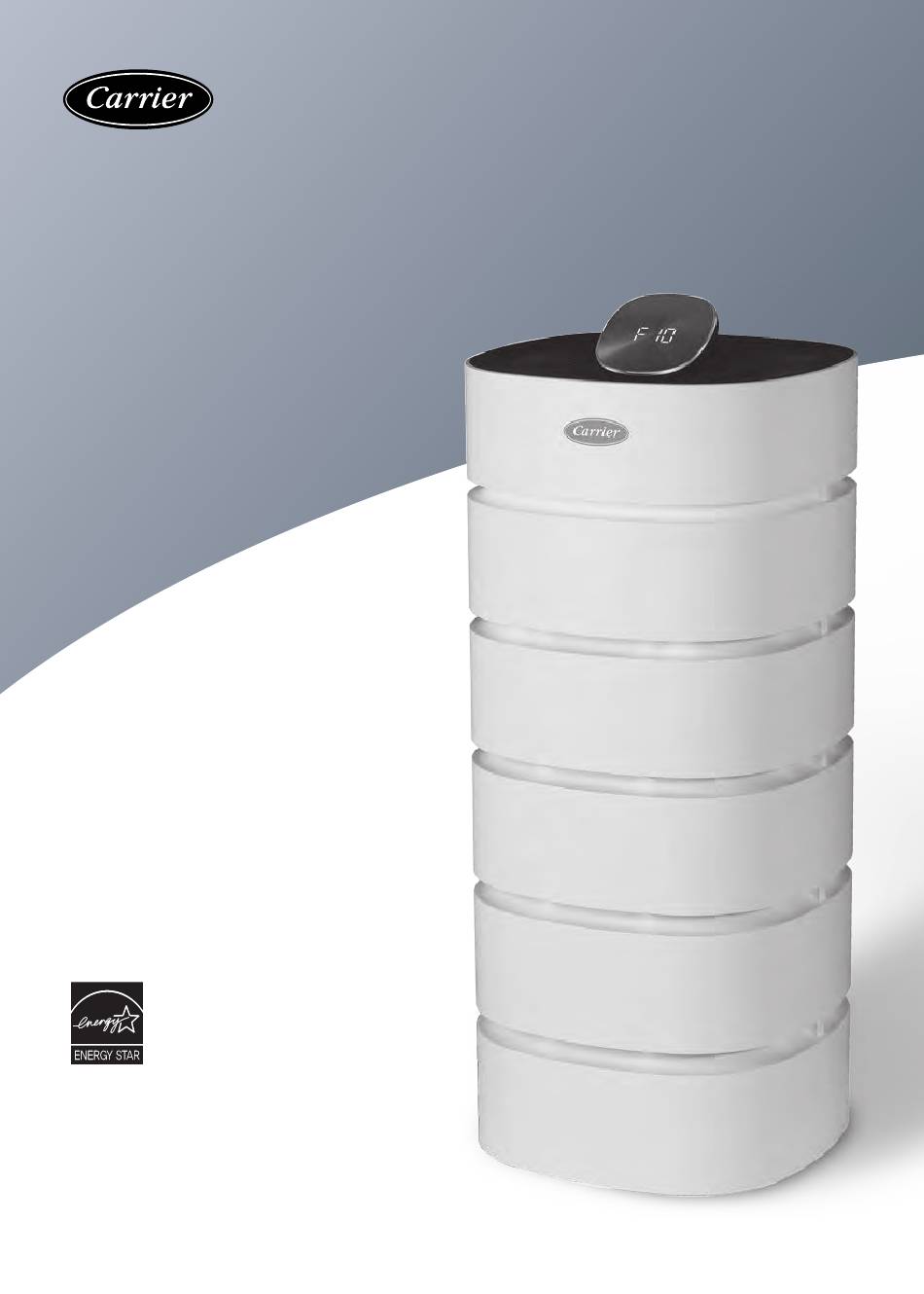

- Page 1 Please read the contents carefully before use. This user guide contains the product warranty. AIR PURIFIER AND SMART AIR PURIFIER | AIR PURIFIER | User Manual Air Purifier Models RMAP-ST | RMAP-XL Smart Air Purifier Models RMAP-SST | RMAP-SXL...
- Page 2 Use Smart Auto Mode to allow the air purifier to automatically adjust fan speeds based on the air quality level. Smart Features Connect Smart Wi-Fi® models with the Carrier® Home app so you can manage your air purifier from anywhere by integrating with Hey Google or Alexa for voice control.* Note Functions and specifications may differ depending on the model.
-
Page 3: Table Of Contents
Table of Contents Before Using Safety Precautions................2 What's In the Box ................4 Product Description............... 5 Product Setup Preparation for Setup/Use ............9 Smart Air Purifier Setup/Connection ........11 How to Operate Product Operation ................12 Indoor Air Quality Indications and On-Screen Codes ................15 Care and Maintenance ..............16 Things You Should Know... -
Page 4: Safety Precautions
Table of Contents Read these instructions thoroughly for the safety of users and to prevent property damage. Indication Description Indicates that there is a possibility of death or serious injury in case of violation of the instructions. WARNING Indicates that there is a possibility of injury or material damage in case of violation of the instructions. - Page 5 Initial Setup WARNING Plug the product into an outlet. Do not press the product up against the wall plug. • Do not extend the power cord at will. • Do not use with a power strip as it may cause electric shock or fire. Leave at least 12 inches (30 cm) between wall and product.
-
Page 6: What's In The Box
What's in the Box AUTO • • • • • • – – • • Display Indoor Air Remote for Quality Smart Air Purifier Indicator Air Outlet models only Control Panel Filter Air Inlets Bottom Base Optional casters included Note Product features and specifications may vary depending on the model. -
Page 7: Product Description
Product Specifications Height Depth Width Air Purifier Air Purifier XL Smart Air Purifier Smart Air Purifier XL Model RMAP-ST RMAP-XL RMAP-SST RMAP-SXL Power 120V, 60Hz, 1-phase Wi-Fi® Remote Control 13.7" W x 13.7" D x 26.5" H 13.7" W x 13.7" D x 31.5" H 13.7"... - Page 8 Filter Detail ③ Carbon Filter ② HEPA Filter ① Pre-Filter Model: RMAPFIL-HST Filter Type Function ① Pre-Filter Filters large dust particles, smoke, pet dander and pollutants. (microfiber net) Captures over 99.97% of particles sized 0.3 microns including pollen ② HEPA Filter and other allergens.
- Page 9 Display Smart Auto Mode Sleep Mode Timer Filter Replacement Indicator LED Indoor Air Quality Indicator Wi-Fi Indicator (Smart Air Purifier only) Control Panel Turbo Control Panel Descriptions Increase the timer and fan speed Sleep Sleep mode / Timer setting value LED ON/OFF &...
- Page 10 Remote Control (Smart Air Purifier only) Remote Control Buttons Decrease the timer and Power ON/OFF Safety lock • fan speed setting value Smart automatic AUTO Timer Sleep mode operation Increase the timer and Confirm your timer LED ON/OFF fan speed setting value setting ( Off cycle lasts 6 hours) Remote Control Battery...
-
Page 11: Preparation For Setup/Use
• Be sure to unplug the unit before removing the filter packaging. • Remove the plastic packaging from the filter before use. CAUTION • Keep plastic packaging away from children as it may cause suffocation. How to Prepare/Change the Filter •... - Page 12 Replace filter cover. ► Insert the cover into the fixed groove at the bottom of the product. ► Slide the cover forward so that the cover fits into the top grooves. Fixed groove Cover-positioning at bottom groove at top Place purifier in desired location and Hold the top cover of the product with plug into wall outlet.
-
Page 13: Smart Air Purifier Setup/Connection
See list of remote access features below, along with other control access capabilities. Make sure you have completed the filter preparation steps from page 9 before continuing. Skip the app setup step and go to next page if you have RMAP-ST or RMAP-XL. Note Remote Access Features from App •... -
Page 14: Product Operation
Normal Operation When the air purifier turns on, the sensor is initialized and the display shows during initialization, and the LED light sensor will change Note colors. Press the button to turn on. ► The previously selected operation mode will be displayed. - Page 15 Turbo Fan Operation Turbo mode allows the room's air to be filtered faster. Press the button to turn the product on. Set Turbo Fan Operation by pressing the buttons on the control panel simultaneously for three seconds. If you press the button on the control panel (or on the Remote Control), the fan speed will change to level 18, and Turbo Fan Operation will stop.
- Page 16 Safety Lock Function You can set the safety lock function so that children cannot operate the product. If you press the button (or the button on the Remote Control) for more than three seconds while the product is on, the display shows and the Safety Lock function is set.
-
Page 17: On-Screen Codes
Indoor Air Quality (IAQ) Indicator • You can check the indoor air quality in real time by using the indoor air quality indicator. This indicator appears as a light around the outer edge of the display monitor. • The indoor air quality is displayed based on the density of fine particles and VOC density being sensed by the unit. -
Page 18: Care And Maintenance
How to Clean the Product • Unplug the product before cleaning. • Clean the air purifier once or twice a month for optimal function. Note • In areas with high levels of dust, it is recommended to clean the air purifier more frequently. - Page 19 Cleaning the Dust Sensor Power off and unplug unit. Hold the top cover of the product Grasp the filter cover hole on the rear with both hands and pull up. and and pull cover out and then up to remove and access filter. Filter cover hole Remove the cover of the dust sensor...
-
Page 20: Troubleshooting
Troubleshooting Symptom Check Solution Confirm the Power is on in your home, then try the Is there a power outage? button again. The air purifier Make sure the plug is fully pushed into the outlet, then try the does not turn on Is the air purifier plugged in? button again. - Page 21 Double check your router settings to make sure you can connect devices? additional smart devices. Check the router settings for a Carrier RMAM and RMAP products are supported by 2.4 Ghz connection. 2.4 GHz Wi-Fi. If you are still having trouble setting up your air purifier and have tried the above troubleshooting steps, reset the air purifier and try again.
-
Page 22: Customer Support
Customer Support For customer assistance please call 1-888-320-0909, or go to CarrierAtHome.com for a complete list of Frequently Asked Questions. For filter replacement, go to CarrierAtHome.com for details. AIR PURIFIER... -
Page 23: Warranty And Legal Notice
Retain this document for your records. Model Number_______________________________________ Serial Number _______________________________________ Date ________________________________________________ The Carrier Air Purifier and Smart Air Purifier models carry a one-year warranty from the date of purchase. See warranty card for additional details. Legal Notice FCC Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - Page 24 1-888-320-0909 01-811-20534-01 2/2022 ©2022 Carrier. All Rights Reserved. Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations. Third-party trademarks and logos are the property of their respective owners.
