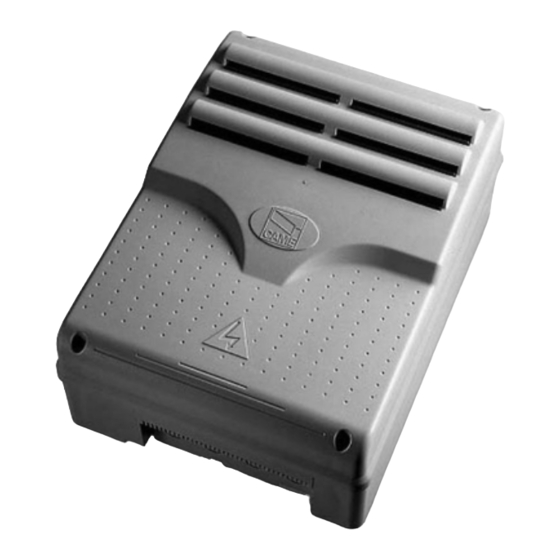

ZLJ24
INSTALLATION MANUAL
FA01081-EN
EN English

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZLJ24 and is the answer not in the manual?

Questions and answers

Related Manuals for CAME ZLJ24

Summary of Contents for CAME ZLJ24

  • Page 1 Control panel Control panel FA01081-EN for 24 V gearmotors for 24 V gearmotors ZLJ24 EN English INSTALLATION MANUAL...
  • Page 2 Any other use is dangerous. CAME S.p.A. is not liable for any damage caused by improper, wrongful and unreasonable use. • Before installing the control panel, make sure that the gui-...
  • Page 3 will cease to be effective. • All maintained-action switches that are connected to the control panel must be positioned so that the maneuvering area is completely visible from the switches, yet far enough away from any moving parts. • Make sure that the operator has been properly adjusted and that any associated safety and protection devices, as well as the gearmotor's manual release, are working properly.
  • Page 4 All wiring connections are quick-fuse protected. Intended use Model Operator ZLJ24 AMICO - AXO - F4000 - FAST - FERNI - FROG - FROG J - MYTO Any installation and/or use other than that specified in this manual is forbidden. Technical data...
  • Page 5 Description of parts Transformer 14. Gearmotor terminals Power supply on warning LED 15. Encoder terminals Display 16. Power supply terminals Programming buttons 17. Line fuse Display-brightness adjusting trimmer 18. Motor fuse Programming warning LED 19. Electric-lock fuse Memory roll card slot 20.

  • Page 6: Installation

    Dimensions APRE CHIUDE INSTALLATION Cable type and minimum section cable length Connection < 20 m 20 < 30 m Control panel power-supply 3G x 1.5 mm 3G x 2.5 mm Motor power supply see the corresponding operator-manuals Signaling devices 2 x 0.5 mm2 Command and control devices 2 x 0.5 mm2 Safety devices (photocells)
  • Page 7 Tools and materials Make sure you have all the tools and materials you will need for installing in total safety and in compliance with applicable regulations. The figure shows some of the equipment installers will need. Fastening the control panel Fasten the control panel in a protected area;...

  • Page 8: Electrical Connections

    ELECTRICAL CONNECTIONS Input voltage Terminal board for 24 V AC / DC accessories - Maximum power: 50 W Connecting the electric lock (12V-15W max) 230 V AC 50/60 Hz 10 11 TS E ES 1 2 3 3P 4 5 7 CX CY CZ Connecting the gearmotors that have no limit switch M1 N1 E1 + E - M2 N2 E2 + E - M1 N1 E1 + E - M2 N2 E2 + E -...
  • Page 9 Connecting ENCODER-fitted gearmotors AMICO - AXO FROG J - MYTO M1 - Gearmotor with M2 - Gearmotor with delayed opening. delayed closing. M1 N1 E1 + E - M2 N2 E2 + E - M1 N1 E1 + E - M2 N2 E2 + E - F4000 - FAST FERNI - FROG M1 - Gearmotor with...
  • Page 10 Command and control devices Stop button (N.C. contact). - For commanding the gate to stop while excluding the automatic-closing time cycle. To resume movement, press a button on the control or the transmitter button. & If unused, disable the contact in the [FUNCTIONS] menu → [Total Stop].
  • Page 11 Safety devices Delta Dir/DeltaS 10 11 TS E ES 1 2 3 3P 4 5 7 CX CY CZ 10 11 TS E ES 1 2 3 3P 4 5 7 CX CY CZ 10 11 TS E ES 1 2 3 3P 4 5 7 CX CY CZ 10 11 TS E ES 1 2 3 3P 4 5 7 CX CY CZ Photocells connections (N.C.
  • Page 12 CX CY CZ FA1 FC1 FA2 FC2 UTP CAT 5 RS485 serial connection to the home & building automation system via CRP (Came Remote Protocol). Fit the RSE card only when the mains power A B GND is cut off.
  • Page 13 - increasing or decreasing values. To select a menu item, move using To enter the menu, keep pressed the / arrows and confirm with for at least one second. WWW.CAME.IT FUNZIONI < LINGUA > ENCODER Italiano < REGOLA TEMPI >...
  • Page 14 & IMPORTANT! Start programming from [Motor Type], [No. of Motors], [Total Stop] window on the [FUNCTIONS] menu and [Gate-Swing Calibration] window on the [ENCODER] menu. Menu 1st level Menu 2nd level Options Default [LANGUAGE] [Italiano] / [English] / [Français] / [Deutsch] / [Español] / [English] [Portugues euro]/[Portugues bras] [FUNCTIONS]...
  • Page 15 [CRP Address] [1] …… [32] With systems fitted with several operators and the CRP (Came Remote Protocol) system connection, set an address between 1 and 32 for each control panel. [1200] / [2400] / [4800] / [9600] / [19200] / [38400] /...
  • Page 16 Menu 1st level Menu 2nd level Options Default [Motor Number] [M1+M2] / [M2]; [M1+M2] M1+M2 = gate with two leaves. M2 = gate with one leaf. [FROG-F4024E] / [FROG-J] / [FROG-FL] / [AMICO] / [MYTO] [Motor Type] [FROG-F4024E] [AXO] / [FAST] / [FERNI] / [ATI] Setting the swing-gate operator model associated to a control panel.
  • Page 17 Menu 1st level Menu 2nd level Options Default [M1 Op. SloDwn. [1%] …… [60%] [10%] Setting the starting slow-down of M1 before the opening limit-switch, calculated as a percentage of the complete gate swing. & This function only appears if the [Enc. Slodwn.] function is enabled in the [ENCODER] menu.
  • Page 18 Menu 1st level Menu 2nd level Options Default [Cl. Delay M2] [0 s] …… [60 s] [2 s] M2's closing delay with respect to M1's closing after each closing command. [1 s] …… [60 s] [Preflash T] [5 s] After an opening or closing command, the flashing light connected on W-E, , flashes for the set time before starting the maneuver.
  • Page 19 Options Default [Open. Msg.] WWW.CAME.IT View opening message. To edit the text, press ENTER. Use ENTER to move the cursor forward, and ESC to move the cursor backwards and / to select the letter or figure. Confirm text by pressing the ENTER key for some seconds.
  • Page 20 Entering a new user 1. From the [USERS] menu, select 2. Select [Confirm?(yes)] and press 3. Select the function to associate to [New User]. Press ENTER to confirm. ENTER to confirm. users. Press ENTER to confirm... Funz.Associata Nuovo Utente < Nuovo Utente > <...
  • Page 21 Edit code ... you will be asked to enter a 1. From the [USERS] menu, select 2. Select the user whose code you coderepresenting a transmitter, swipe [Edit Code]. Press ENTER to confirm. want to edit and press ENTER. card or transponder. Attesa Codice <...
  • Page 22 Gate-swing calibration ⚠ Before calibrating the gate-swing, check that the maneuvering area is free from any obstruction and that there are both opening and closing mechanical gate-stops. ⚠ The mechanical gate-stops are obligatory. Important! During the calibration, all safety devices will be disabled except for the PARTIAL STOP one. 1.

  • Page 23: Error Message

    ERROR MESSAGE System Meaning [Encoder - ERROR], [Error!] Broken encoder or wrong connection. [Safety test - ERROR] Safety devices malfunctioning. [Limit-switch - ERROR] Malfunctioning limit-switch contacts [Operating Time - ERROR] Insufficient operating time [Safety - STOP], [C1], [C3], [C4], Malfunctioning safety devices or wrong connection [C7] or [C8] GRAPHIC DIAGRAM OF THE ENCODER'S FUNCTIONS &...

  • Page 24: Final Operations

    DISPOSE OF RESPONSIBLY! REFERENCE REGULATIONS CAME SpA declares that this product complies with the current directives at the time it is manufactured. The contents of this manual may change, at any time, and without notice. CAME S.p.A.
