13. Disconnect the meter wire from the gauge, and attach the gauge by using
mounting bracket. Confirm it is installed firmly, then connect the meter wire
again.
⇒ Refer to each gauge operation manual
14. Connect the switch unit to the control unit and fix the switch unit with
double sided tape. Before attaching it , make sure the surface is clean.
⇒ Refer to 5 -3. Part Names & Dimensions of Switch unit in mm(inches).
15. Set 2 dip switches of the control unit.
Dip switch 1: Setting the buzzer sound ON/OFF.
●
Dip switch 2: Select the opening/ending mode from A or B when the
●
ignition is on/off.
⇒ Refer to 5 -2. Part Names of Control Unit in mm(inches), 7 -6-2. Set the
warning buzzer ON/OFF, and 7 -2-1. Change of Opening mode / Ending mode.

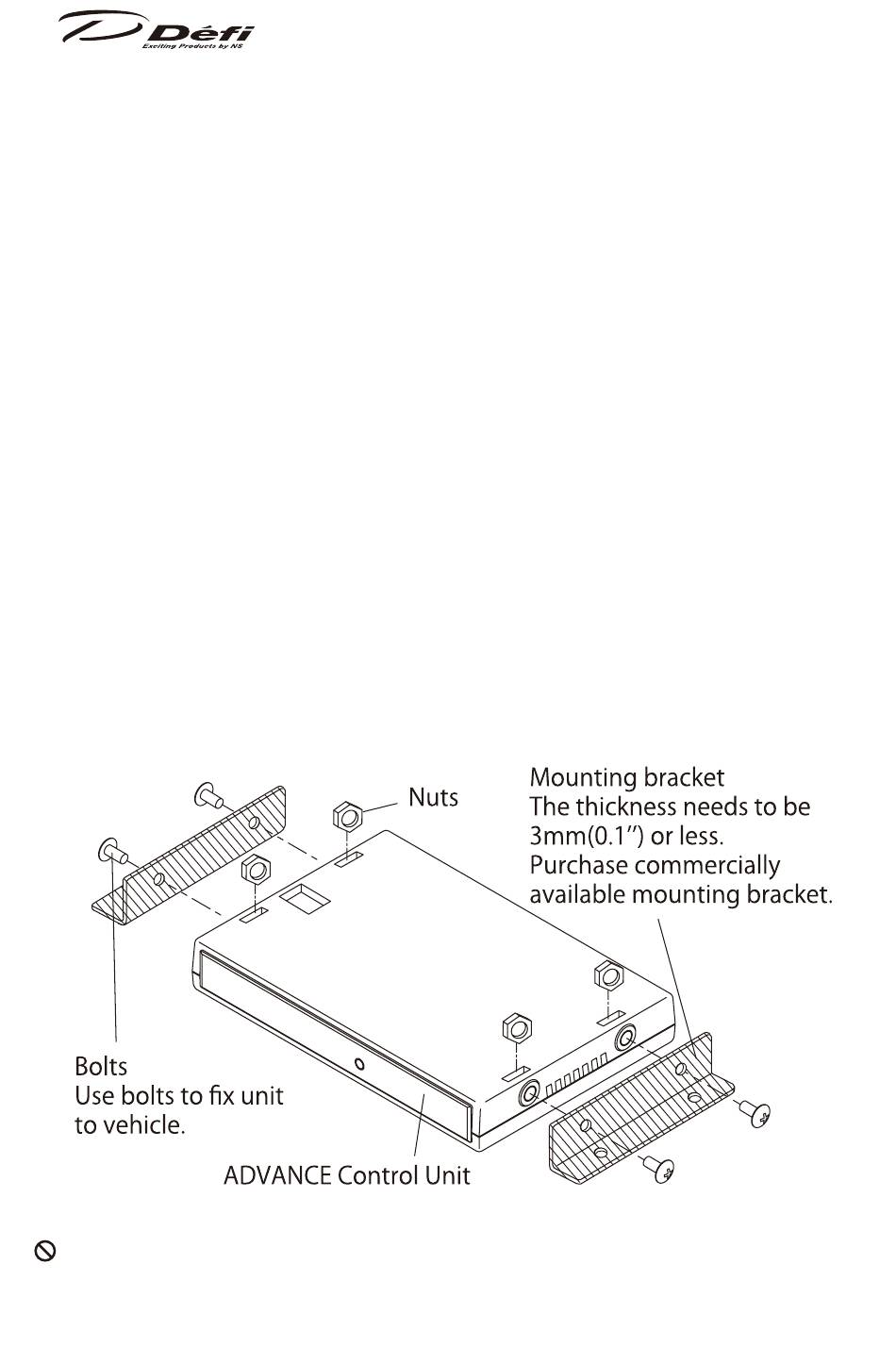

16. After setting is done, fix the control unit with attached nuts and bolts and
commercial mounting bracket.
Confirmation
Gauges, including this product, are not waterproof. Please do not install
gauges near the vehicle floor or in wet areas.
