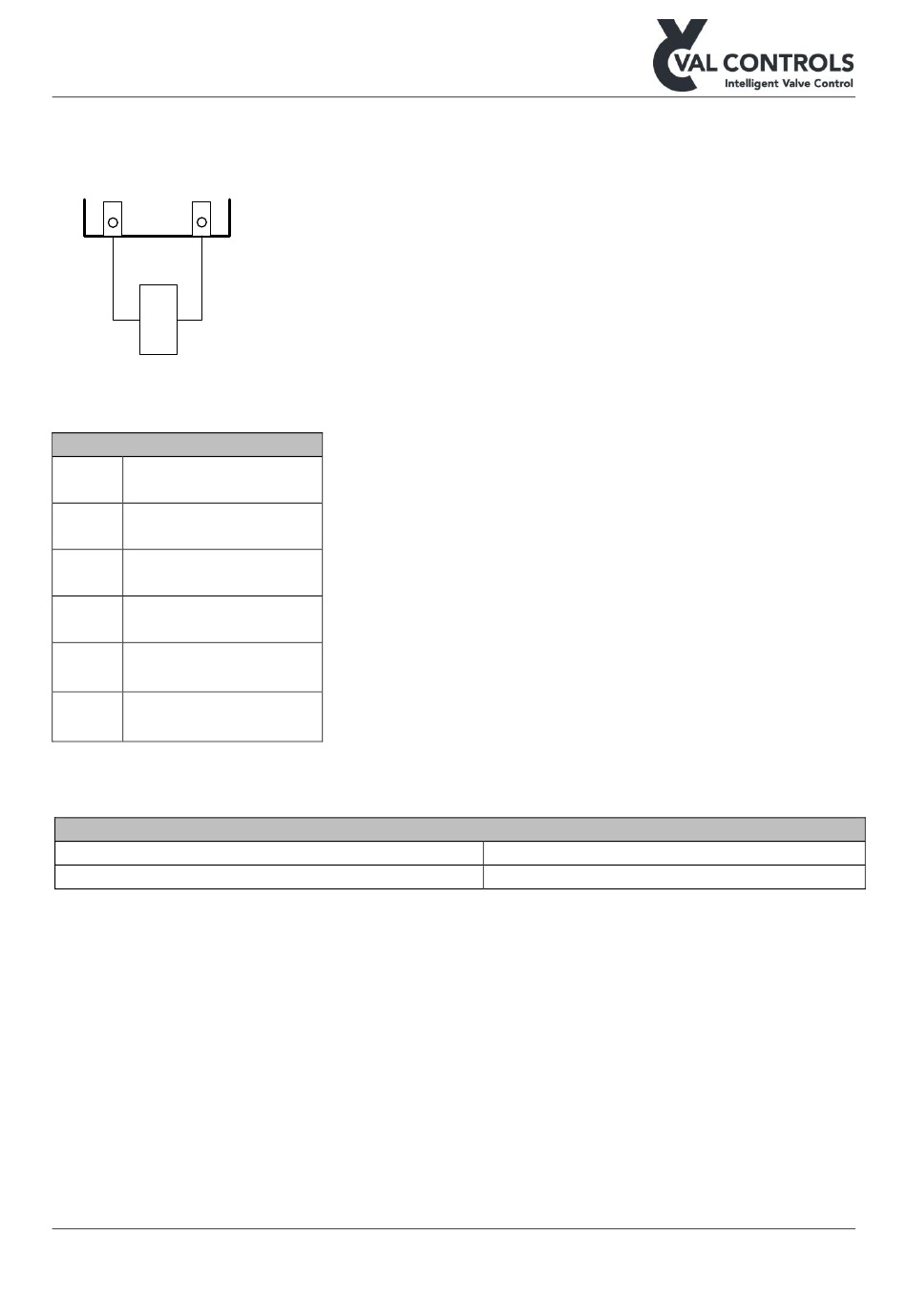

Digital output – DO1, DO2, DO3, DO4, DO5, DO6
3.5
24 VDC digital outputs.
DO
+ -
+ -
3.5.1 Terminals
DO1 27 (+)
28 (-)
DO2 30 (+)
31 (-)
DO3 33 (+)
34 (-)
DO4 36 (+)
37 (-)
DO5 47 (+)
48 (-)
DO6 49 (+)
50 (-)
3.5.2 Electrical specifications
DO – Digital outputs
Max load per digital output
Max load total
Val Controls A/S • Limfjordsvej 3 • DK-6715 Esbjerg N • Tel. +45 7547 0600
DHW-UM-002
Revision: 3
up to 48W at 24VDC
up to 192W at 24VDC
