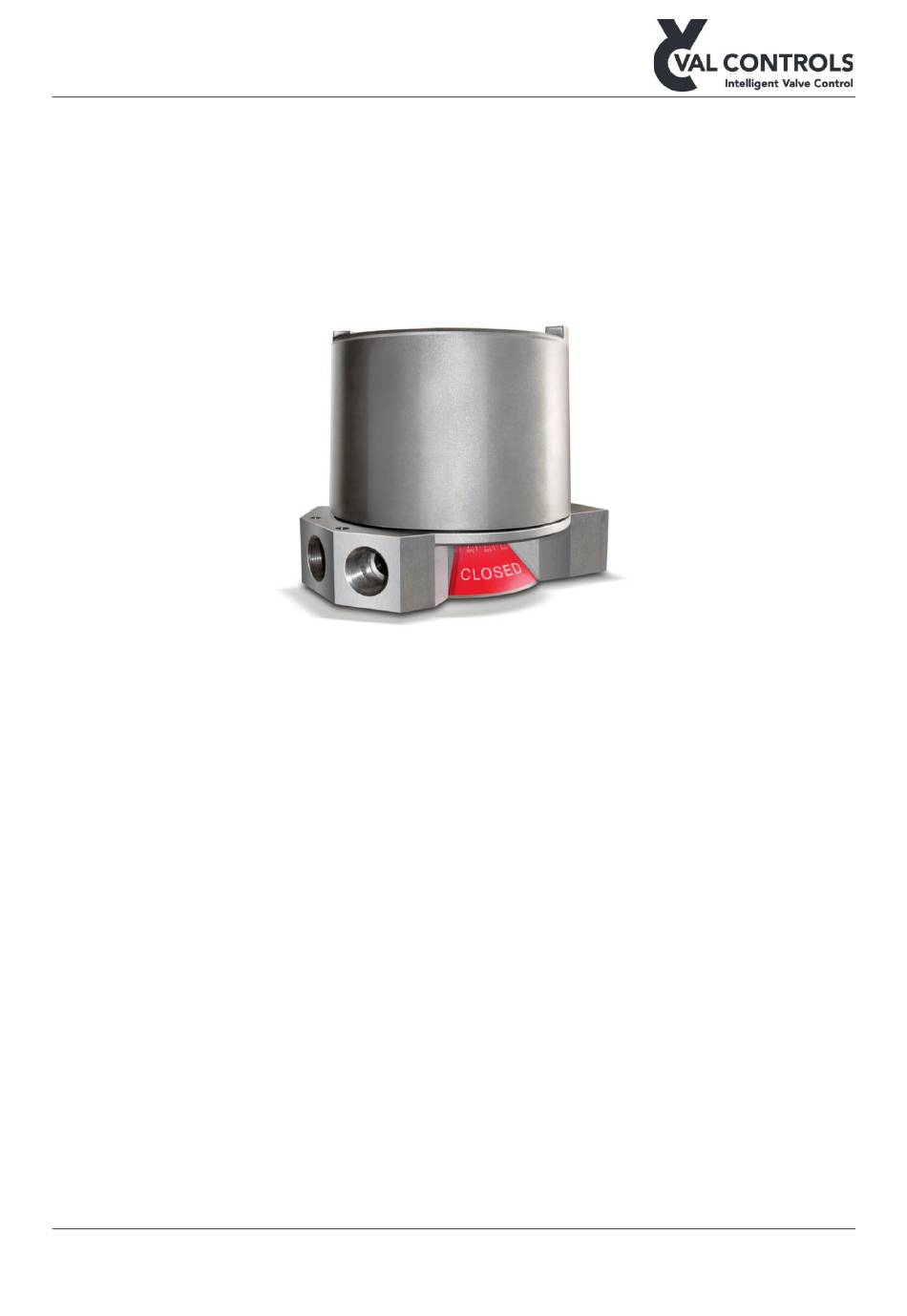

HARDWARE MANUAL
Ixx24-F
Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600
DHW-UM-005
Revision: 6
vc@valcontrols.com • www.valcontrols.com
1/15

Advertisement

Table of Contents
loading

Summary of Contents for Val Controls IHP24-F

  • Page 1 HARDWARE MANUAL Ixx24-F Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com 1/15...
  • Page 2: Table Of Contents

    Electrical specification ....................... 14 4.2 Digital input – DI13, DI14 ......................... 15 4.2.1 Terminals ........................... 15 4.2.2 Electrical specification ....................... 15 Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com 2/15...
  • Page 3: General

    IPC24-F Safety instructions For a safe installation of a Val Controls device, the following must be observed. The module must be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this product as well as all instructions in this manual.
  • Page 4: Communication

    < 0.1% Temperature coefficient 0.015% / 1°C (Warm-up: 10 min) HART (optional) FSK, 1200Hz / 2200Hz 400-800mVpp Galvanic isolated Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com 4/15...
  • Page 5: Modbus

    A maximum of 247 nodes can be connected on the same daisy chain bus. Typical shielding of the RS485 bus cable is done on the master side of the cable. Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com •...
  • Page 6: Foundation Fieldbus

    4 (FB-N) 2.3.2 Electrical specifications FF-Fieldbus FF-Fieldbus - H1 Device Class – Basic Device Interface Termination No internal termination Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com 6/15...
  • Page 7: Main Board

    Device instrument earth terminal shall be connected to instrument earth bar at marshalling cabinet to avoid electromagnetic interference. Instrument earth 3.2.1 Terminal 7 Instrument earth Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com 7/15...
  • Page 8: 4-20Ma Input - Ai1, Ai2

    Cable length 1000 meters Linearity < 0.1% Temperature coefficient 0.01% / 1°C (Warm-up: 10 min) < 100 Ohm Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com 8/15...
  • Page 9: Position Transmitter

    See markings on drawing. Loosen the set screw on the shaft and adjust the arrow so that it moves within the marked area. Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com •...
  • Page 10: Digital Output - Do1, Do2, Do3

    Max load per digital output up to 48W at 24VDC Max load total up to 144W at 24VDC Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com 10/15...
  • Page 11: Digital Input - Di1, Di2, Di3

    44 (-) 3.5.2 Electrical specifications DI – Switch Type Switch Cable length 20 meters Maximum cable resistance 100 Ohm Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com 11/15...
  • Page 12: Sil - Ps1, Do11

    48W @24VDC If PS2 is not used, total load that can be drawn from all DO/DI/AI ports (except DO11) Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com...
  • Page 13: Internal Watch And Sd Card

    Controls for a replacement SD card. Disposal of this product and/or battery shall be in accordance with local environmental laws and regulations. Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com •...
  • Page 14: Alternative Digital Inputs

    4.1.1 Terminals DI12 1 (+) 5 (-) 4.1.2 Electrical specification DI12 Type Switch Cable length 1000 meters Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com 14/15...
  • Page 15: Digital Input - Di13, Di14

    13 (+) 14 (-) 4.2.2 Electrical specification DI13, DI14, DI15, DI16, DI17 Type Switch Cable length 1000 meters Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-005 Revision: 6 vc@valcontrols.com • www.valcontrols.com 15/15...
